DTC P0713: (FLASHING CODE 16) Transmission Fluid Temperature Sensor Circuit High Input (Elbow): Notes

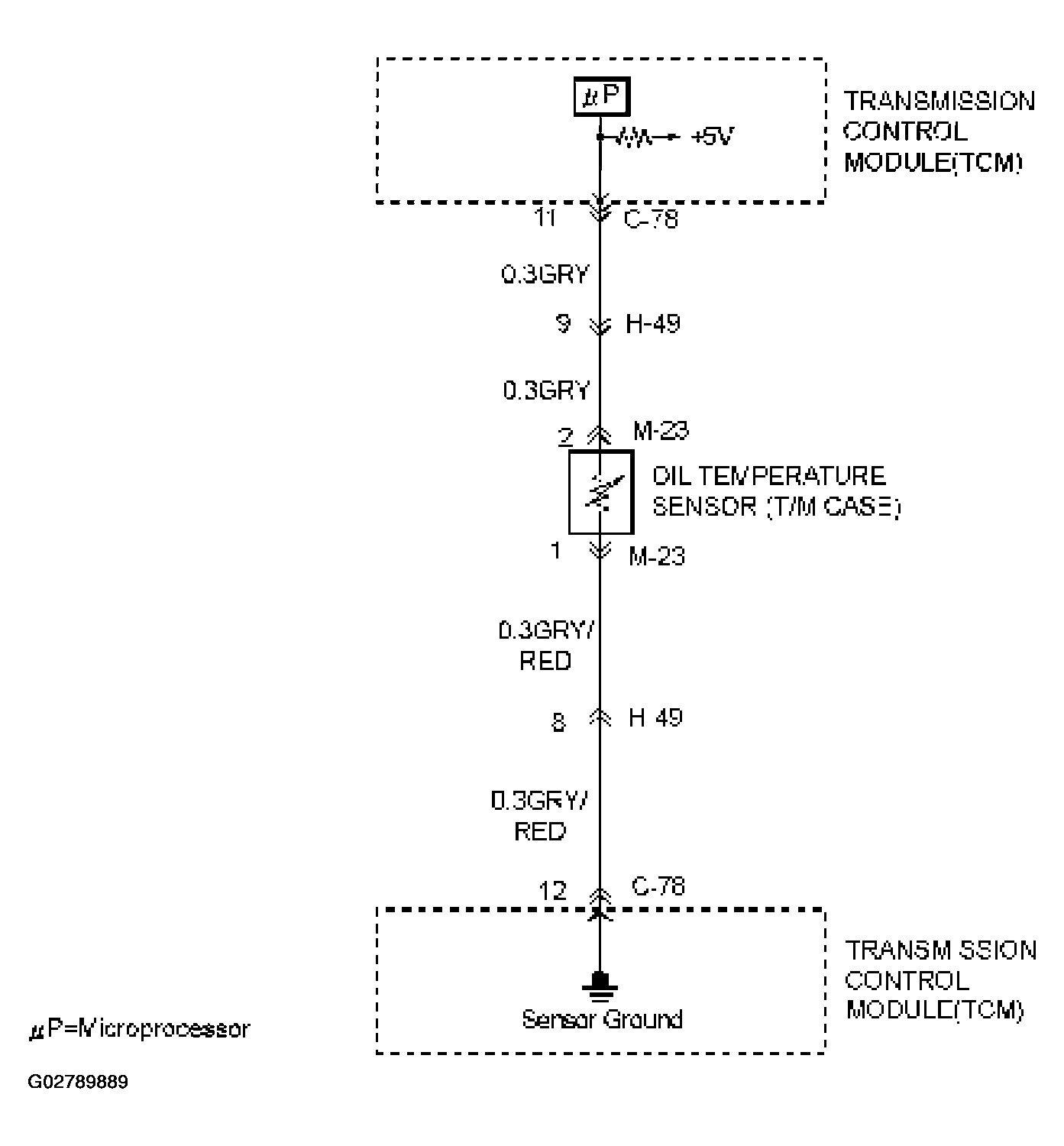

Fig 1: DTC P0713: (Flashing Code 16) Transmission Fluid Temperature Sensor Circuit High Input (Elbow) Wiring Diagram
G02789889Courtesy of ISUZU MOTOR CO.
