Manual Shifting Test
NOTE:
With this test, it can be determined whether the trouble lies within the electrical circuit or is a mechanical problem in the transmission.
- Disconnect TCM connector
Inspect manual driving operation
- Inspect manual driving operation

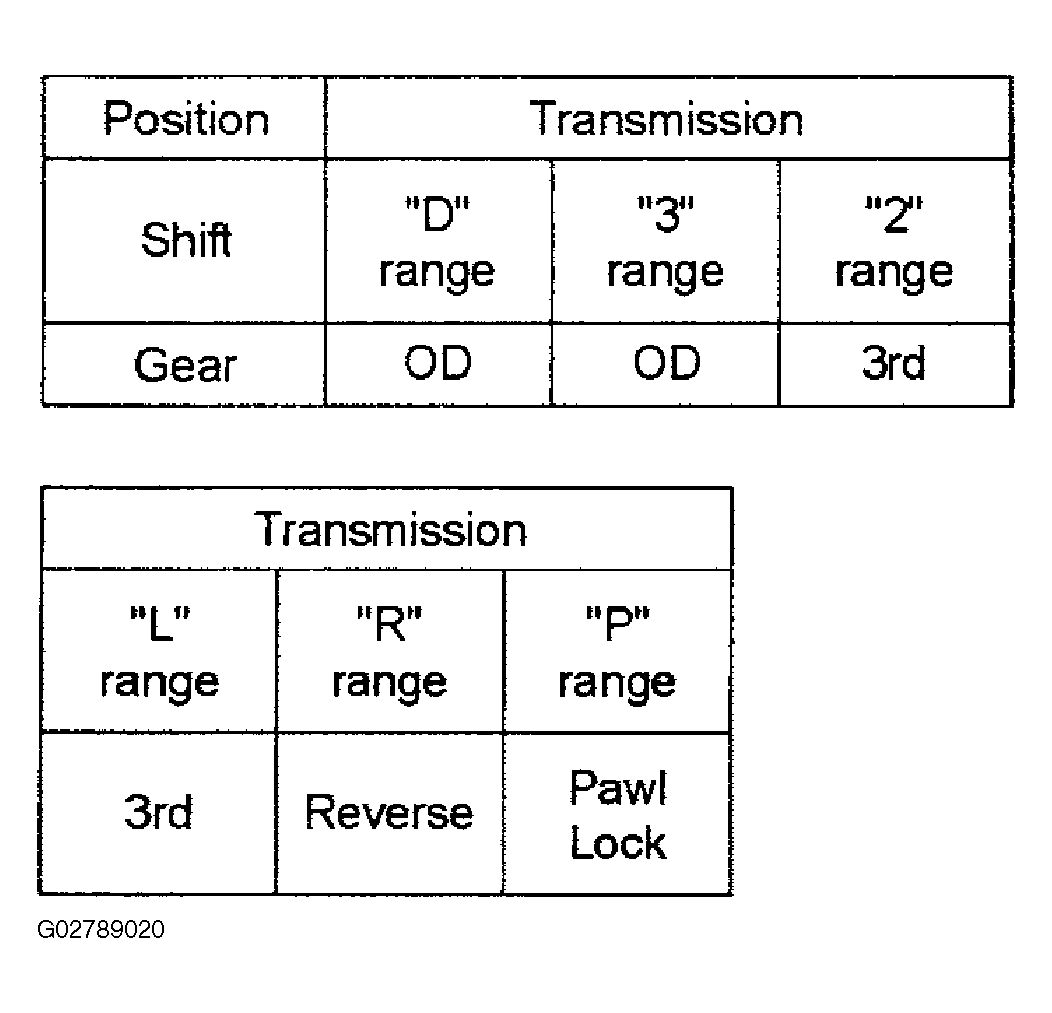

Check that the shift and gear positions correspond with the table.
If the "L", "2" "3" and "D" range gear positions are difficult to distinguish, do perform the following road test.
While driving, shift through the "L", "2" "3" and "D" ranges. Check that the gear change corresponds to the gear position.
If any abnormality is found in the above test, do perform the stall, time lag or gear change tests.
- Connect the TCM connector. With the engine off, connect the TCM connector.
