Upper Link: Installation

  1. Install upper link. Make sure that the upper link is in its correct position.
    NOTE: When mounting upper link, be sure not to use grease bushings or any other nearby part.

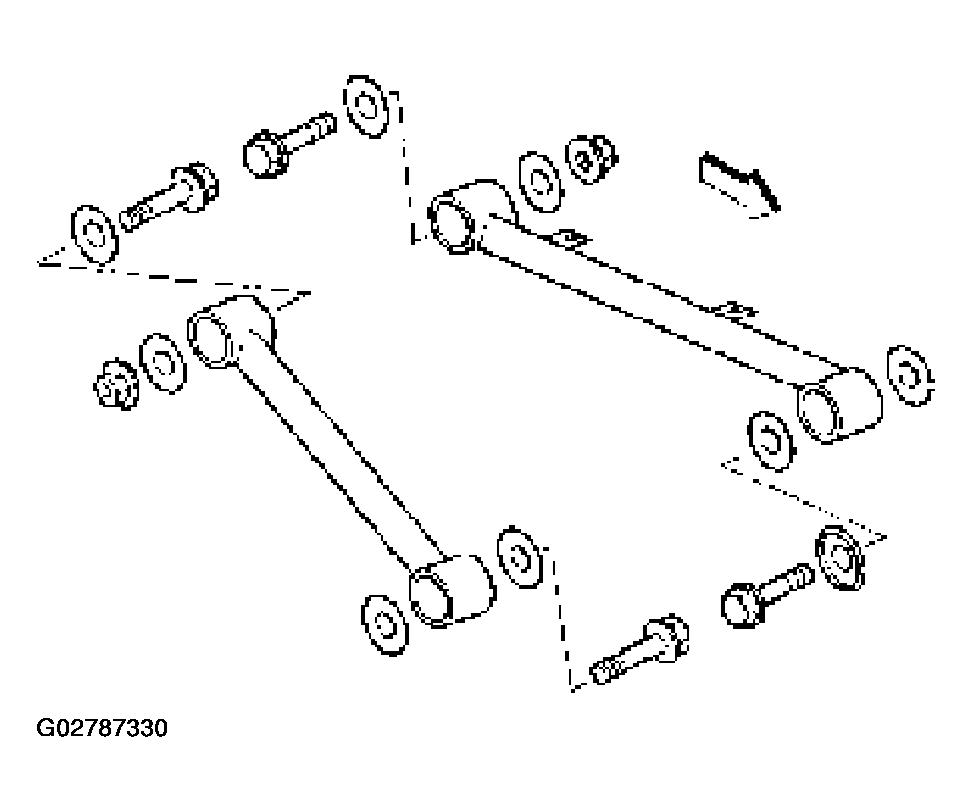

    Fig 1: Identifying Correct Position Of Installing Upper Link
    G02787330Courtesy of ISUZU MOTOR CO.
  2. Install bolt, nut and rubber plate. Tighten the bolts and nuts lightly, then retighten them to the specified torque after the vehicle is at curb height.

    Torque:  137 N.m (101 lb ft)

  3. Install speed sensor cable.
