Stabilizer Bar: Installation

  1. Install rubber bushing.
  2. Install bracket to axle housing and tighten to the specified torque.

    Torque:  25 N.m (18 lb ft)

  3. Install link.
  4. Install nut, then tighten the nut to the specified torque.

    Torque:  50 N.m (37 lb ft)

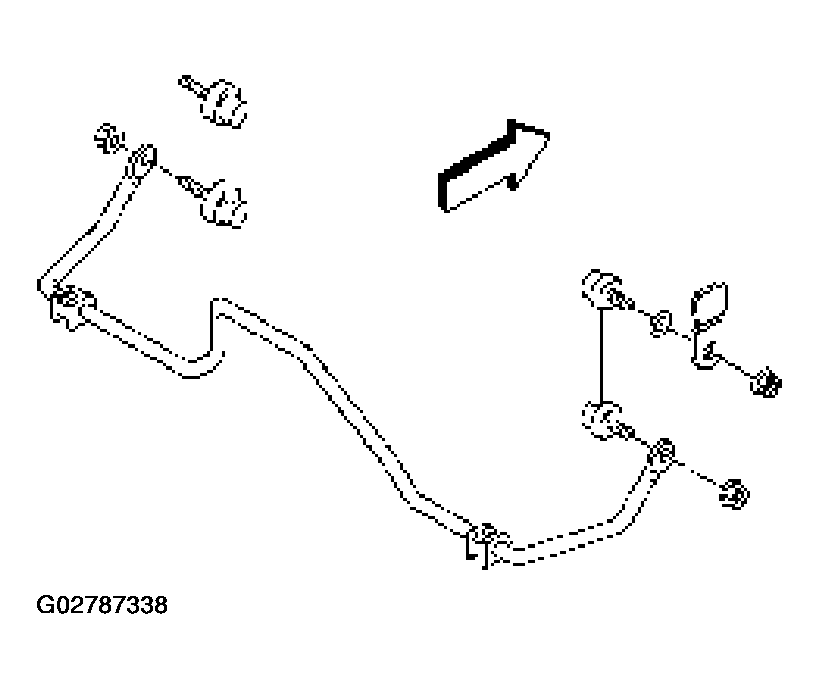

    Fig 1: Identifying Correct Position Of Installing Stabilizer Bar
    G02787338Courtesy of ISUZU MOTOR CO.
