Illustration Arrows

Arrows are designed for specific purposes to aid your understanding of technical illustrations.

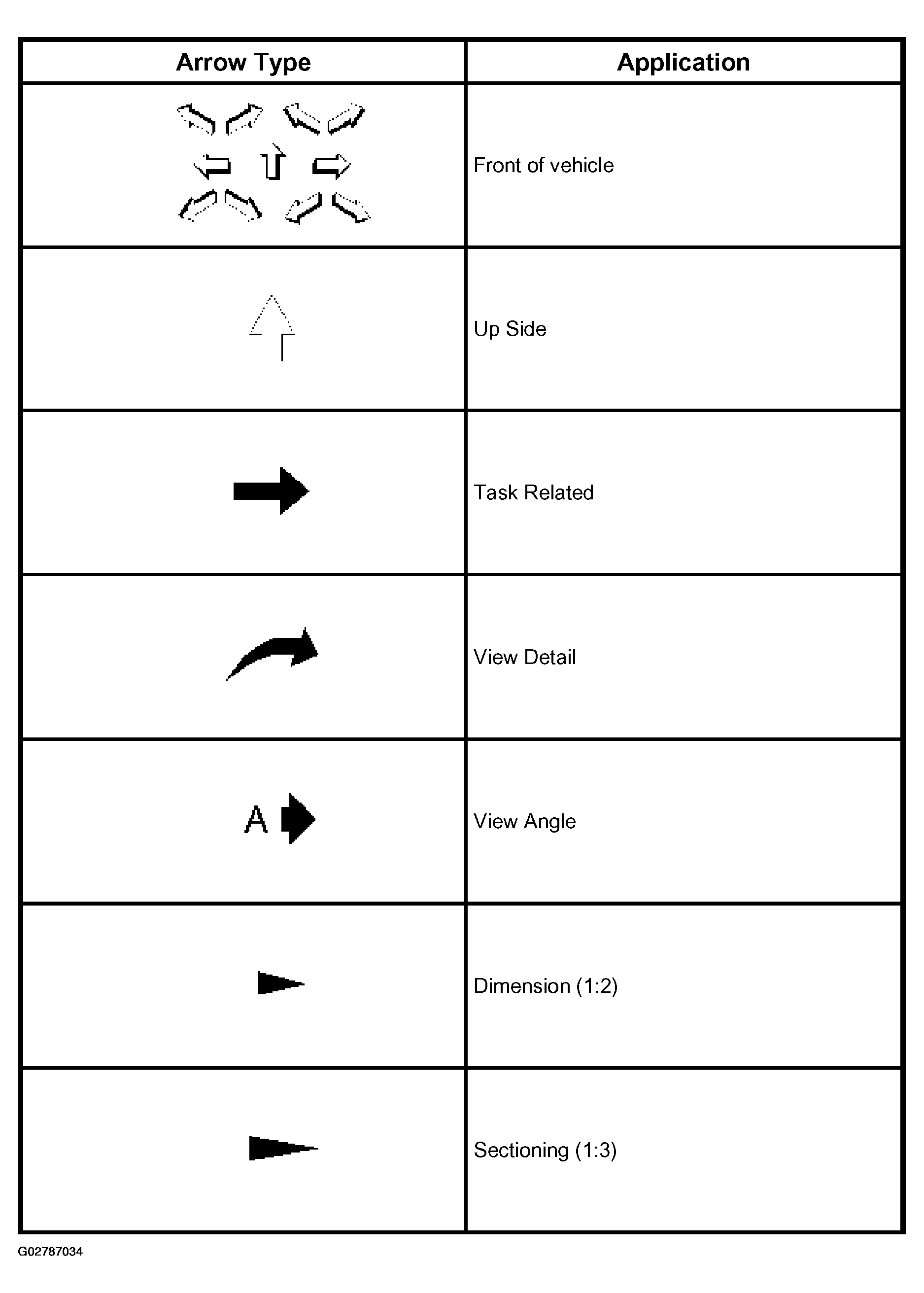

Fig 1: Illustration Arrows Description Chart (1 Of 2)
G02787034Courtesy of ISUZU MOTOR CO.
Fig 2: Illustration Arrows Description Chart (2 Of 2)
G02787035Courtesy of ISUZU MOTOR CO.
