Crankcase Ventilation System Operation

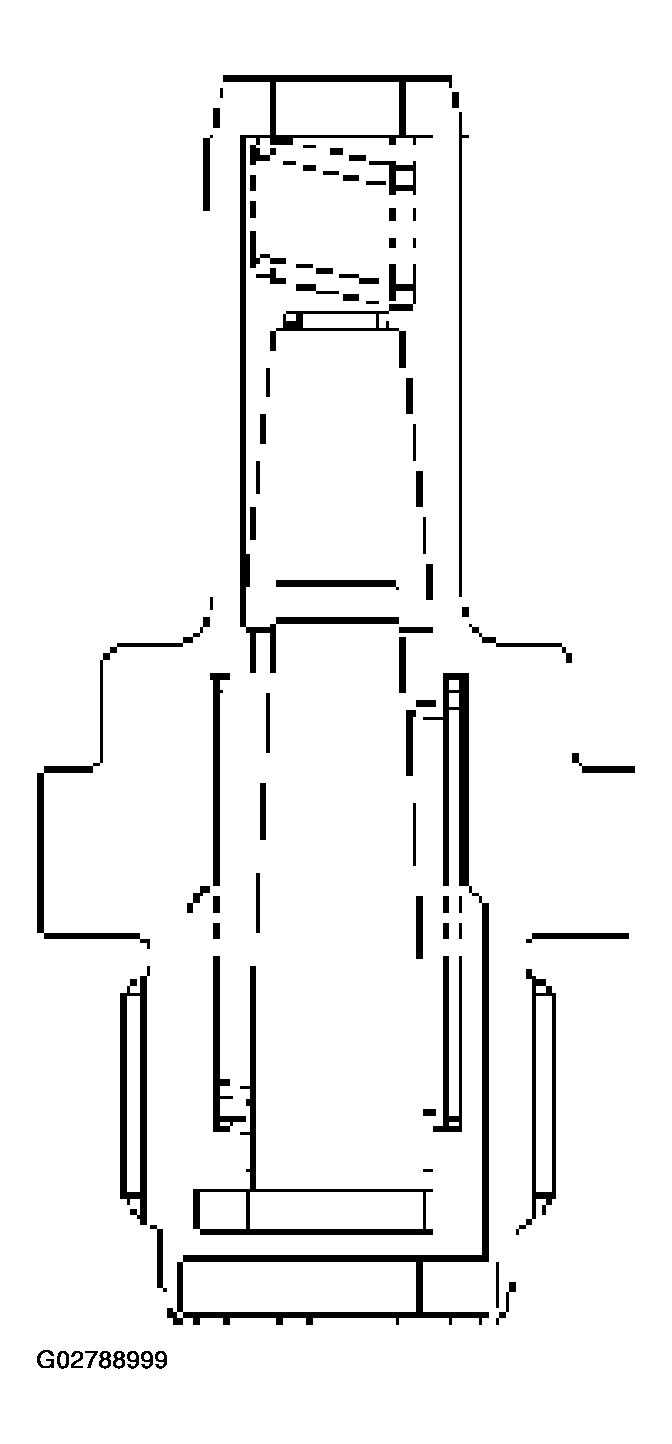

The primary control is through the positive crankcase ventilation (PCV) valve. The PCV valve meters the flow at a rate that depends on the intake vacuum. The PCV valve restricts the flow when the inlet vacuum is highest. In addition, the PCV valve can seal the common chamber off in case of sudden high pressure in the crankcase.

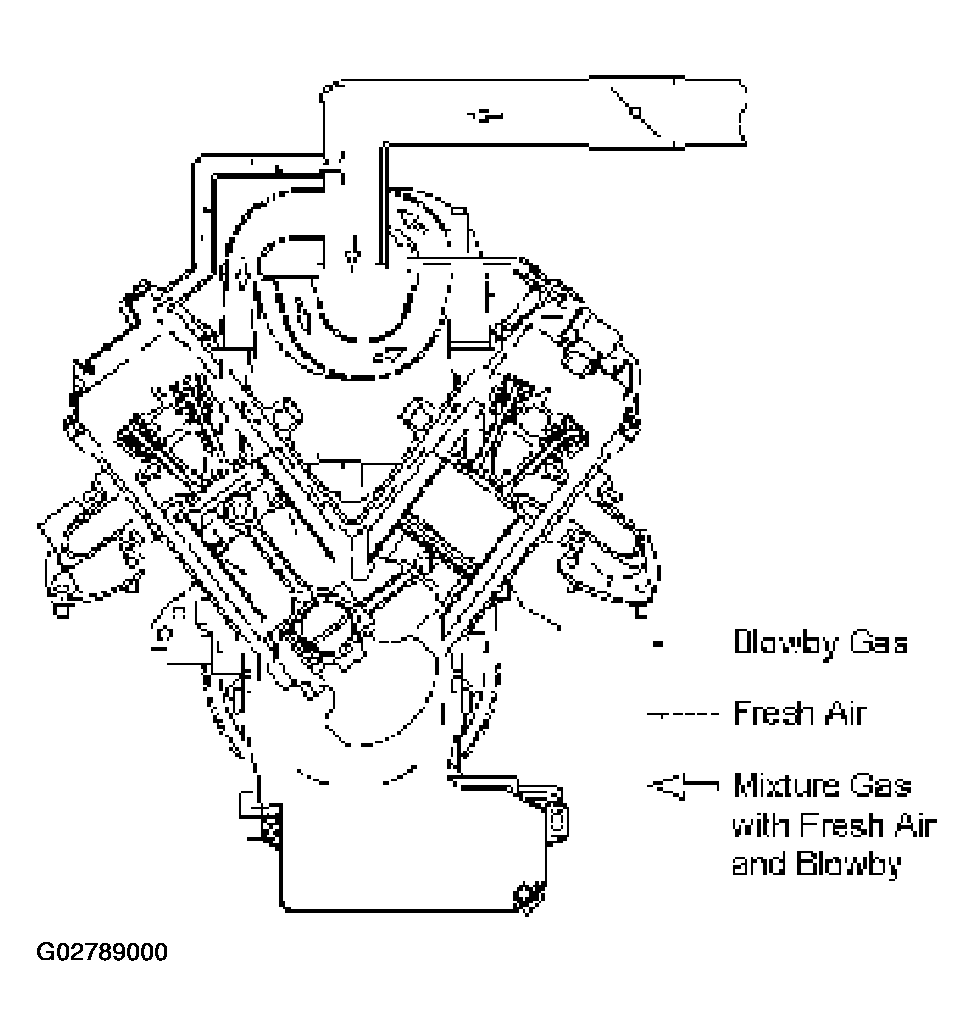

While the engine is running, exhaust fuses and small amounts of the fuel/air mixture escape past the piston rings and enter the crankcase. These gases are mixed with clean air entering through a tube from the air intake duct.
During normal, part-throttle operation, the system is designed to allow crankcase gases to flow through the PCV valve into the throttle body to be consumed by normal combustion.
A plugged valve or PCV hose may cause the following conditions:
- Rough idle.
- Stalling of slow idle speed.
- Oil leaks.
- Sludge in the engine.
A leaking PCV hose would cause:
- Rough idle.
- Stalling.
- High idle speed.
