Engine Hood Lock: Removal

  1. Remove the hood lock control lever.
  2. Remove the inner liner.
  3. Remove the engine hood lock assembly.
    • Apply setting marks (1) to the hood lock assembly and the body prior to removal.

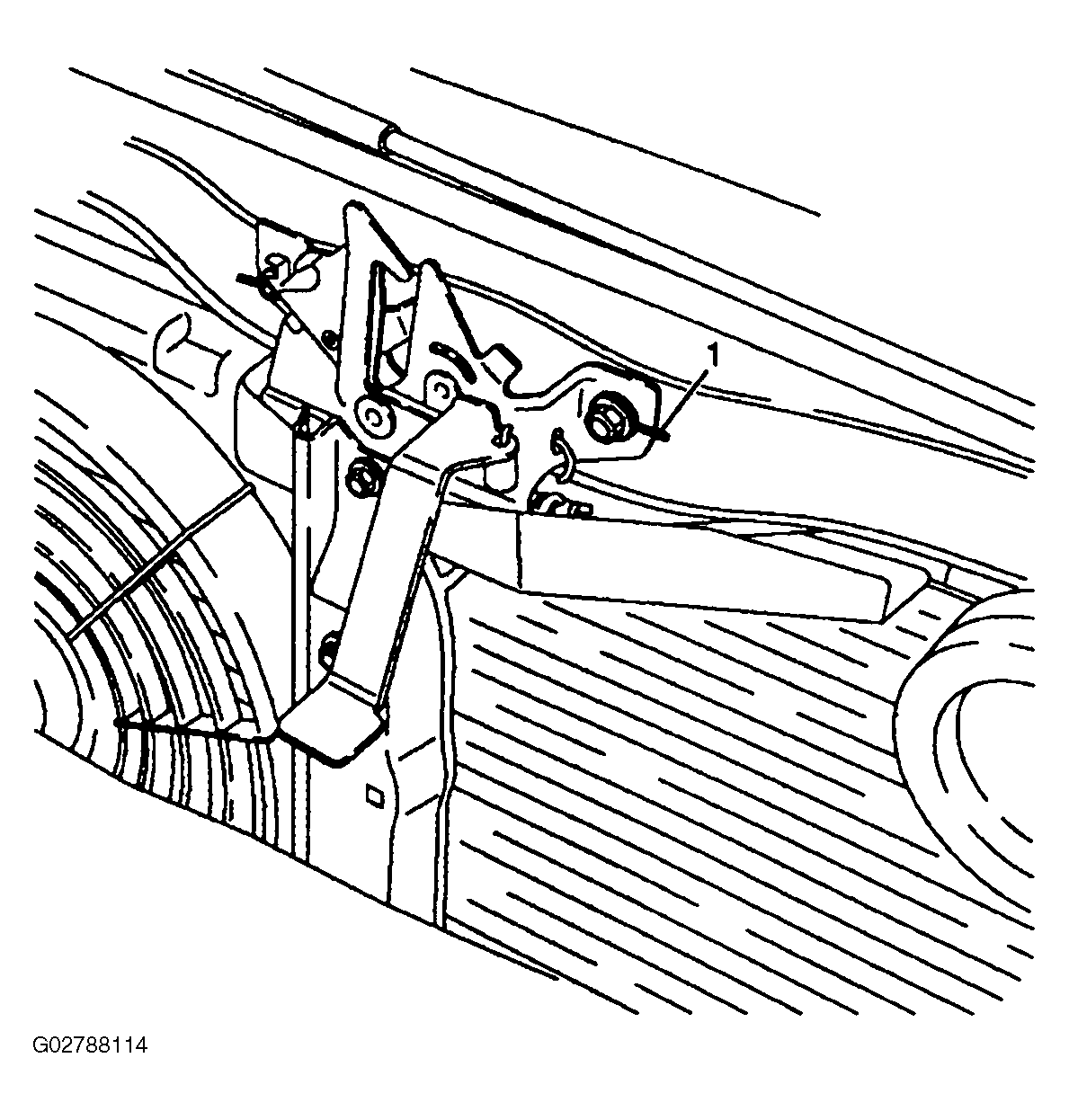

    Fig 1: Removing Engine Hood Lock Assembly
    G02788114Courtesy of ISUZU MOTOR CO.
  4. Remove the control cable.
    • Remove the cable fixing clips from the engine hood lock.
