Front Door Lock Assembly: Removal

  1. Disconnect the battery ground cable.
  2. Remove the pull box.
    • Remove the one fixing screw.

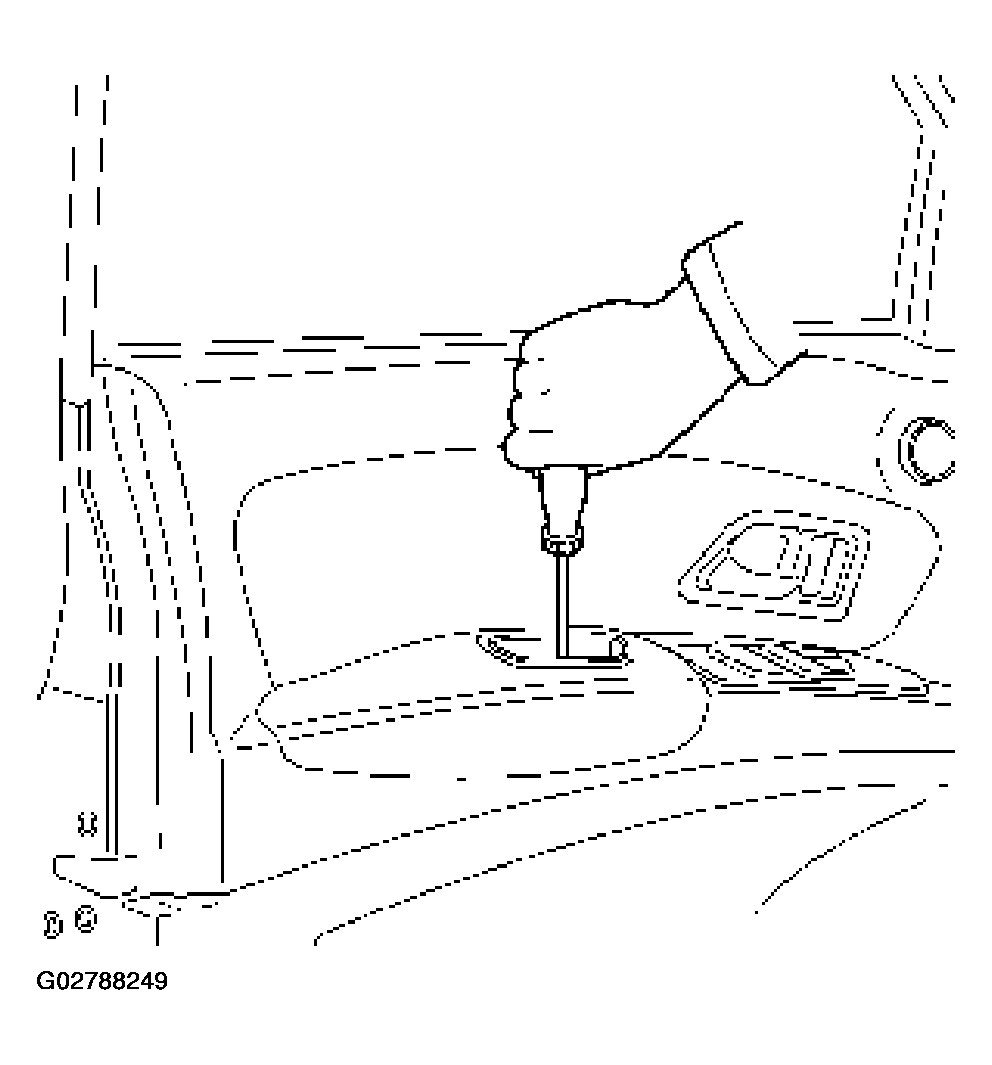

    Fig 1: Removing Fixing Screw
    G02788249Courtesy of ISUZU MOTOR CO.
  3. Remove the power window switch (1).
    • Pry the power window switch and remove the connector.

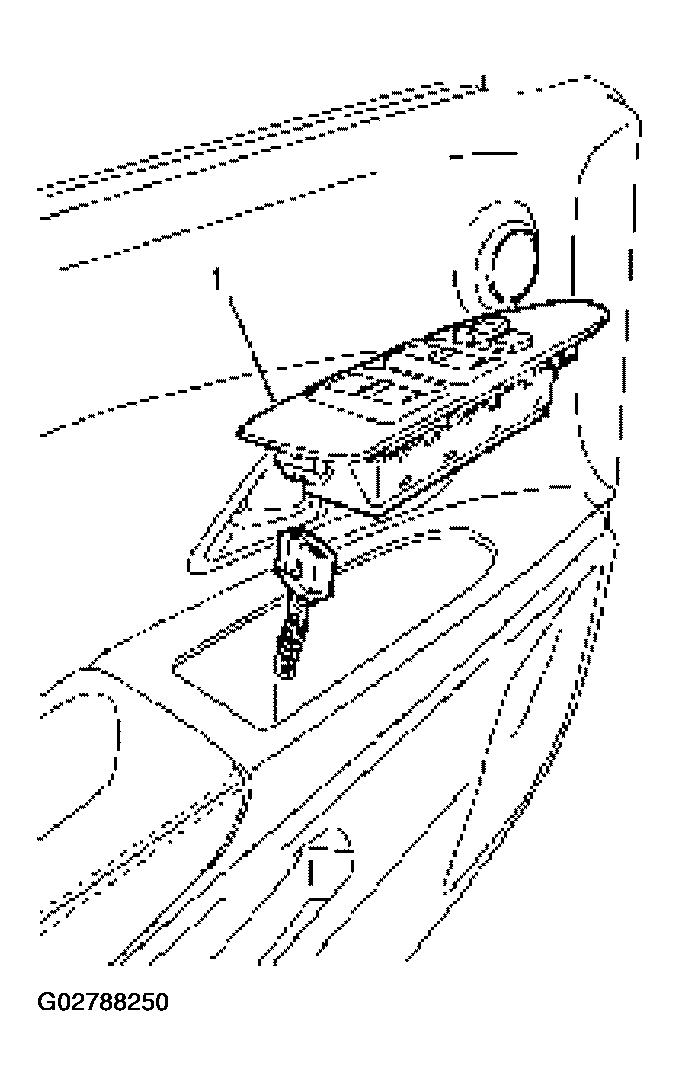

    Fig 2: Removing Driver's Side Power Window Switch
    G02788250Courtesy of ISUZU MOTOR CO.
  4. Remove the inside handle.
    • Open the screw corer (1) and remove the screw.
    • Disconnect the cable.
    Fig 3: Removing Inside Handle
    G02788251Courtesy of ISUZU MOTOR CO.
  5. Remove the door mirror cover.
  6. Pull the door trim panel at the 8 clip positions (1).
    • Disconnect the courtesy light and tweeter harness connectors.

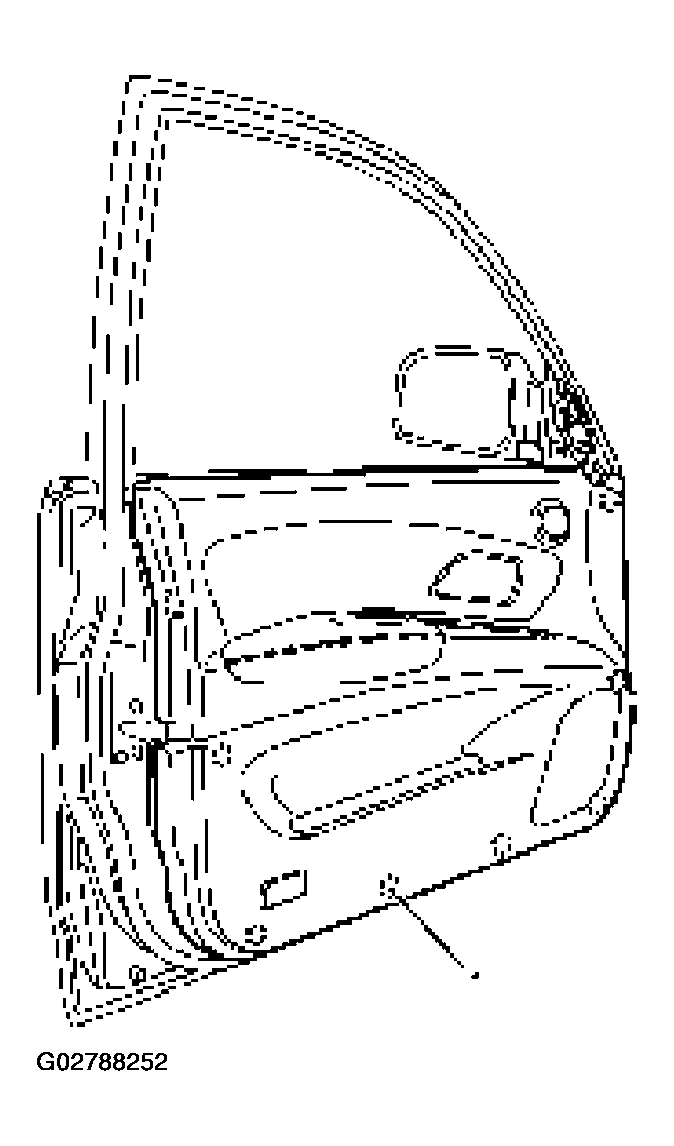

    Fig 4: Pulling Door Trim Panel At 8 Clip Positions
    G02788252Courtesy of ISUZU MOTOR CO.
  7. Remove the pull box bracket.
  8. Remove the inside lock bracket.
    • Disconnect the cable.
  9. Remove the waterproof sheet.
    • Taking notice of the door harness, peel the waterproof sheet off the door panel carefully.
  10. Raise the glass up to the uppermost position.
  11. Remove the door lock assembly.
    • Disconnect the locking links and harness connector.
    • Remove the 3 fixing Torx screws and bolt.

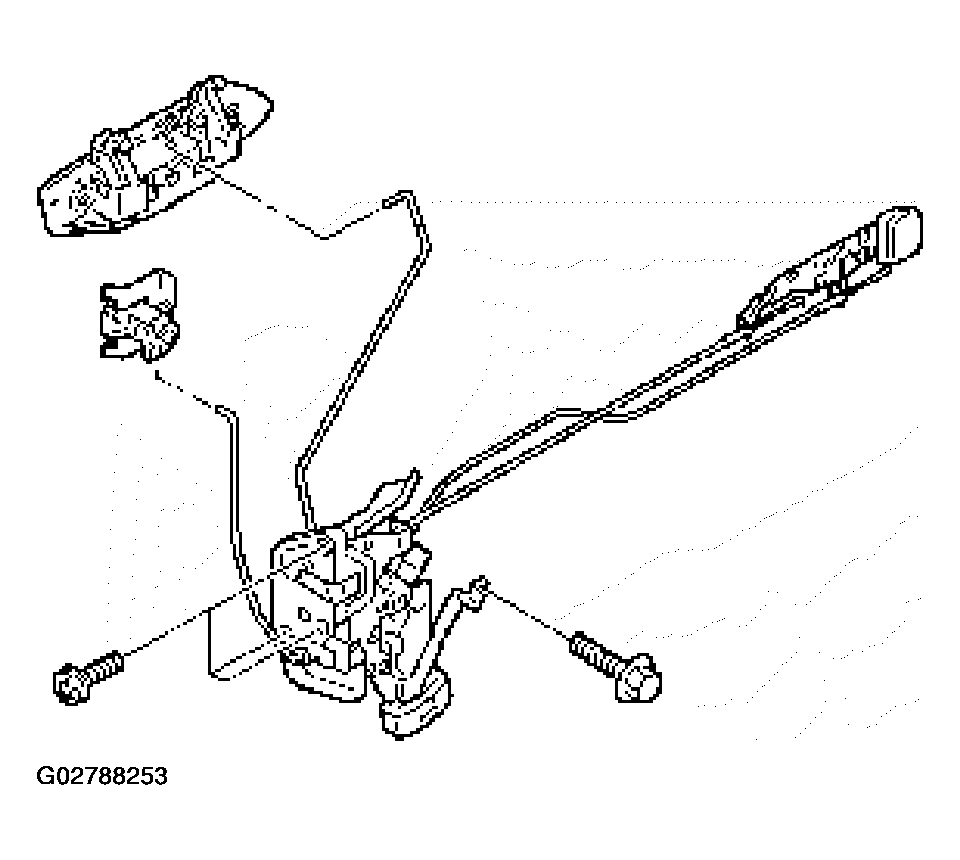

    Fig 5: Removing Door Lock Assembly
    G02788253Courtesy of ISUZU MOTOR CO.
