Anti-Theft & Keyless Entry Controller: Removal

  1. Disconnect the battery ground cable.
  2. Remove the glove box from the instrument panel assembly (1).
  3. Remove the anti-theft & keyless entry controller (2).
    • Disconnect the connector.
    • Remove two fixing screws.

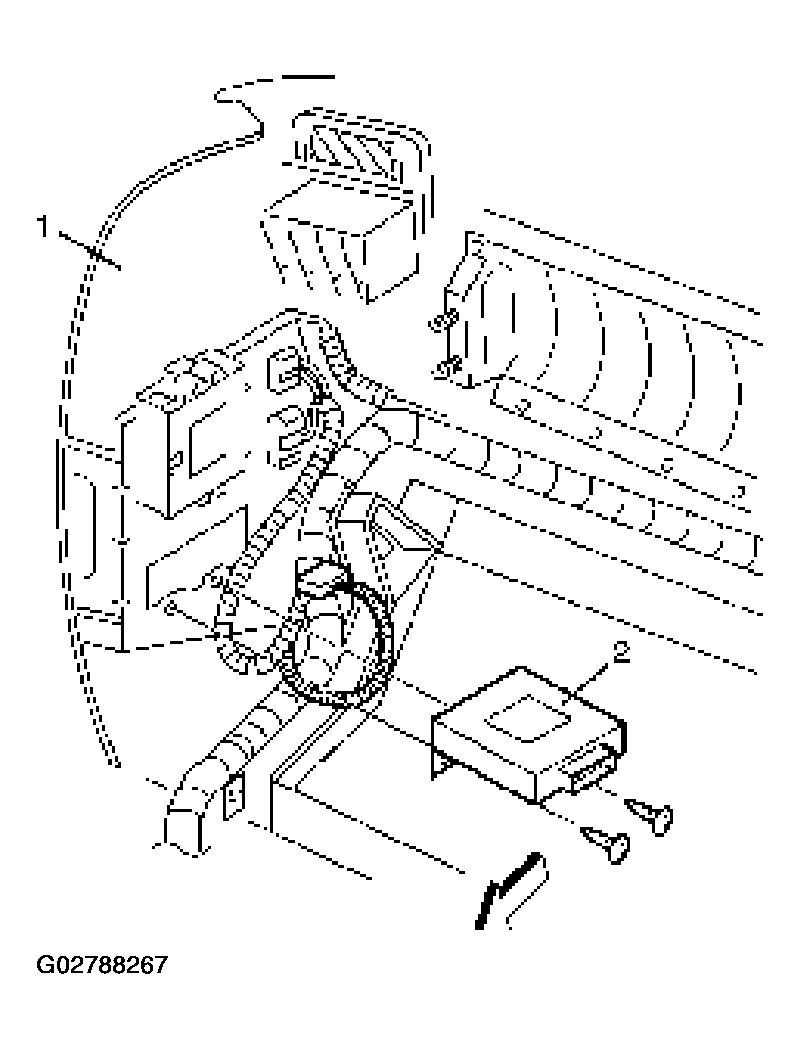

    Fig 1: Removing Anti-Theft & Keyless Entry Controller
    G02788267Courtesy of ISUZU MOTOR CO.
