B8009 No Transponder Key Programmed
B8009 No Transponder Key Programmed

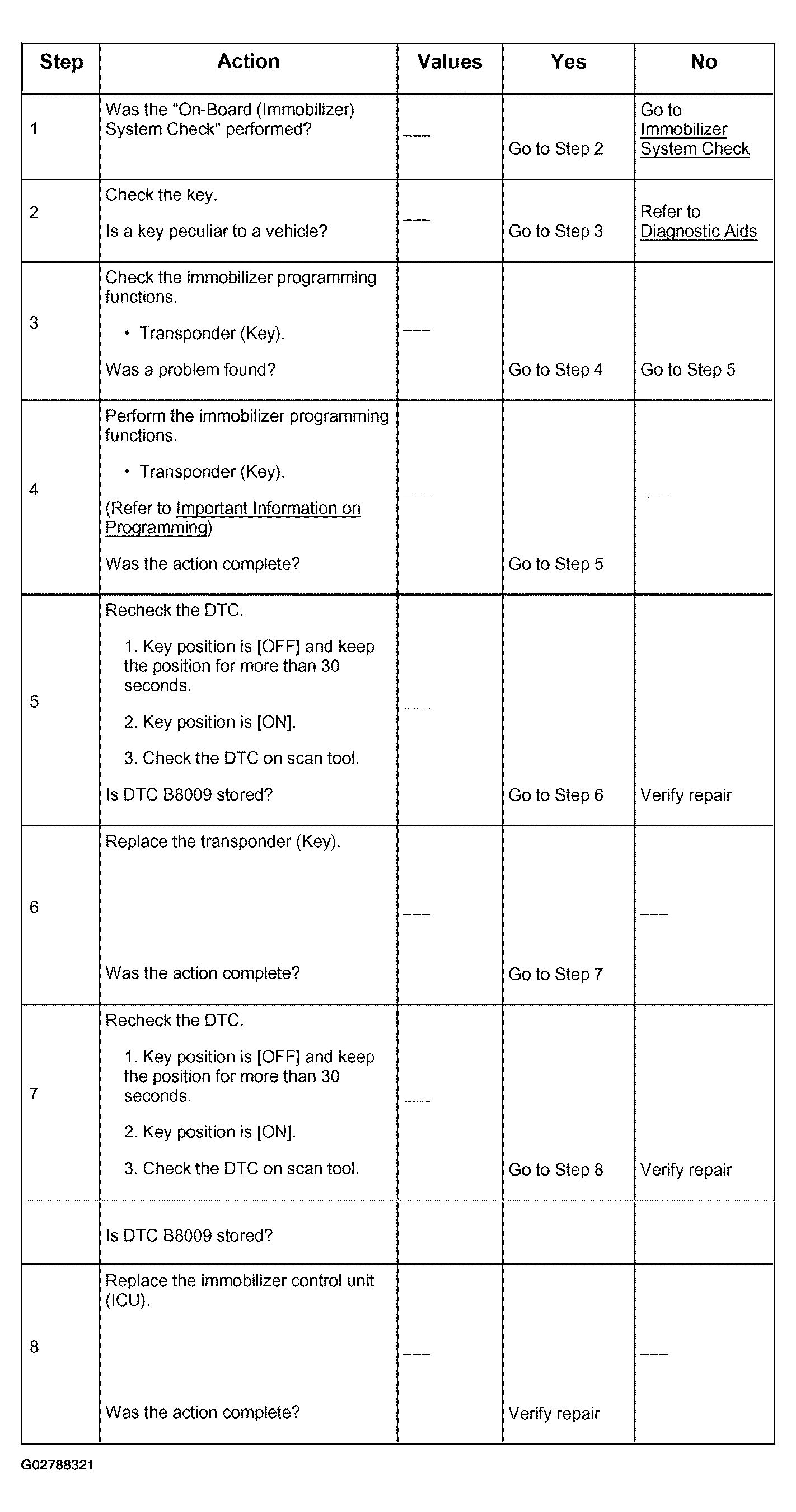

Fig 1: Diagnosis Procedure - B8009 No Transponder Key Programmed
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
