Front Accessory Socket: Removal

  1. Disconnect the battery ground cable.
  2. Remove the front console assembly (2).
  3. Remove the front accessory socket (1).
    • Disconnect the connectors.
    • Remove the holder nut (3).

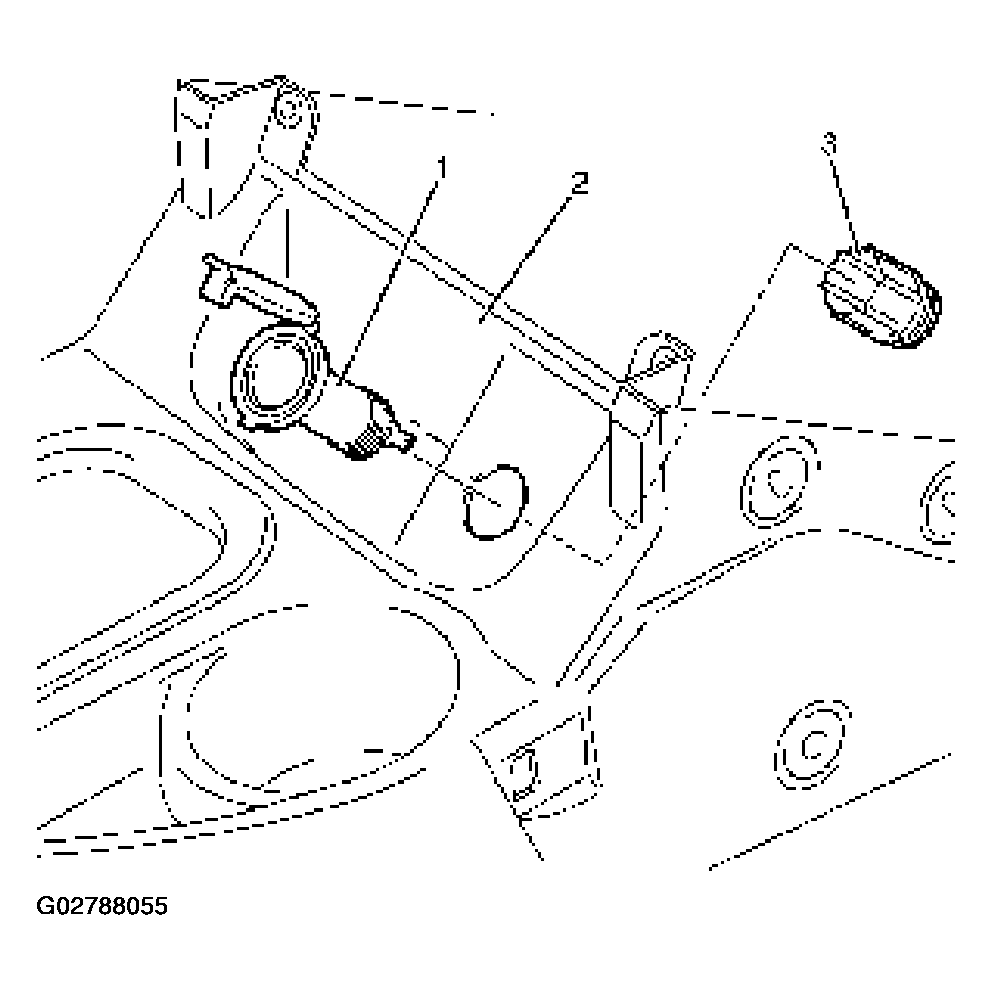

    Fig 1: Removing Front Accessory Socket
    G02788055Courtesy of ISUZU MOTOR CO.
