Home
>>
Isuzu
>>
2004
>>
Axiom Base, 4WD
>>
Repair and Diagnosis
>>
Transmission
>>
Transfer Case
>>
Driveline Control System Tod
>>
Parts Location
Parts Location

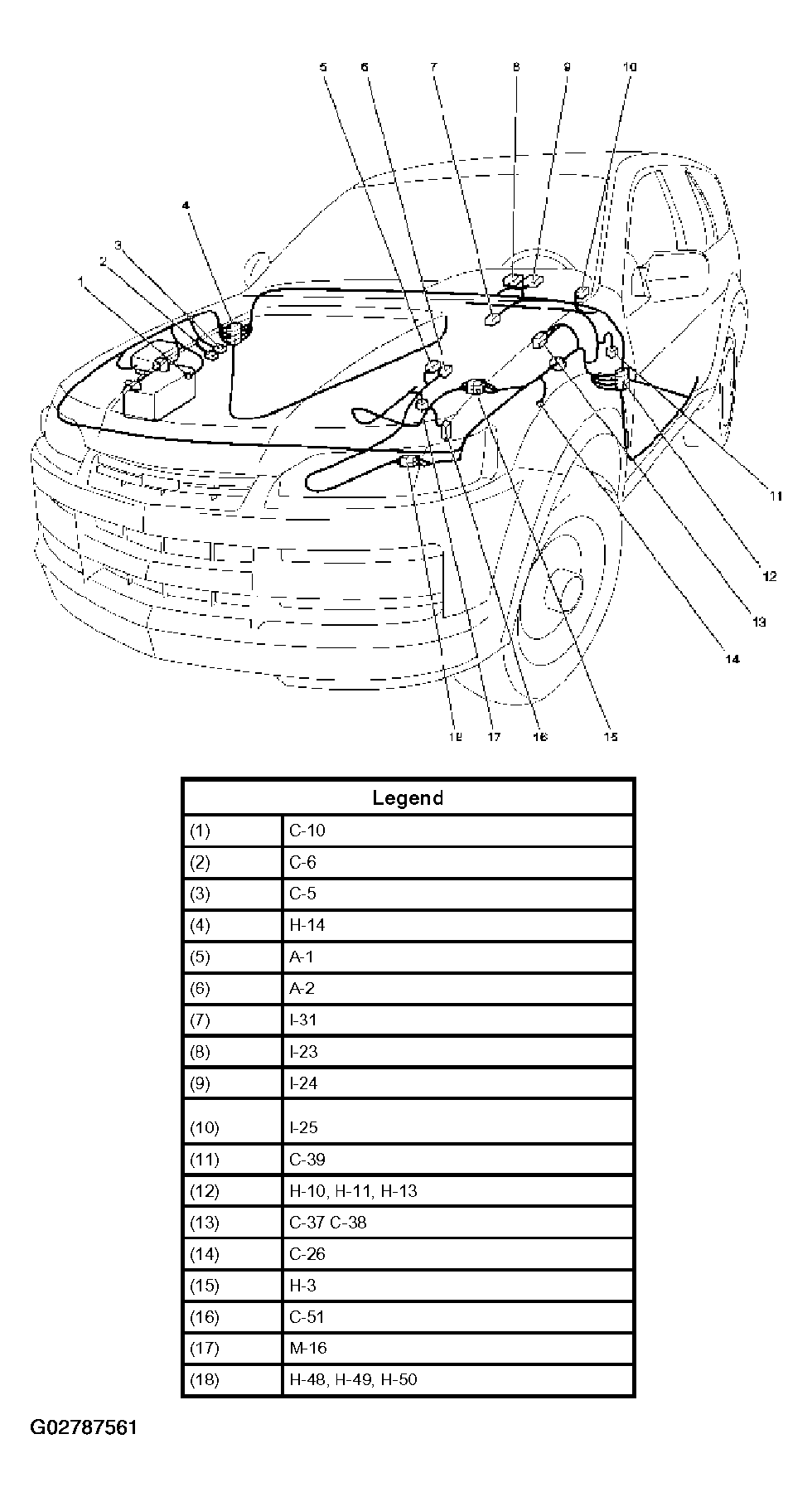

Fig 1: Locating Parts
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
