Diagnosis from Symptom: Notes

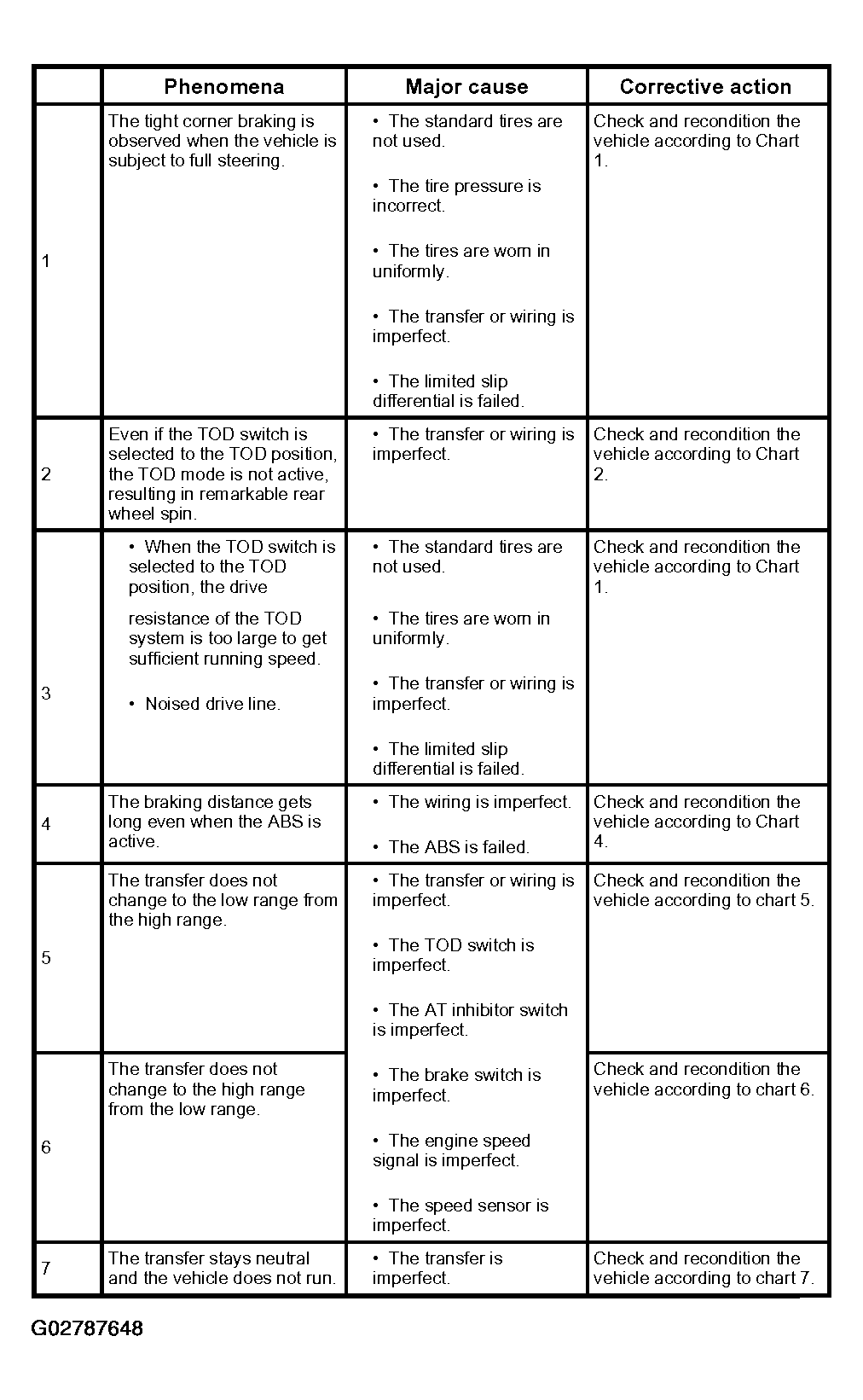

Troubles that are not indicated by the warning lamp are listed in the table below. These troubles are caused by the faults that cannot be detected by the self-diagnostic function of the control unit.

If this type of trouble is observed, interview the customer and conduct test runs to reproduce the trouble, crosscheck the reported trouble with the listed phenomena, and diagnose and analyze the trouble on the item by item basis.
