Axiom Base, 4WD
>>
Repair and Diagnosis
>>
Transmission
>>
Transfer Case
>>
Driveline Control System Tod
>>
Circuit Diagram
Circuit Diagram

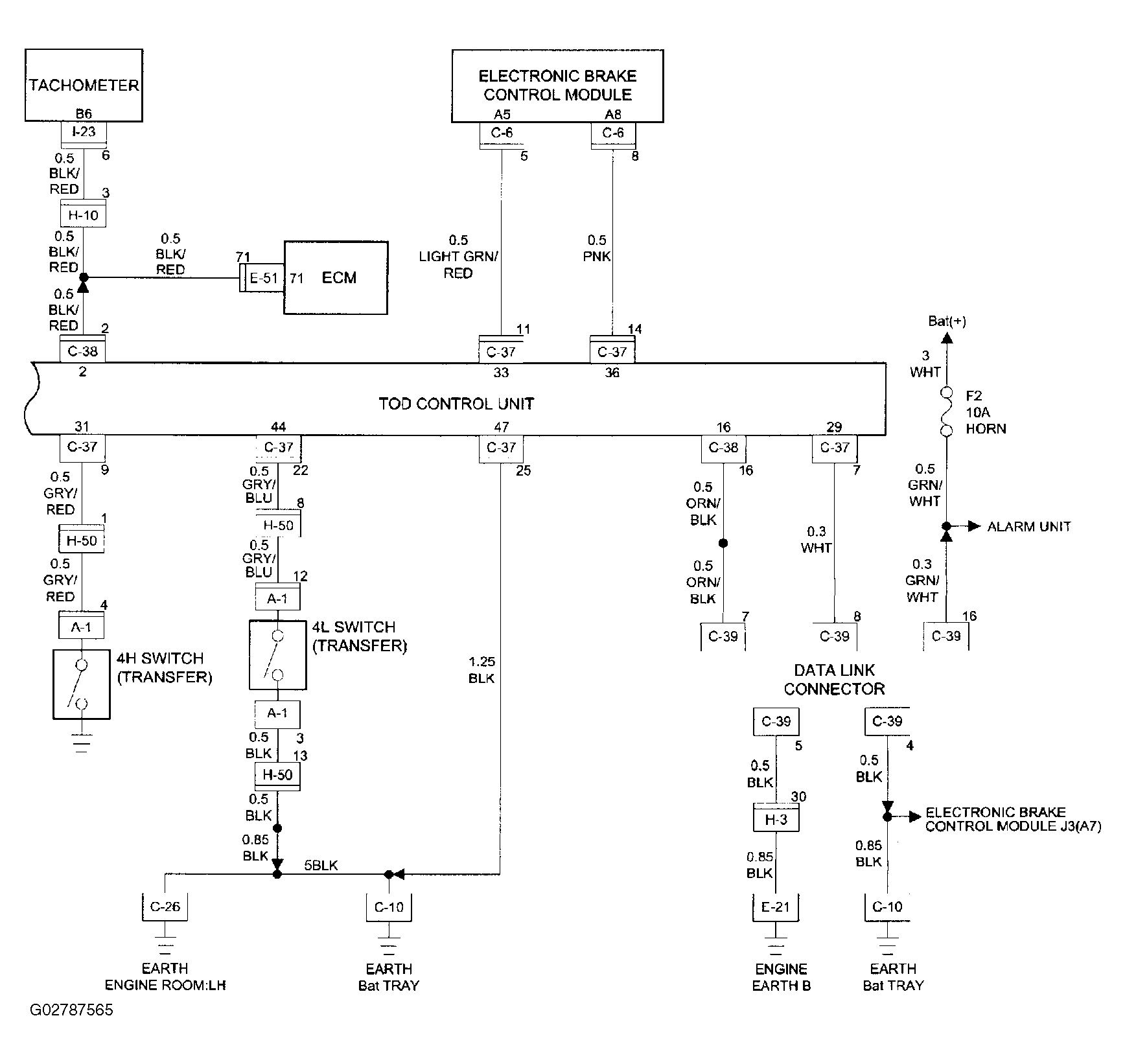

Fig 1: TOD Control Unit Circuit Diagram (1 Of 4)
Courtesy of ISUZU MOTOR CO.

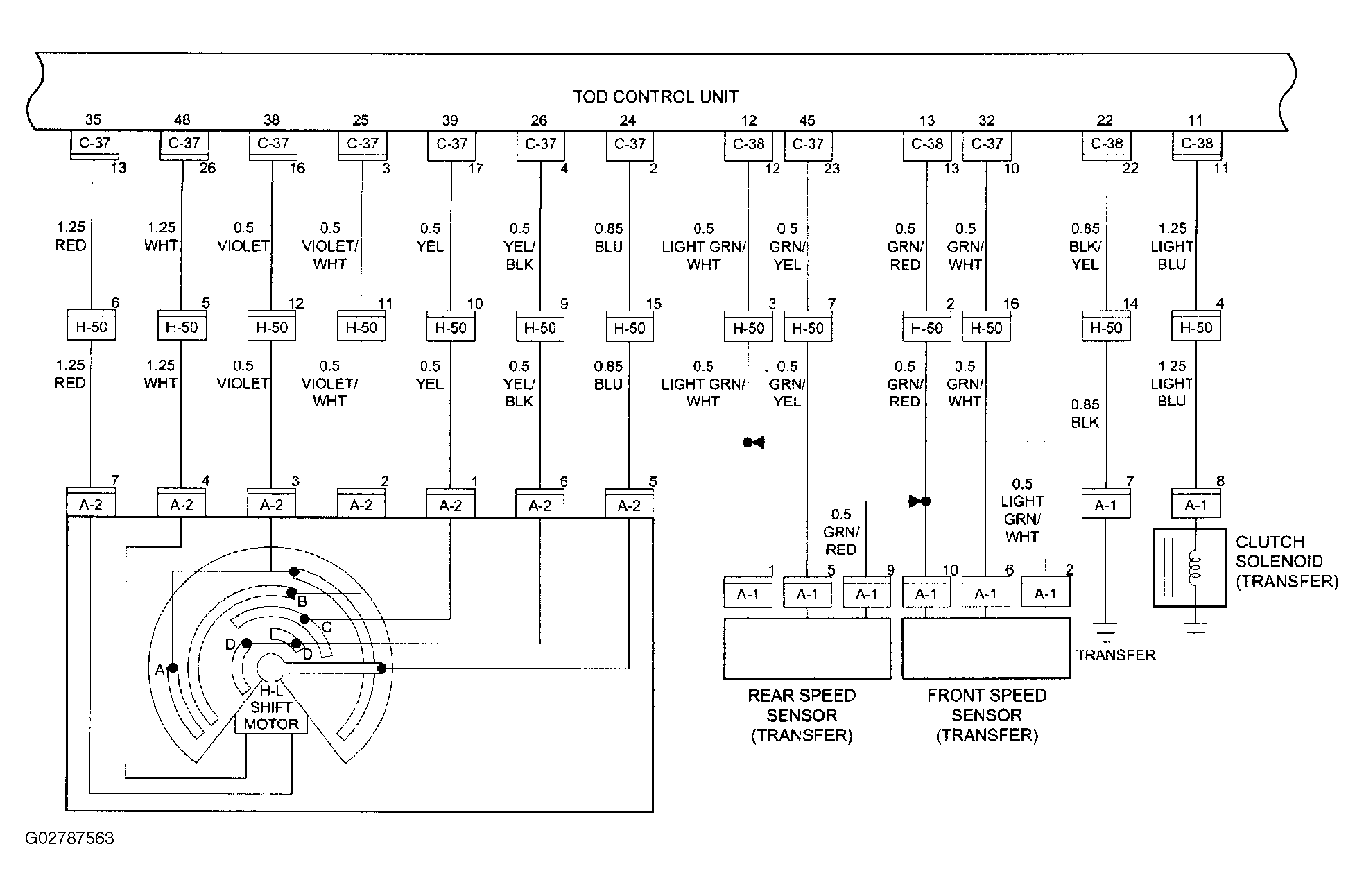

Fig 2: TOD Control Unit Circuit Diagram (2 Of 4)
Courtesy of ISUZU MOTOR CO.

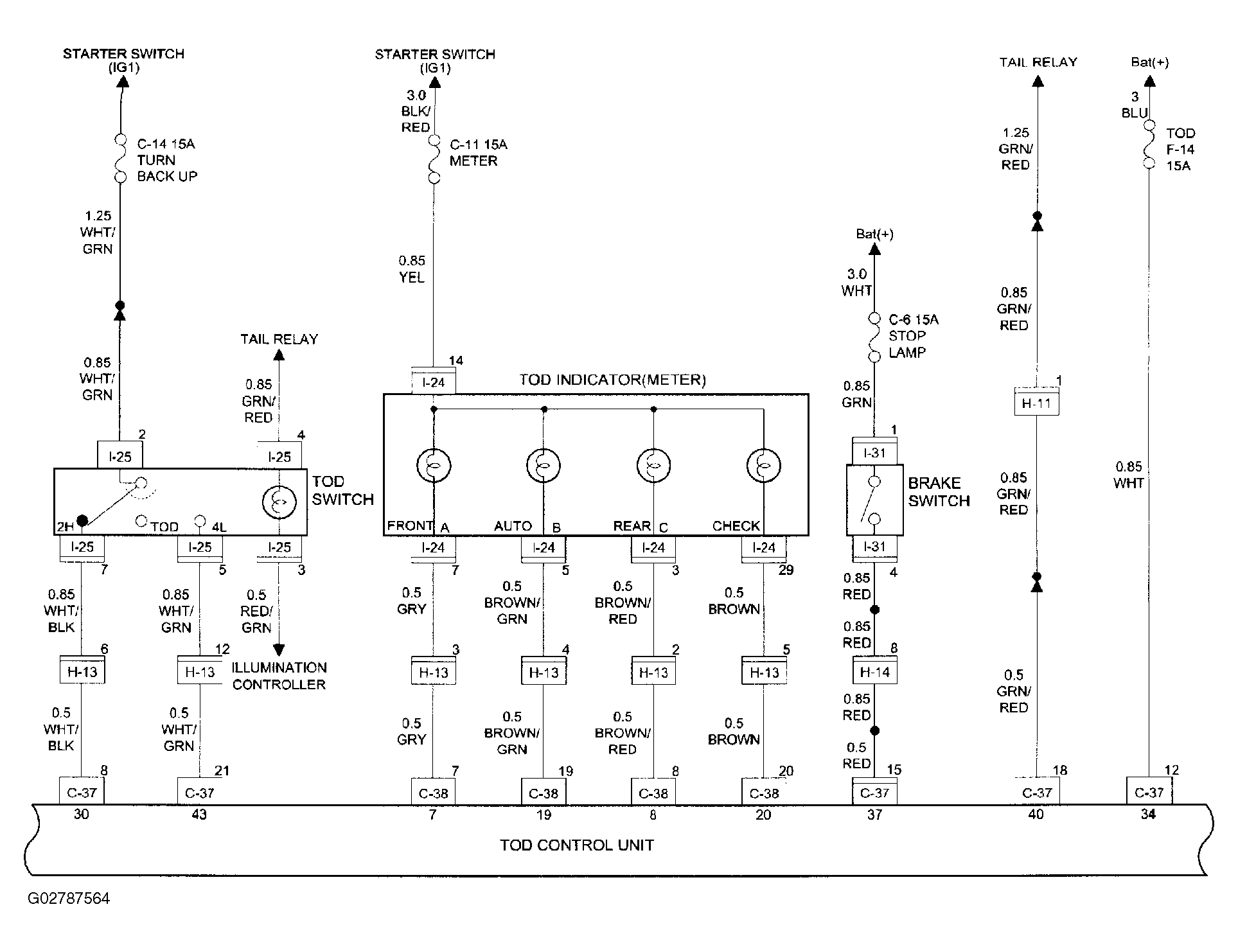

Fig 3: TOD Control Unit Circuit Diagram (3 Of 4)
Courtesy of ISUZU MOTOR CO.

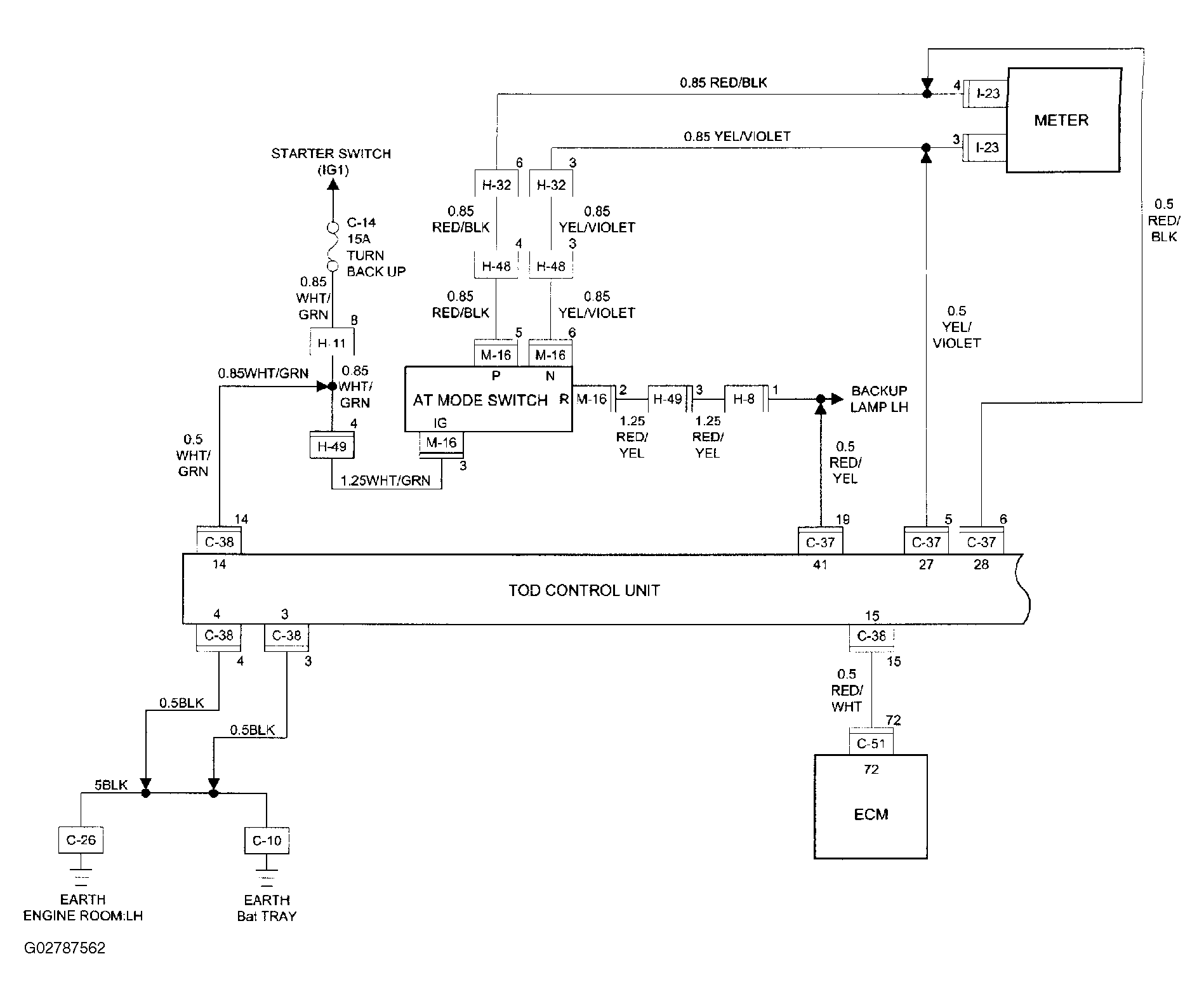

Fig 4: TOD Control Unit Circuit Diagram (4 Of 4)
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
