DTC P0717: (FLASHING CODE 14) AT Input Speed Sensor (Automatic Transmission): Notes

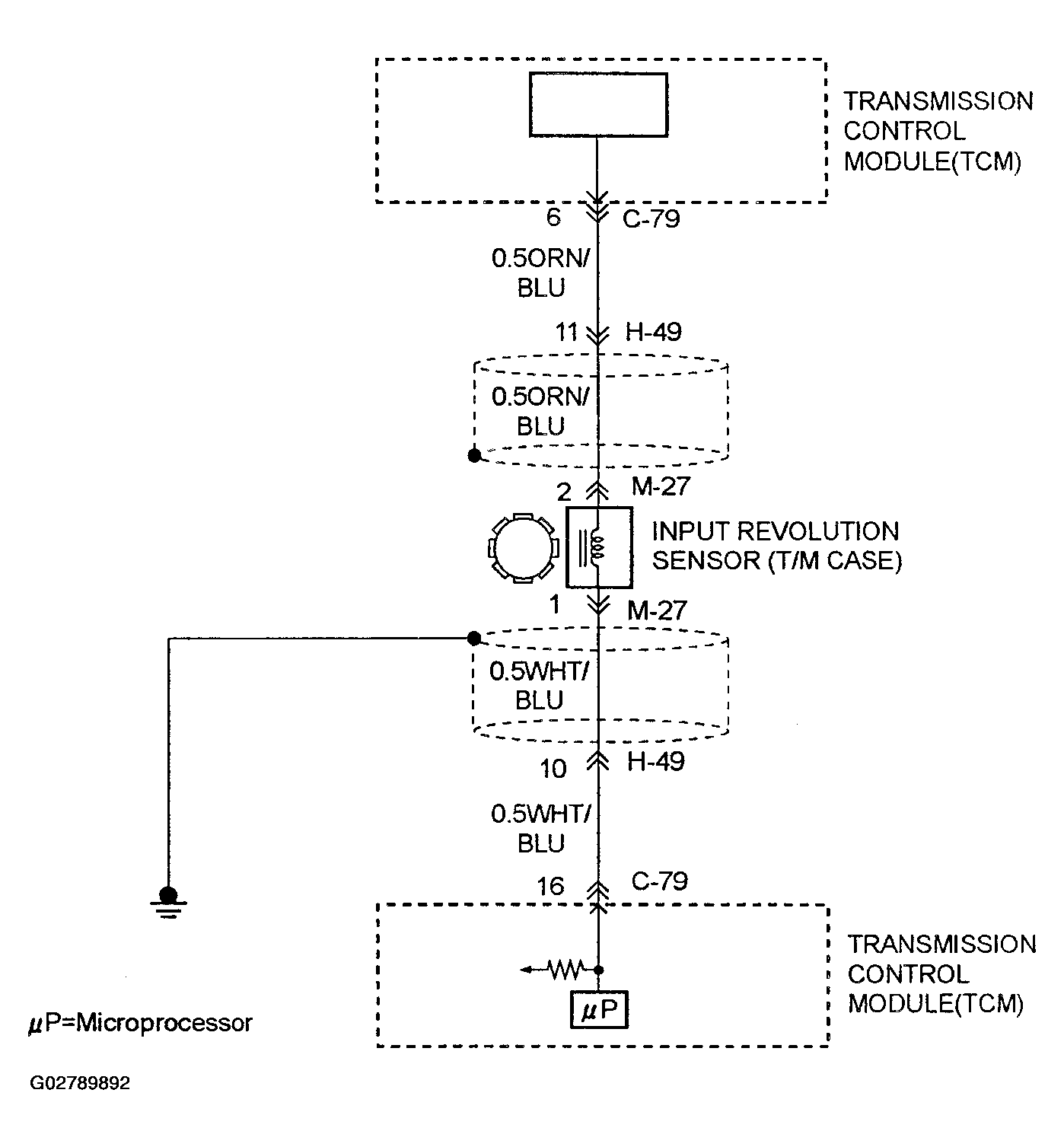

Fig 1: DTC P0717: (Flashing Code 14) AT Input Speed Sensor (Automatic Transmission) Wiring Diagram
G02789892Courtesy of ISUZU MOTOR CO.
