Home >> Isuzu >> 2004 >> Axiom Base, 4WD >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Transmission Control System >> DTC P0712: (FLASHING CODE 15) Transmission Fluid Temperature Sensor Circuit Low >> Notes

DTC P0712: (FLASHING CODE 15) Transmission Fluid Temperature Sensor Circuit Low: Notes

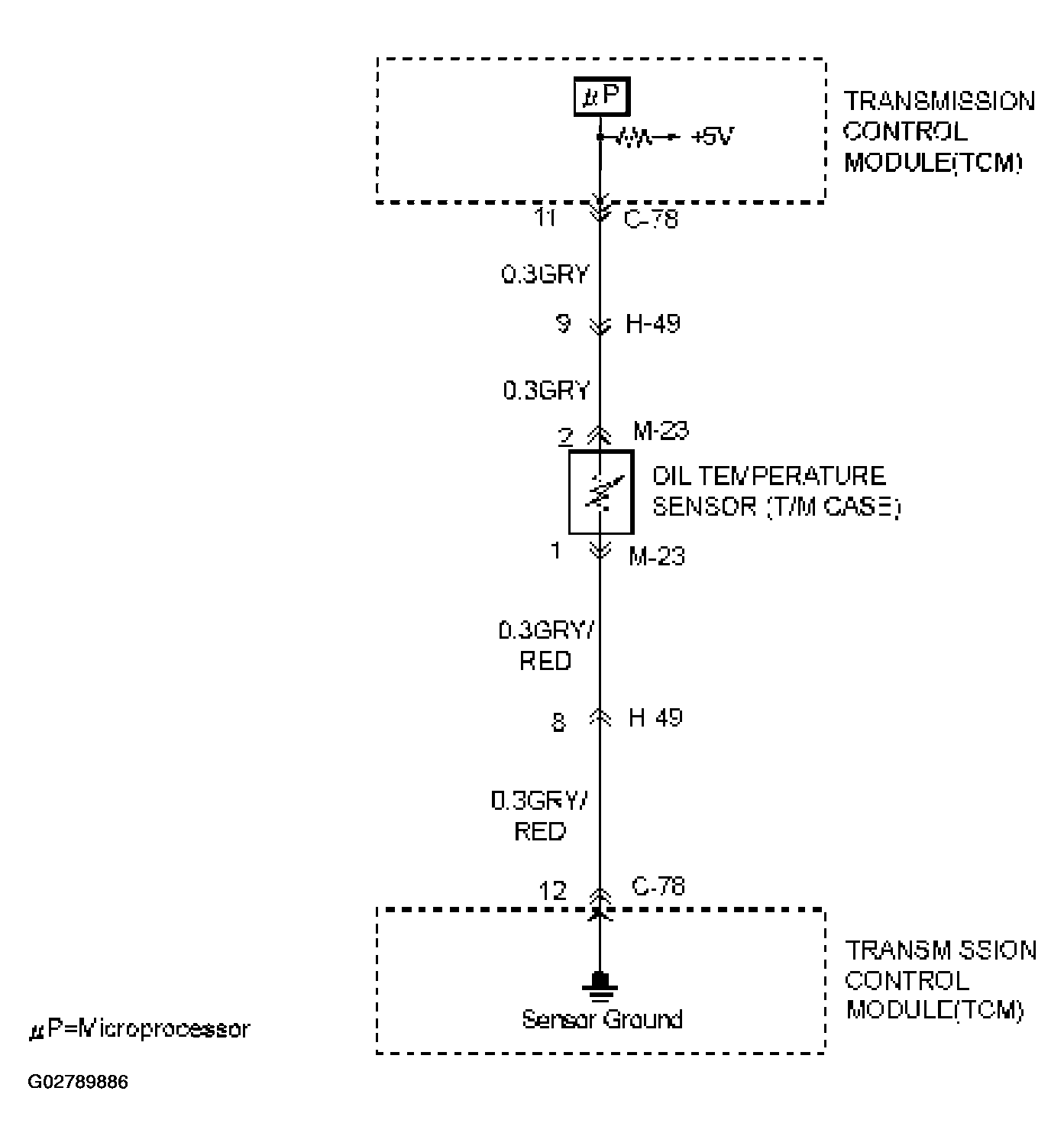

Fig 1: DTC P0712: (Flashing Code 15) Transmission Fluid Temperature Sensor Circuit Low Wiring Diagram
G02789886Courtesy of ISUZU MOTOR CO.
