Valve Body Assembly and Pressure Control Solenoid: Installation

To install, follow the removal steps in reverse order noting the following point;

1. Reinstall the parts removed with the valve body assembly to their assigned positions in the transmission case (check valve assembly, CO accumulator pistons, etc). Install the valve body assembly to the transmission case. Refer to Major Components (2)  .
2. Solenoid clamp bolt

   Torque:  7 N.m (61 lb in)

3. Valve body fixing bolts. Each bolt location and length (mm) is indicated in Fig 1 .

   Torque:  10 N.m (87 lb in)

   NOTE: Tighten the bolts toward outside equally.

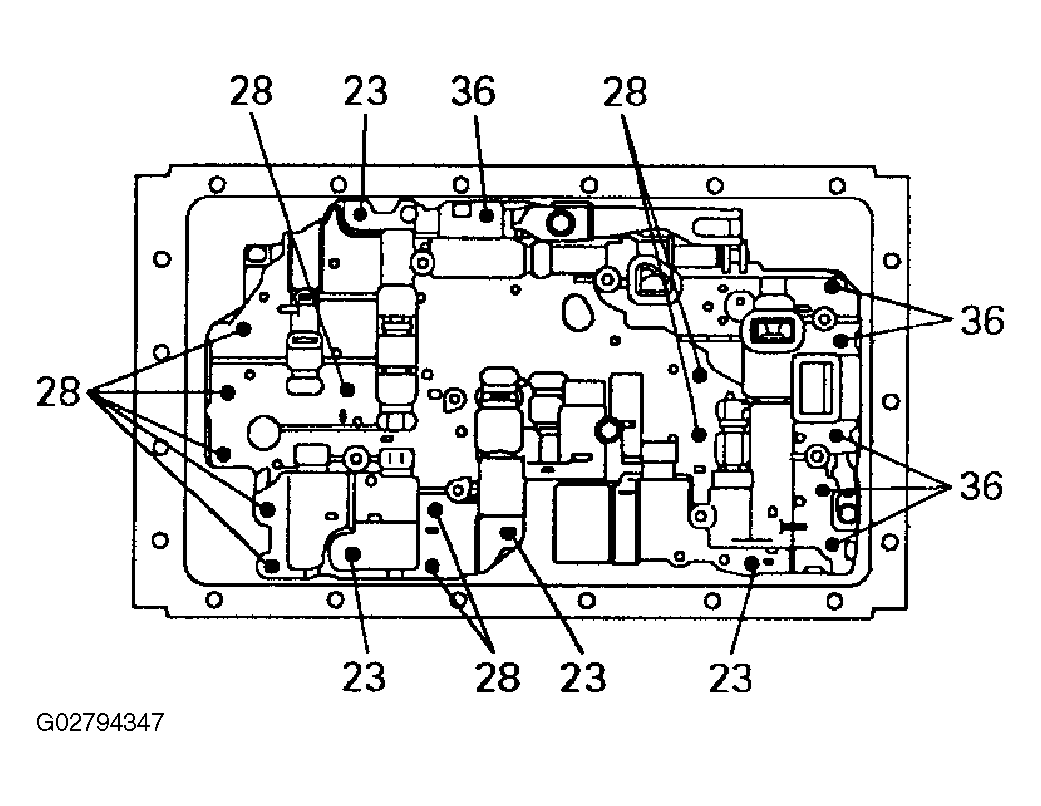

   Fig 1: Tightening Valve Body Fixing Bolts

   Courtesy of ISUZU MOTOR CO.
4. Oil strainer fixing bolts

   Torque:  10 N.m (87 lb in)

5. Oil pan fixing bolts

   Torque:  8 N.m (69 lb in)
