Automatic Transmission
>>
Upper Valve Body
>>
Disassembled View
Disassembled View

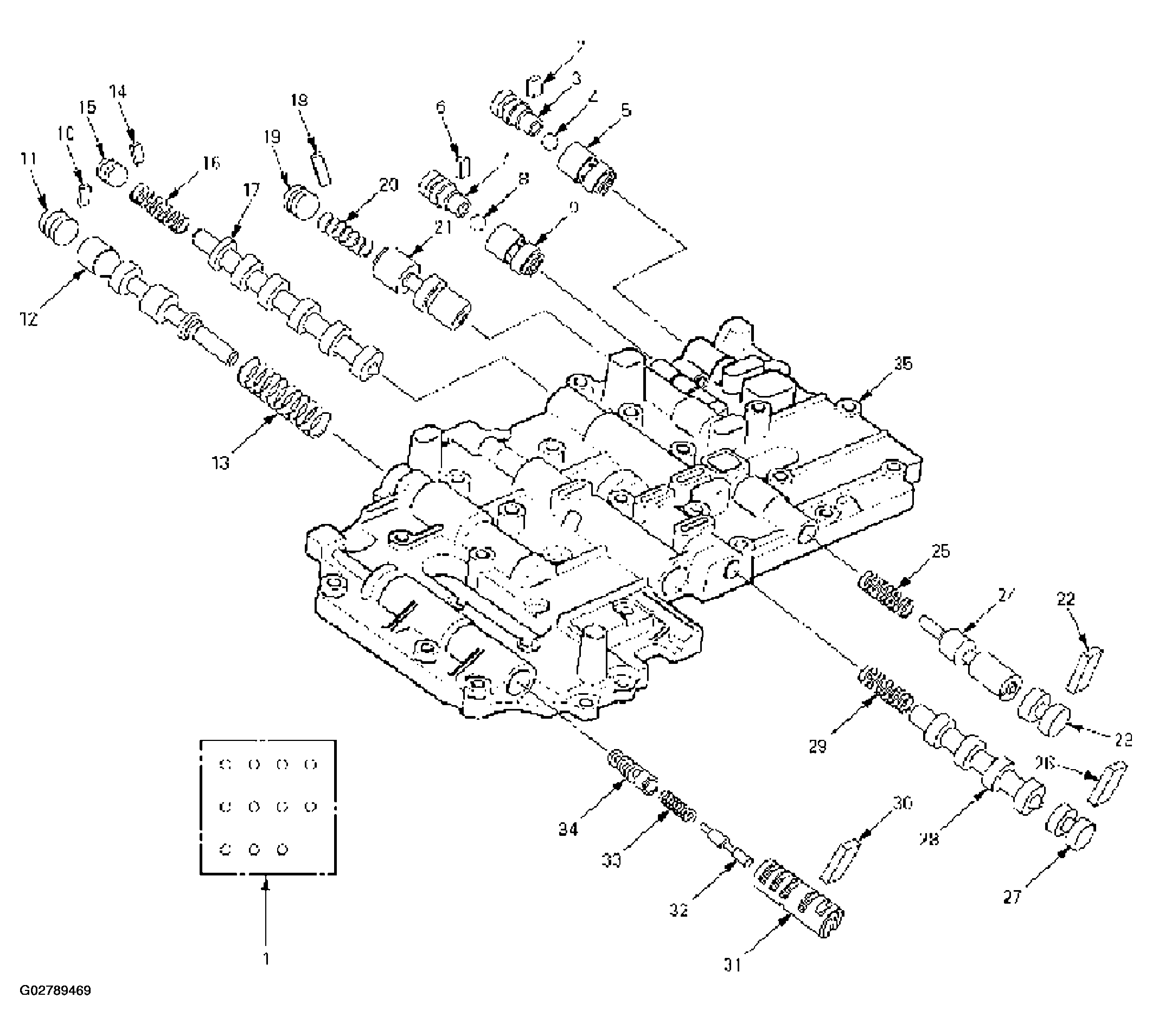

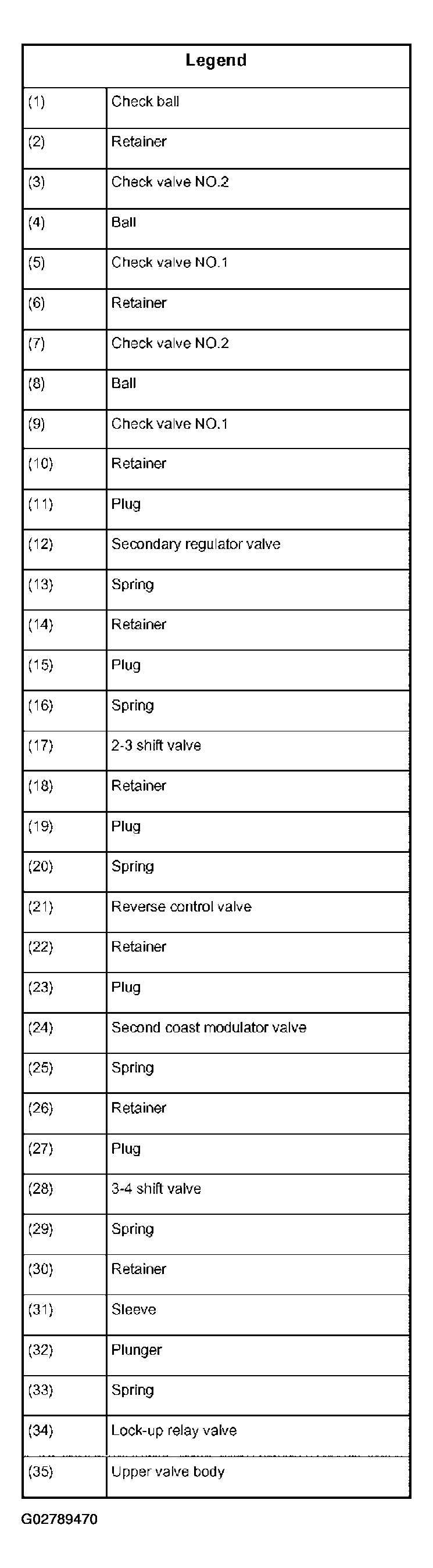

Fig 1: Disassembled View Of Upper Valve Body (1 Of 2)
Courtesy of ISUZU MOTOR CO.
Fig 2: Disassembled View Of Upper Valve Body (2 Of 2)
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
