Automatic Transmission
>>
Transmission Valve Body Assembly
>>
Disassembled View
Disassembled View

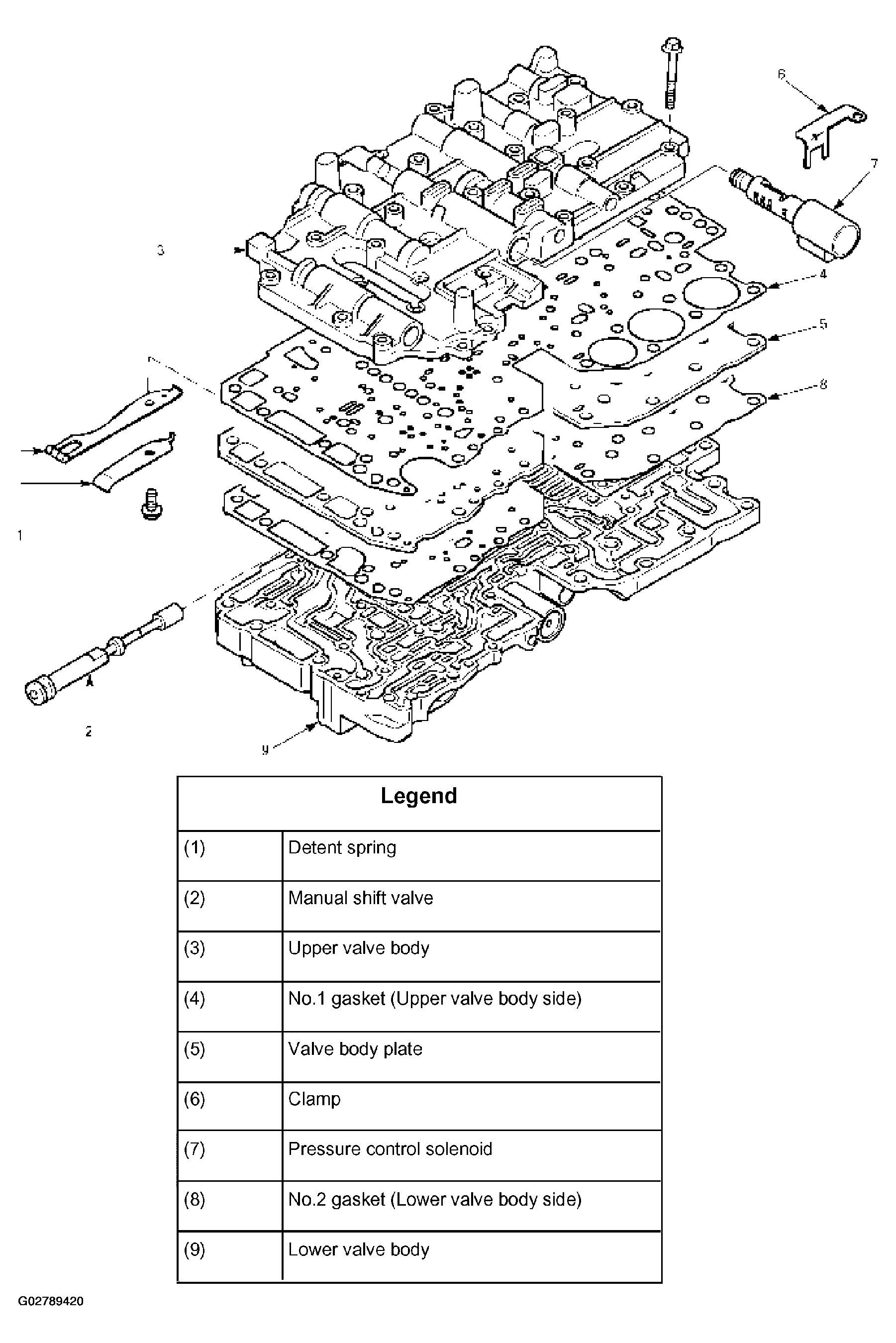

Fig 1: Disassembled View Of Transmission Valve Body Assembly
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
