Disassembled View

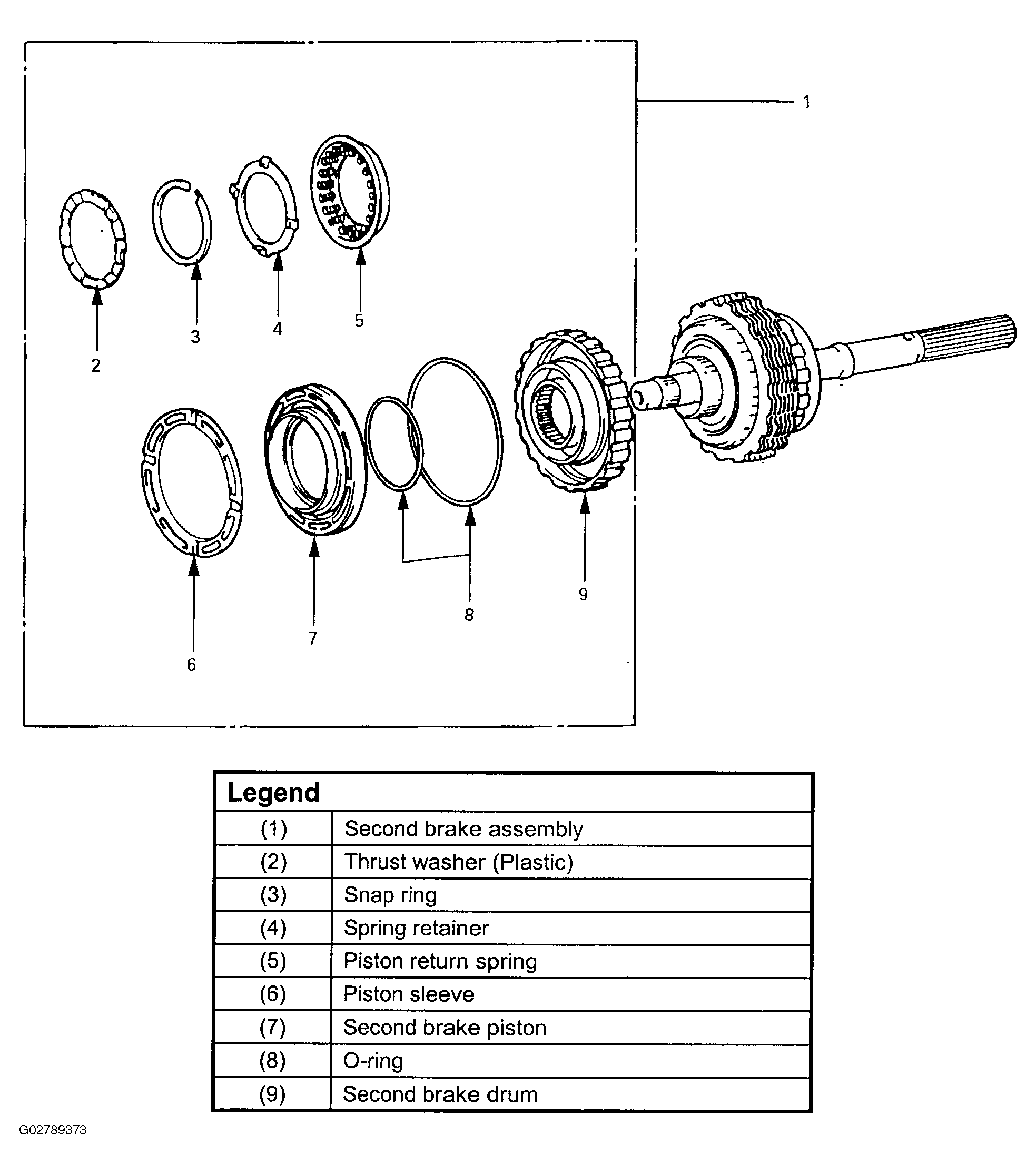

Fig 1: Disassembly View Of Second Brake Assembly (B-2)

G02789373

Courtesy of ISUZU MOTOR CO.
