Disassembly Steps

  1. Remove the torque converter.
  2. Remove the select lever.
  3. Remove the neutral start switch (Mode switch).
    • Unstake the lock washer.
    • Remove the nut and bolt, and then remove the neutral start switch.
    • Remove the lock washer.
    Fig 1: Removing Neutral Start Switch (Mode Switch)
    G02789122Courtesy of ISUZU MOTOR CO.
  4. Remove the two elbows from transmission case.
    Fig 2: Removing Two Elbows From Transmission Case
    G02789123Courtesy of ISUZU MOTOR CO.
  5. Remove the oil temperature sensor.
  6. Remove the breather hose.
  7. Remove the Input revolution sensor.
  8. Remove the output revolution sensor (4x4).
  9. Remove the output revolution sensor (4x2).
  10. Remove the speedometer sensor, speedometer driven gear and plate (4x2).
  11. Remove the extension housing (4x2).
  12. Remove the adapter housing (4x4).
  13. Remove the transmission assembly.
    • Install special tool to the transmission unit.

    Holding fixture:  J-37227

    Holding fixture base:  J-3289-20

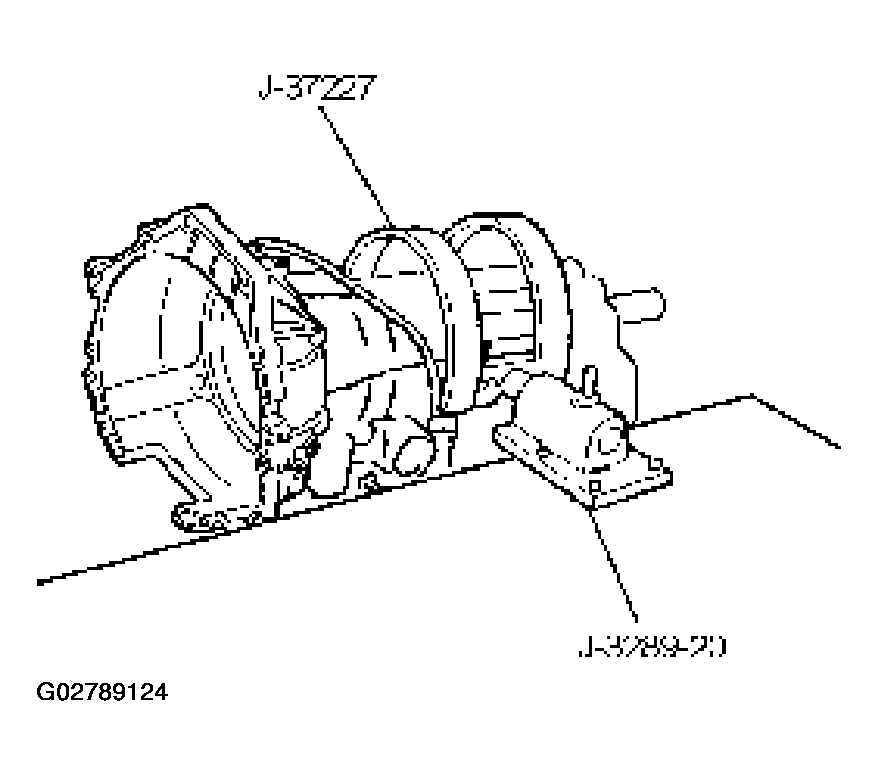

    Fig 3: Installing Special Tool To Transmission Unit
    G02789124Courtesy of ISUZU MOTOR CO.
