Automatic Transmission
>>
Direct Clutch Assembly (C-2)
>>
Disassembled View
Disassembled View

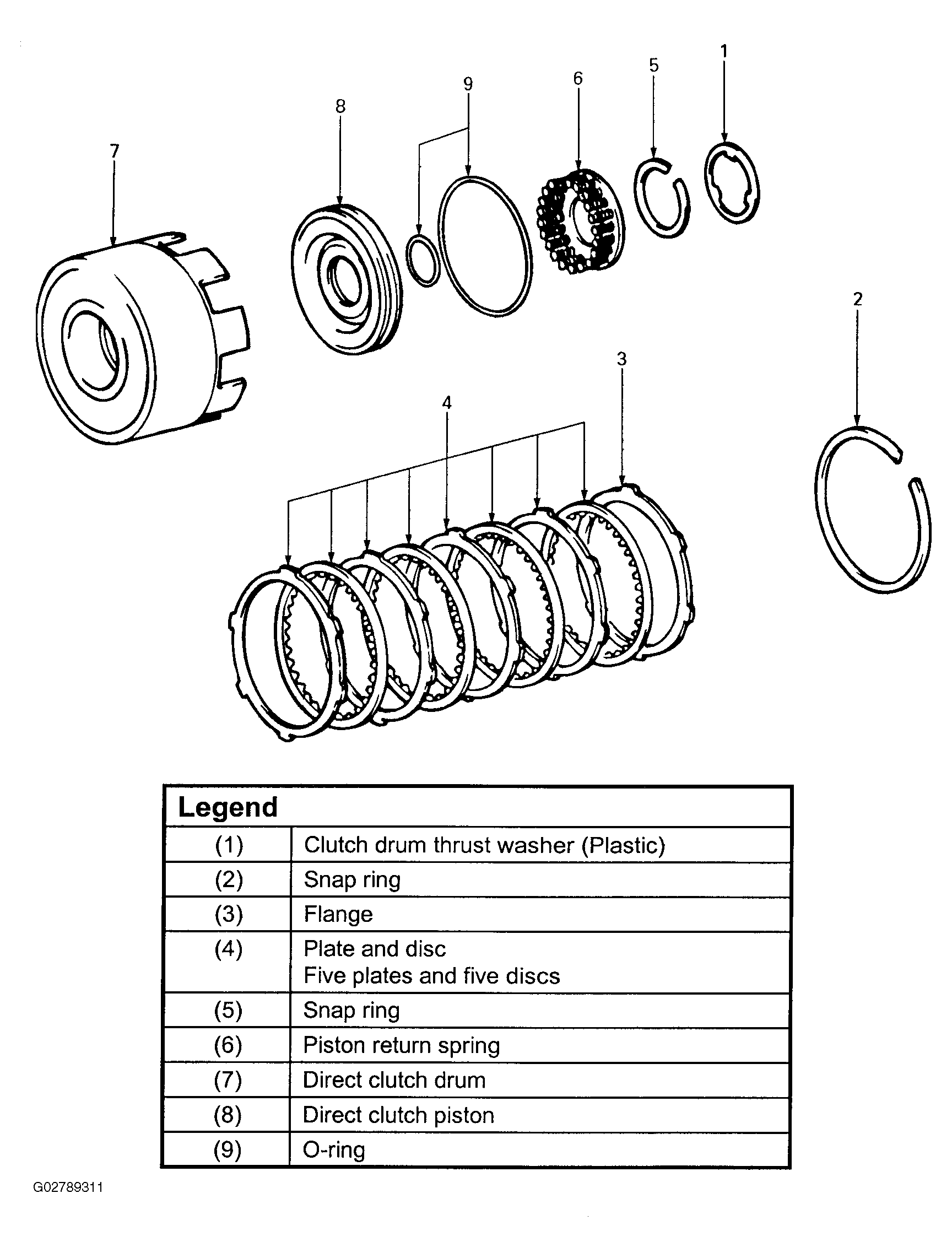

Fig 1: Disassembled View Of Direct Clutch Assembly (C-2)
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
