Time Lag Test

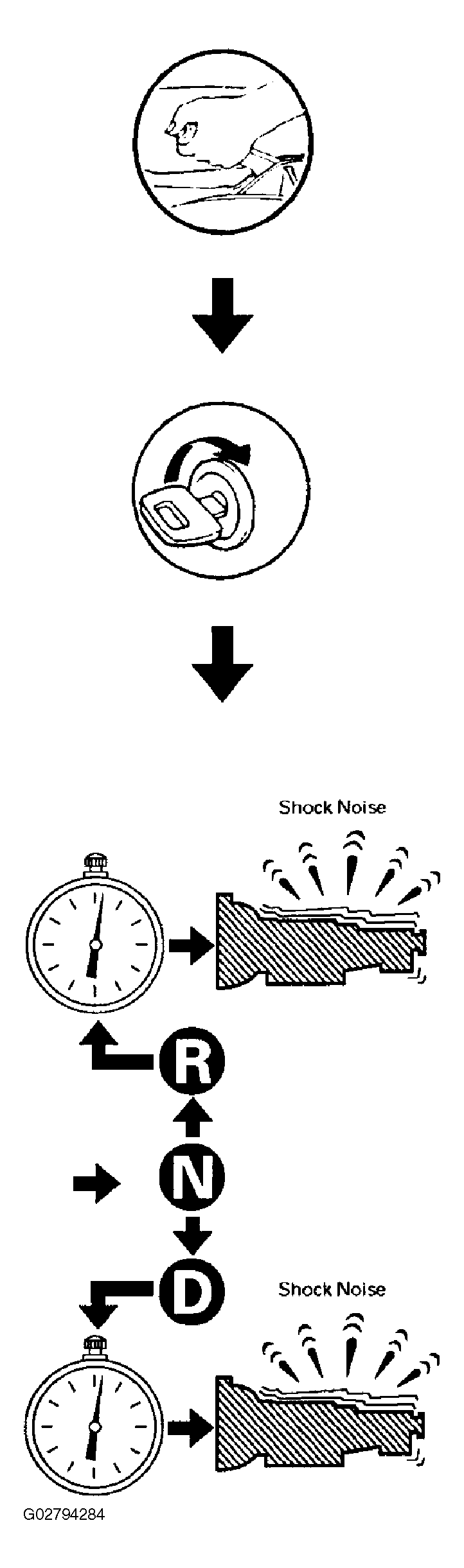

Fig 1: Identifying Time Lag Test Process

Courtesy of ISUZU MOTOR CO.

If the shift lever is shifted while the engine is idling, there will be a certain time elapse or lag before the shock can be felt. This is used for checking the condition of the forward clutch, direct clutch, No.3 brake, and No.2 one-way clutch.

NOTE:

Perform the test at normal operation fluid temperature (50 - 80°C or 122 - 176°F)
Be sure to allow one minute interval between tests.
Make three measurements and take the average value.
