Stall Test

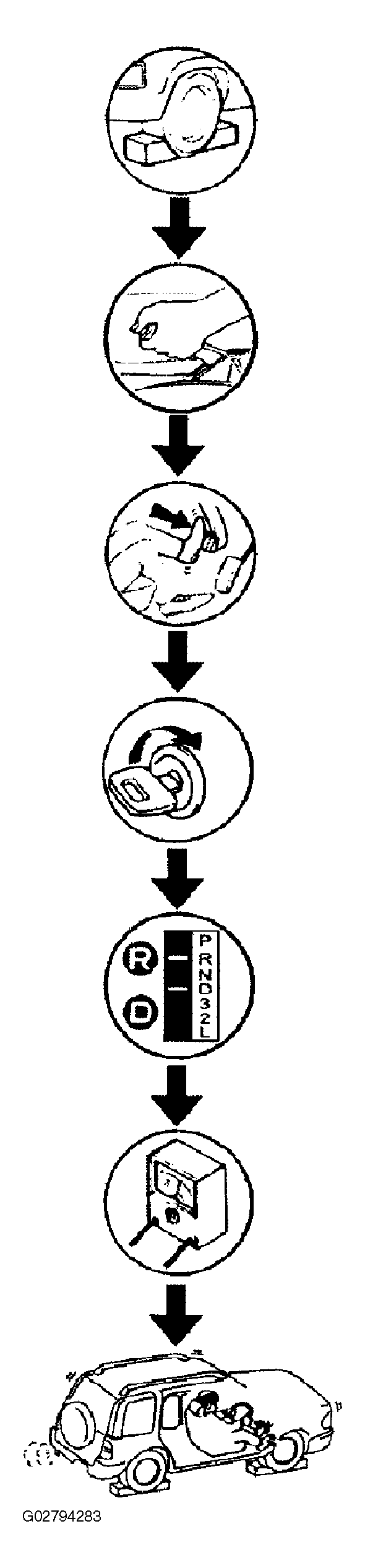

Fig 1: Identifying Stall Test Process
G02794283Courtesy of ISUZU MOTOR CO.

The object of this test is to check the overall performance of the transmission and engine by measuring the maximum engine speeds at the "D" and "R" ranges.

NOTE:
  1. Perform the test at normal operation fluid temperature (50 - 80°C or 122 - 176°F).
  2. Do not continuously run this test longer than 5 seconds.
