Home >> Isuzu >> 2004 >> Axiom Base, 4WD >> Repair and Diagnosis >> Steering >> Power Steering >> Power-Assisted Steering System >> Steering Column >> Steering Column and Associated Parts

Steering Column and Associated Parts

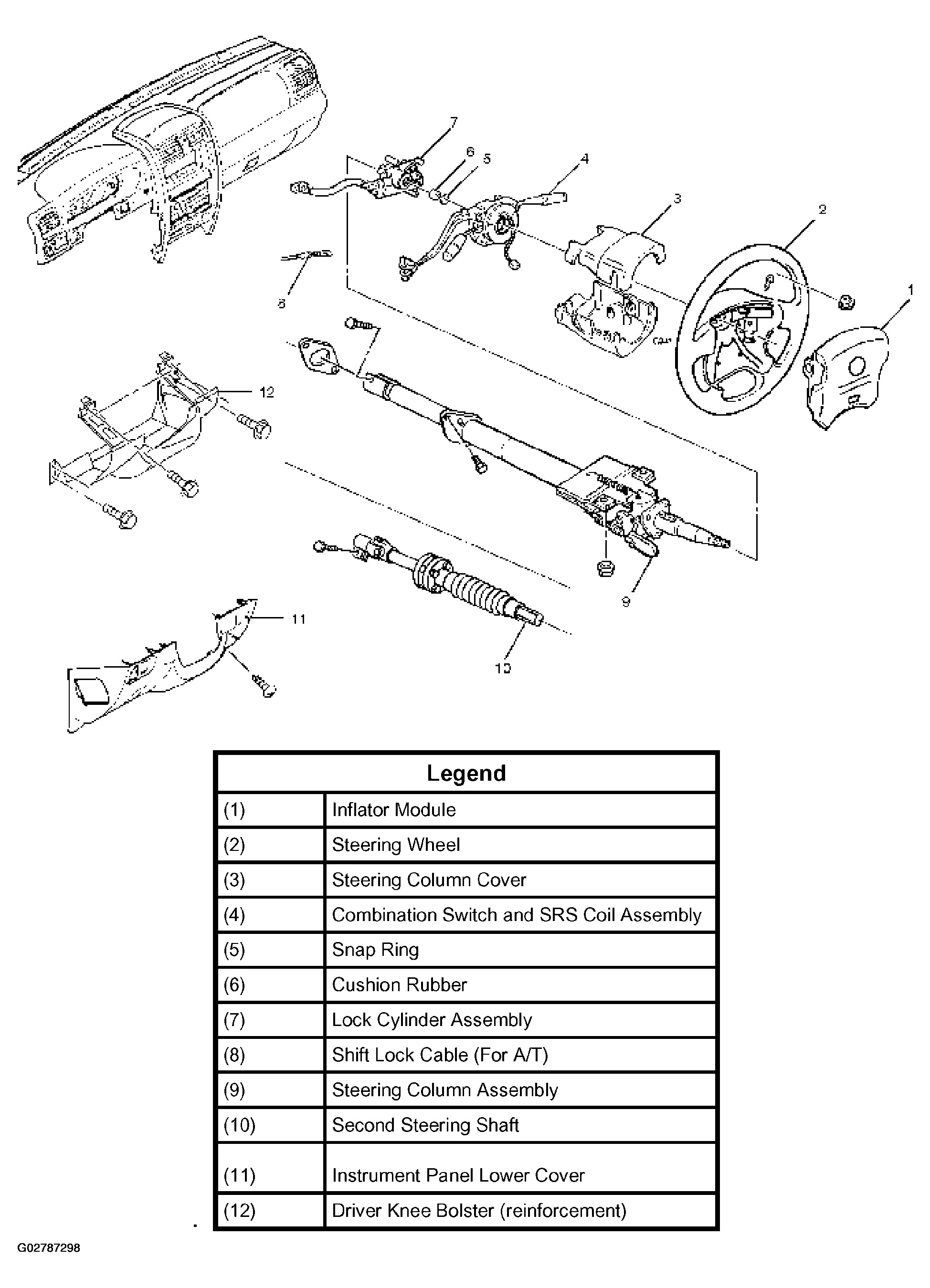

Fig 1: Identifying Steering Column & Associated Parts

G02787298

Courtesy of ISUZU MOTOR CO.
