Power Steering Unit Disassembled View

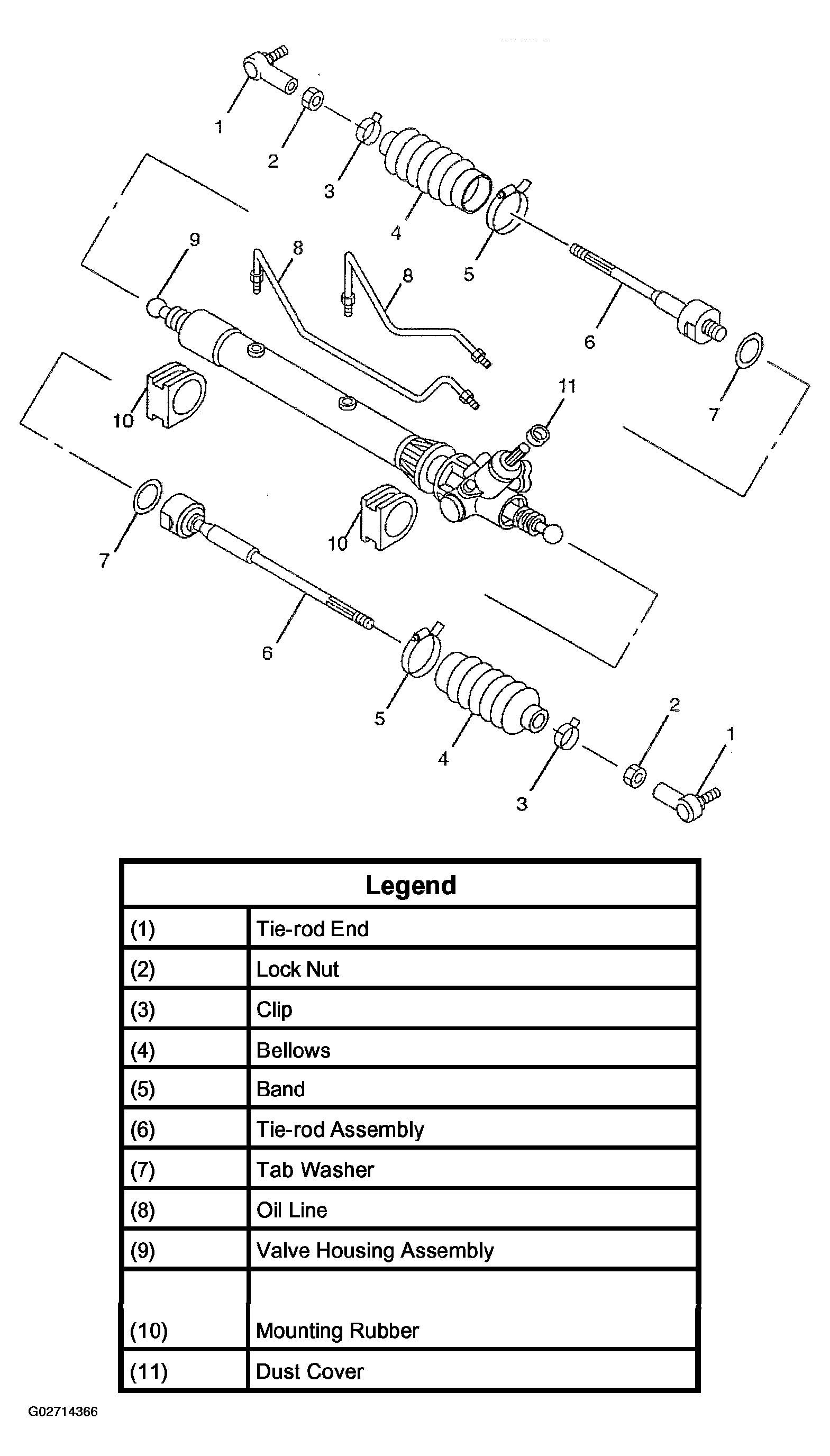

Fig 1: Identifying Power Steering Unit Components

G02714366

Courtesy of ISUZU MOTOR CO.
