Home >> Isuzu >> 2004 >> Axiom Base, 4WD >> Repair and Diagnosis >> Steering >> Manual Steering >> Power-Assisted Steering System >> Combination Switch >> Combination Switch and Associated Parts

Combination Switch and Associated Parts

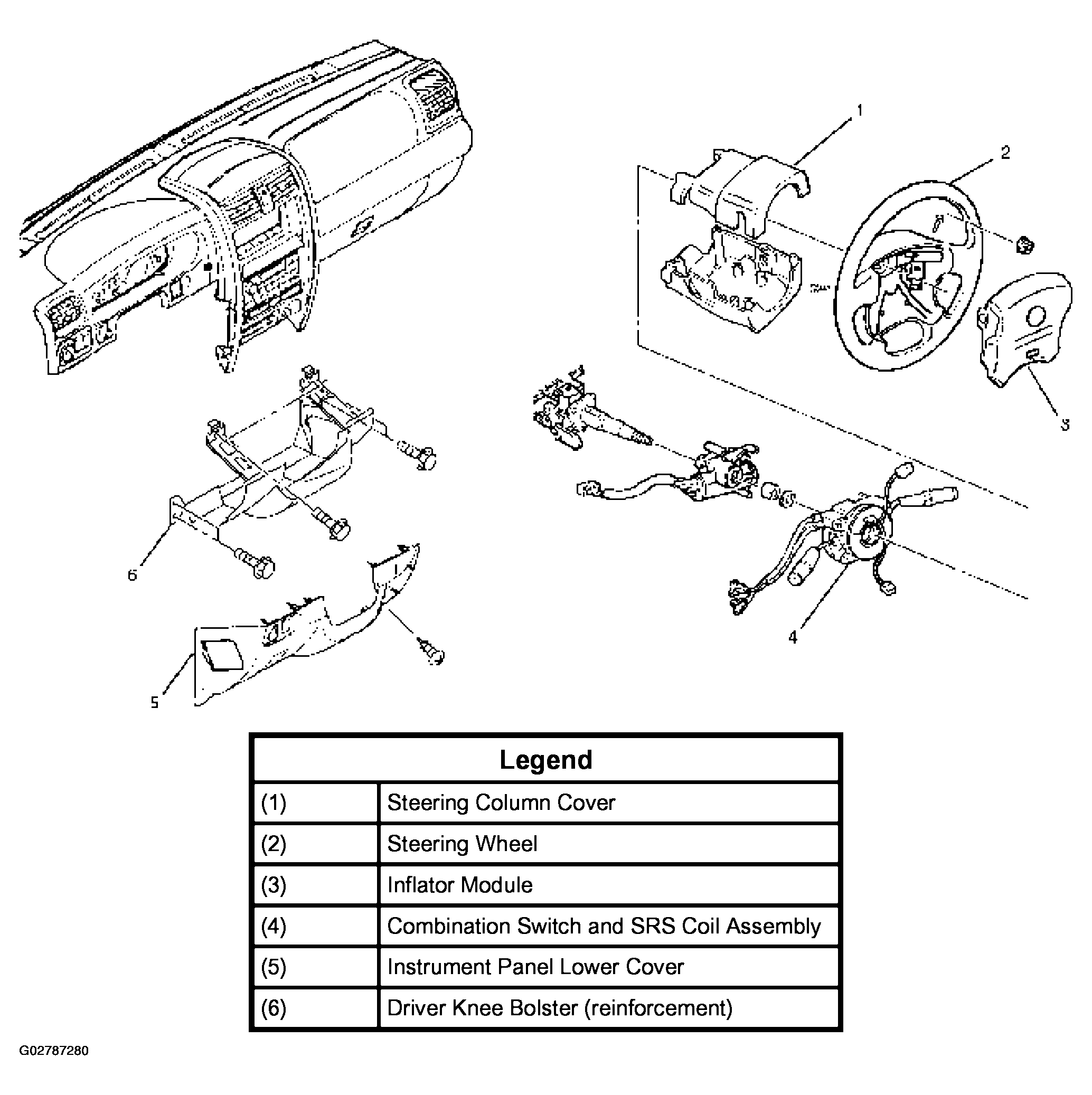

Fig 1: Identifying Combination Switch & Associated Parts

G02787280

Courtesy of ISUZU MOTOR CO.
