Solenoid Test

This test is conducted check Solenoid valve for proper operation.

Tech 2 must be used for this test.

Test Procedure:

1. Connect Tech 2 to the vehicle DLC.
2. Run the Engine at idle.
3. Select F3: Miscellaneous Test in the Application Menu.
   Fig 1: Selecting F3: Miscellaneous Test In Application Menu

   Courtesy of ISUZU MOTOR CO.
4. Select F5: Solenoid Test in the Miscellaneous Test.

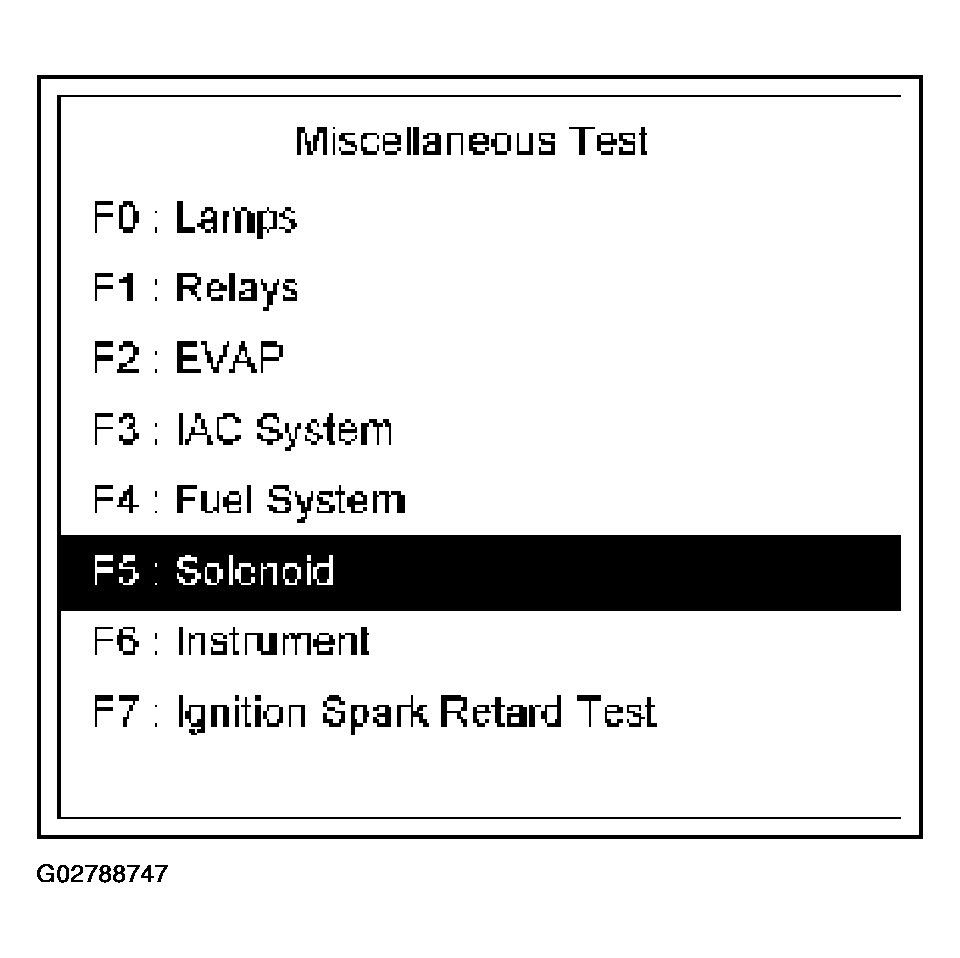

   Fig 2: Selecting F5: Solenoid Test In Miscellaneous Test

   Courtesy of ISUZU MOTOR CO.
5. Control Solenoid and check data list.
6. If data list changes, Solenoid is normal.
