Relays Test

This test is conducted to check Fuel Pump Relay and A/C Clutch for proper operation.

Tech 2 must be used for this test.

Test Procedure:

1. Connect Tech 2 to the vehicle DLC.
2. Ignition SW is "On".
3. Select F3: Miscellaneous Test in the Application Menu
   Fig 1: Selecting F3: Miscellaneous Test In Application Menu

   Courtesy of ISUZU MOTOR CO.
4. Select F1: Relay Test in the Miscellaneous Test.

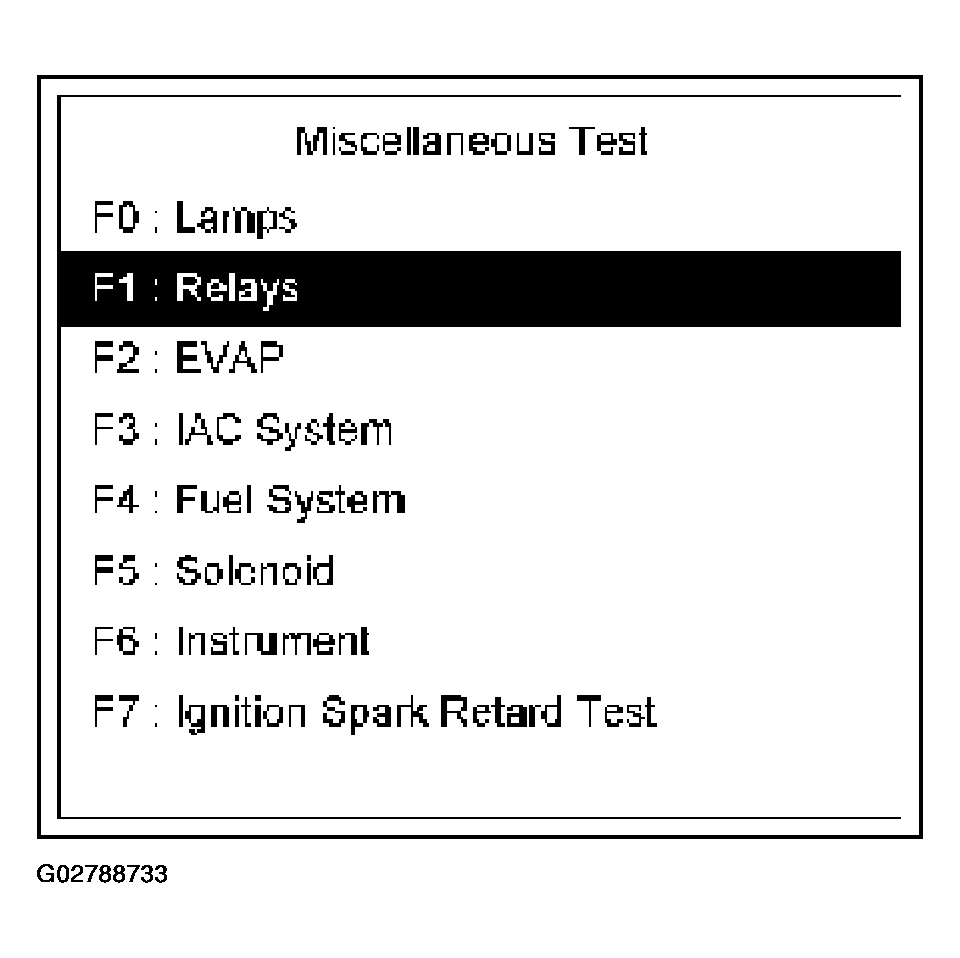

   Fig 2: Selecting F1: Relay Test In Miscellaneous Test

   Courtesy of ISUZU MOTOR CO.
5. Select F0: Rear Window Defog Test.
   Fig 3: Selecting F0: Rear Window Defog Test

   Courtesy of ISUZU MOTOR CO.
6. Push "On" soft key.
7. Control Fuel Pump Relay and check data list.
8. If the data list changes, the Fuel Pump Relay is normal.
9. Select F1: A/C Clutch Relay.
10. Run Engine at idle.
11. Turn on Air Conditioning.
12. Push "On" and "Off" soft keys.
13. Control A/C Clutch Relay and check data list.
14. If the data list changes, the Fuel Pump Relay is normal.
