Instrument Test

This test is conducted check Instrument for proper operation.

Tech 2 must be used for this test.

Test Procedure:

1. Connect Tech 2 to the vehicle DLC.
2. Ignition SW is "On".
3. Select F3: Miscellaneous Test in the Application Menu.
   Fig 1: Selecting F3: Miscellaneous Test In Application Menu

   Courtesy of ISUZU MOTOR CO.
4. Select F6: Instrument Test in the Miscellaneous Test.

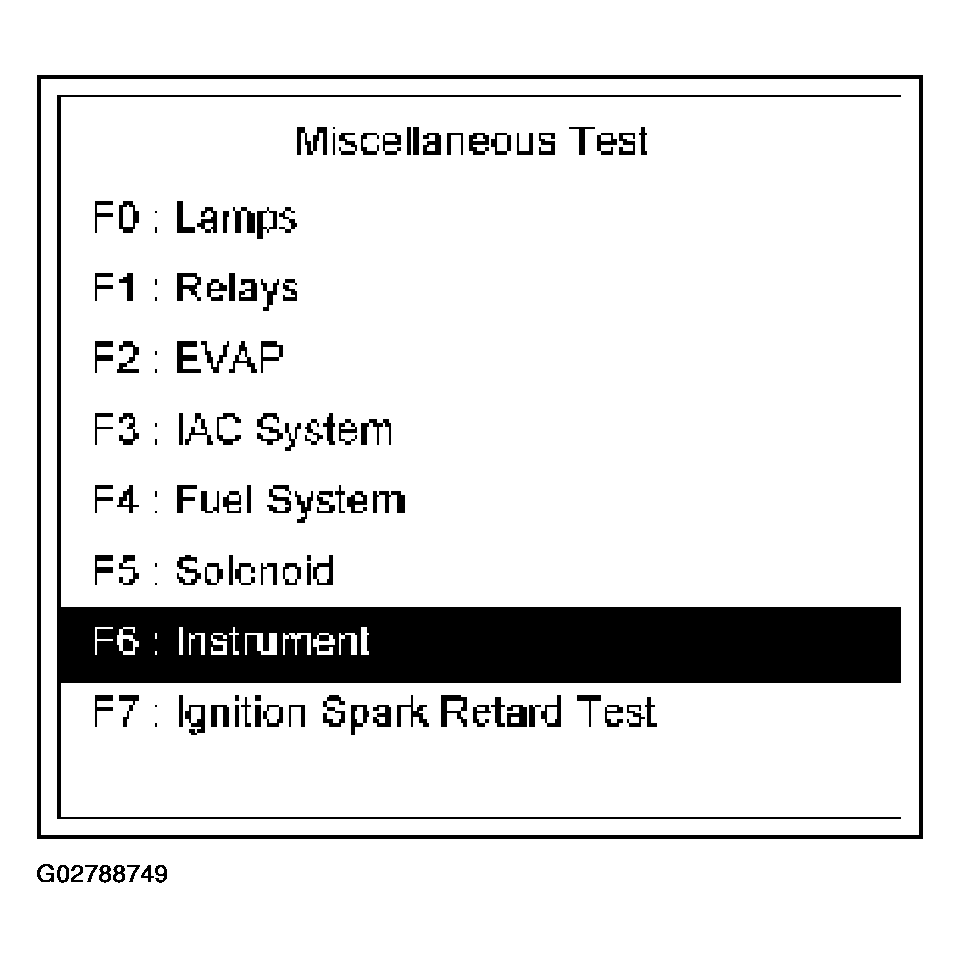

   Fig 2: Selecting F6: Instrument Test In Miscellaneous Test

   Courtesy of ISUZU MOTOR CO.
5. Push "On" or "Off" soft key.
6. Control Instrument and check data list.
7. If data list changes, the VIM Solenoid is normal.
