Idle Air Control System Test

This test is conducted to check IAC system for proper operation.

Tech 2 must be used for this test.

Test Procedure:

1. Connect Tech 2 to the vehicle DLC.
2. Run the Engine at idle.
3. Select F3: Miscellaneous Test in the Application Menu.

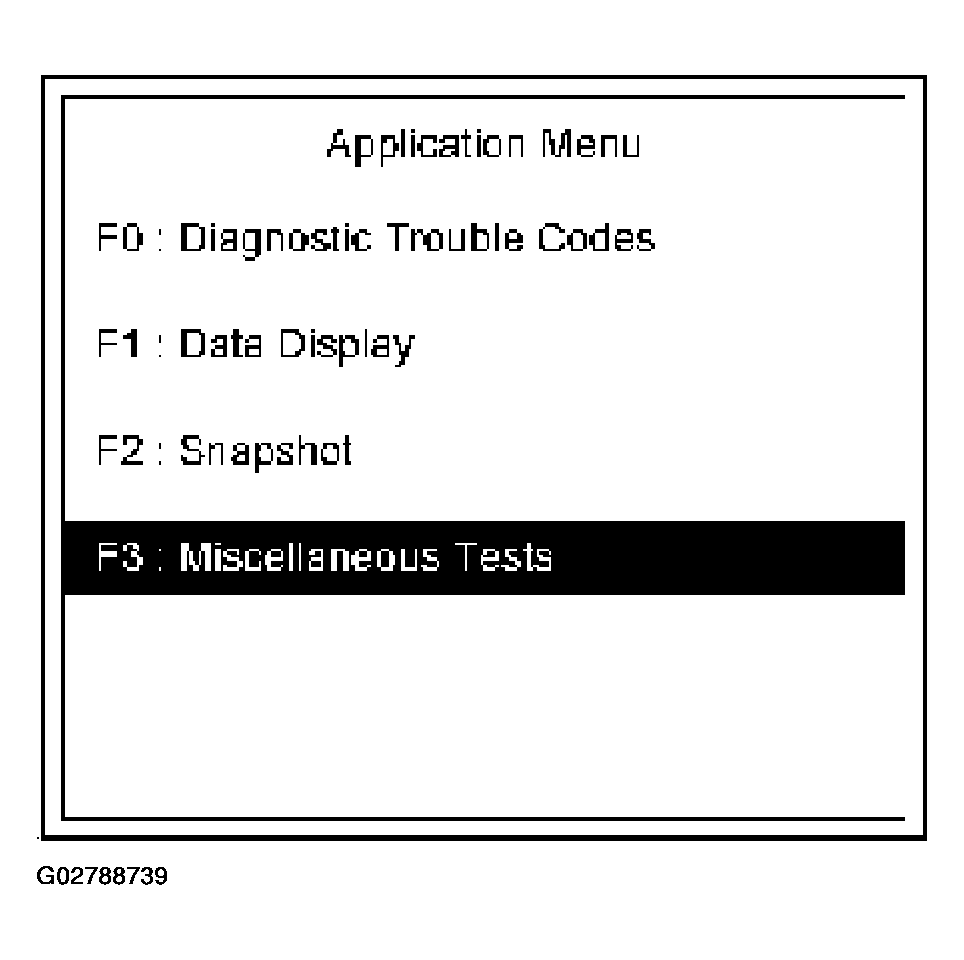

   Fig 1: Selecting F3: Miscellaneous Test In Application Menu

   Courtesy of ISUZU MOTOR CO.
4. Select F3: IAC System Test in the Miscellaneous Test.

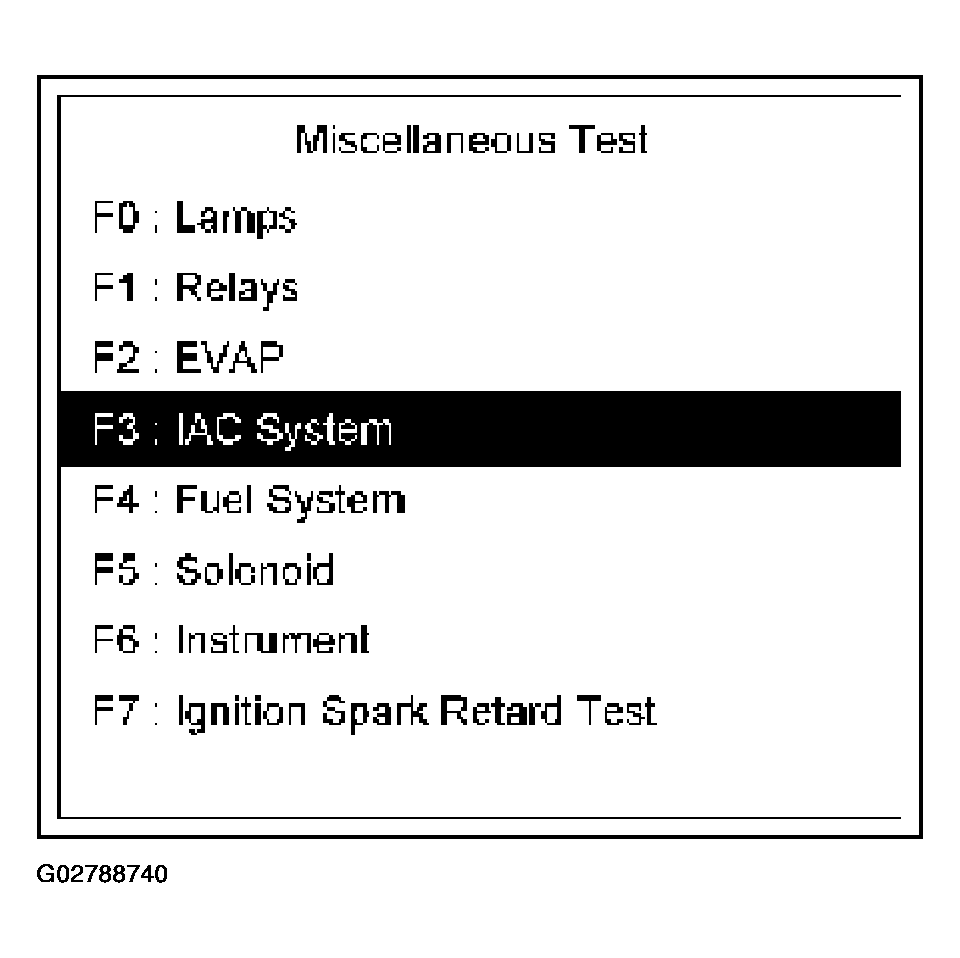

   Fig 2: Selecting F3: IAC System Test In Miscellaneous Test

   Courtesy of ISUZU MOTOR CO.
5. Select F1: IAC Control Test.

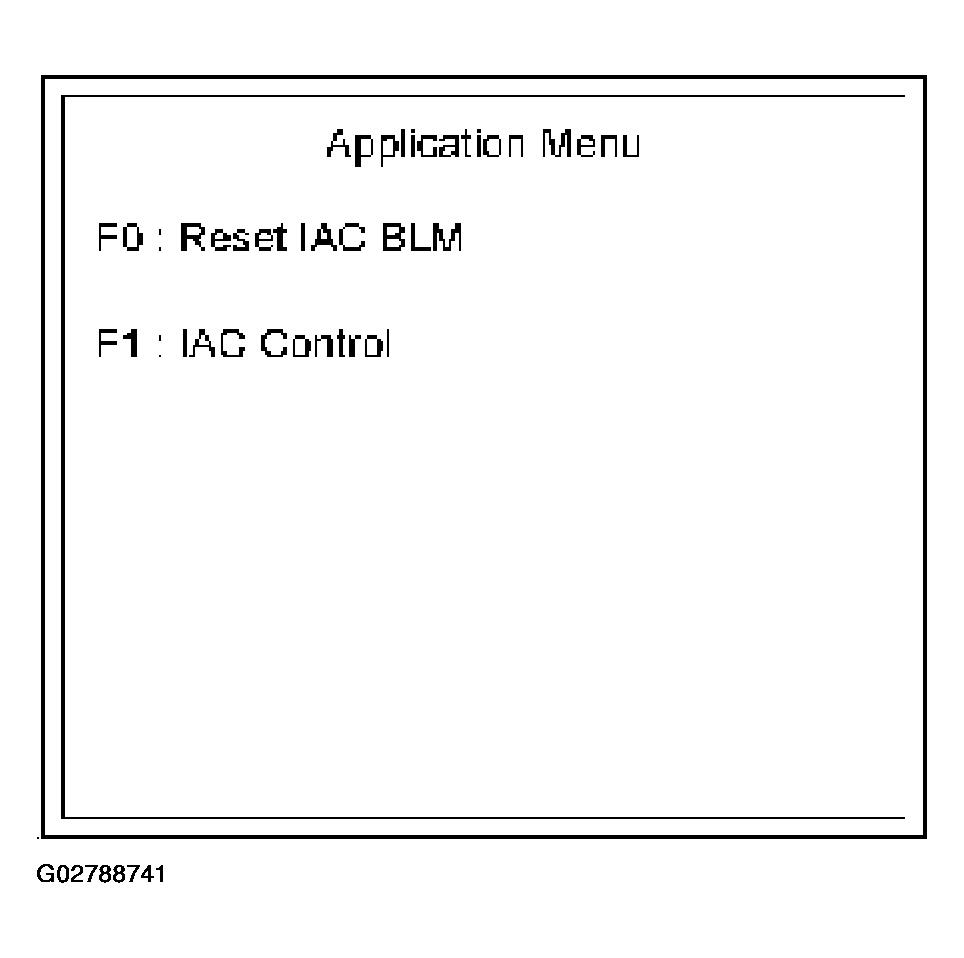

   Fig 3: Selecting F1: IAC Control Test

   Courtesy of ISUZU MOTOR CO.
6. Push "Decrease" or "Increase" soft key.
7. Control IAC system and check data list.
8. If the data list changes, the IAC Control is normal.
9. Select F0: IAC Control.
10. Push "Decrease" or "Increase" soft key.
11. Control RPM and check data list.
12. If the data list changes, the RPM Control is normal.
13. Select F2: Reset IAC BLM.
14. Push "Reset IAC" soft key.
15. Control IAC Reset and check data list.
16. If data list changes, the IAC has been Reset.
