Getting Started

Before operating the Isuzu PCMCIA card with the Tech 2, the following steps must be performed:
1. The Isuzu 98 System PCMCIA card (1) inserts into the Tech 2 (5).
2. Connect the SAE 16/19 adapter (3) to the DLC cable (4).
3. Connect the DLC cable to the Tech 2 (5).
4. Make sure the vehicle ignition is off.
5. Connect the Tech 2 SAE 16/19 adapter to the vehicle DLC.
6. Turn on the vehicle ignition.
7. Power the Tech 2 On and verify the Tech 2 power up display.

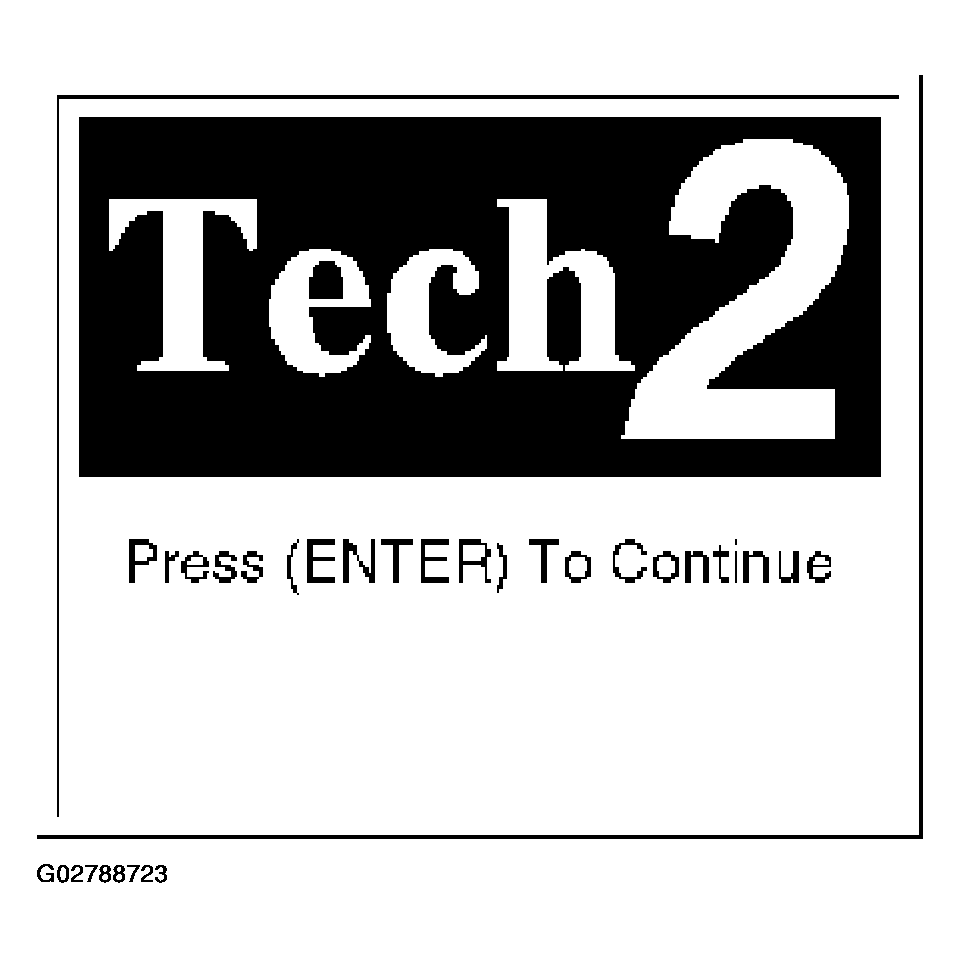

Fig 1: Identifying Tech 2 Power Up Display

G02788723

Courtesy of ISUZU MOTOR CO.

NOTE: The RS232 Loop back connector is only to use for diagnosis of Tech 2. Refer to user guide of the Tech 2.
