EVAP Test

This test is conducted to check EVAP system for proper operation.

Tech 2 must be used for this test.

Test Procedure:

1. Connect Tech 2 to the vehicle DLC.
2. Run the Engine at idle.

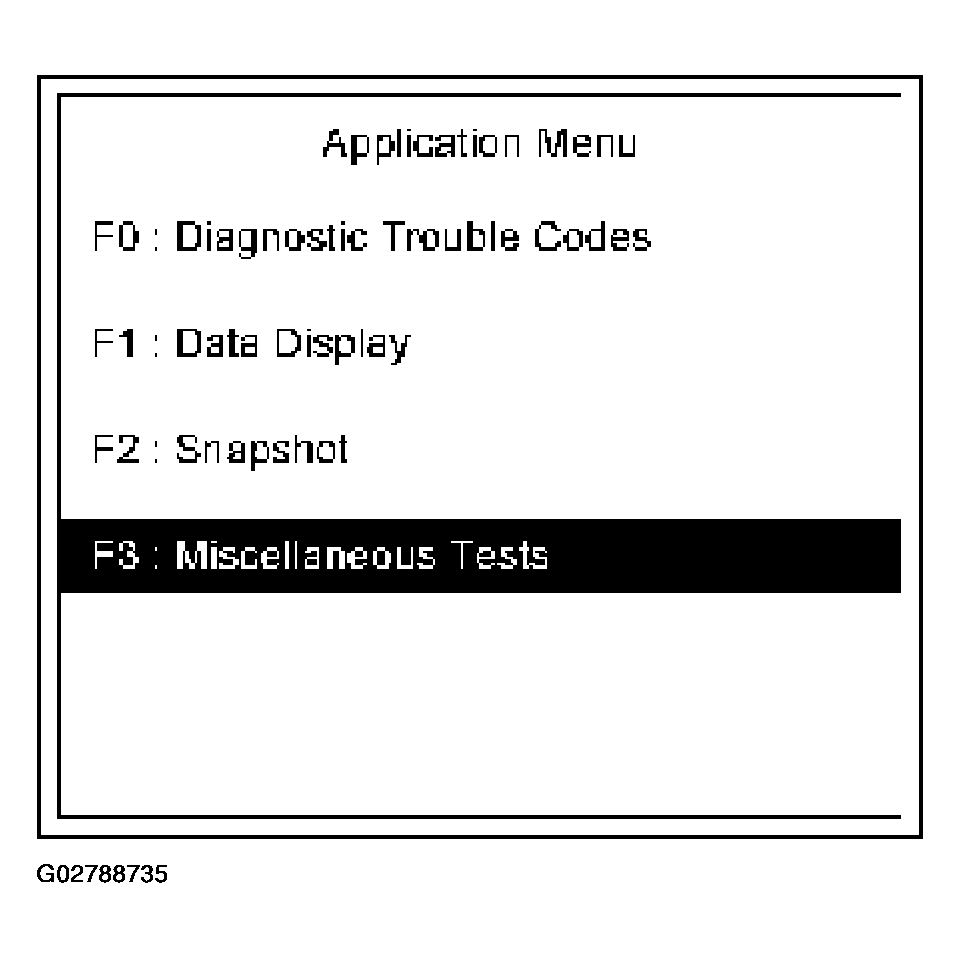

3. Select F3: Miscellaneous Test in the Application Menu.
   Fig 1: Selecting F3: Miscellaneous Test In Application Menu

   Courtesy of ISUZU MOTOR CO.

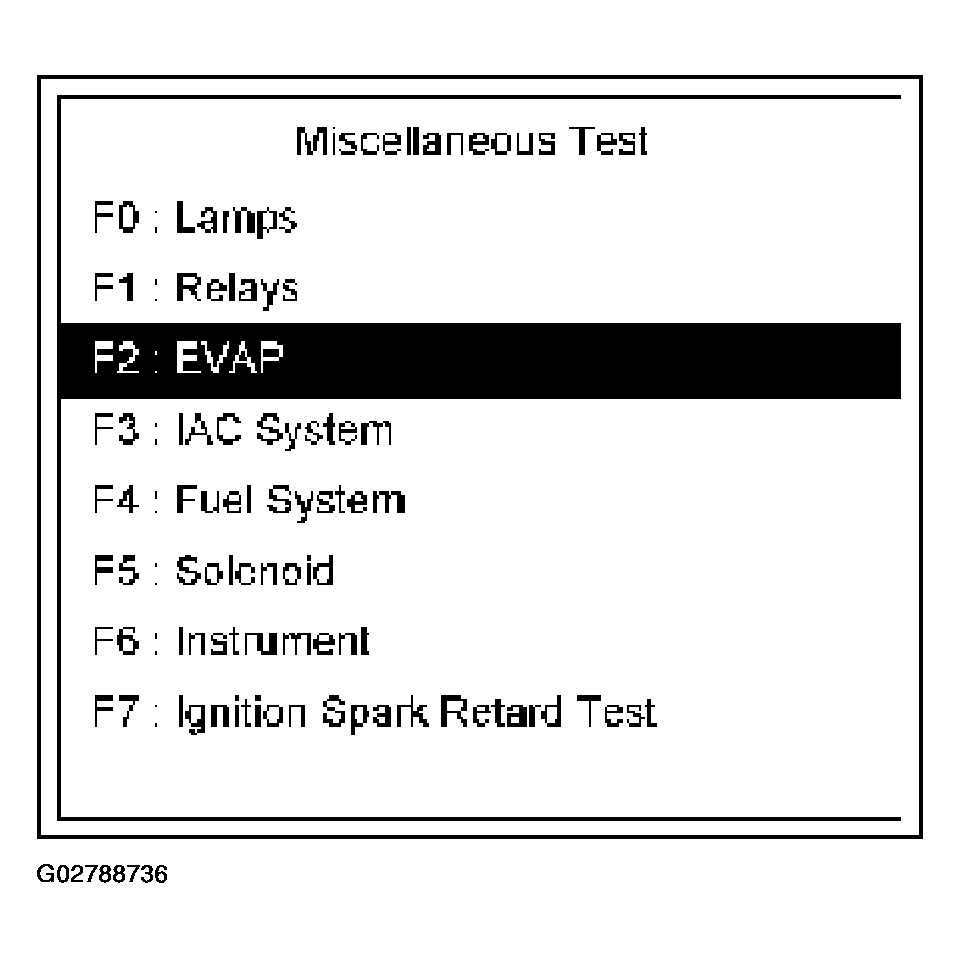

4. Select F2: EVAP Test in the Miscellaneous Test.
   Fig 2: Selecting F2: EVAP Test In Miscellaneous Test

   Courtesy of ISUZU MOTOR CO.

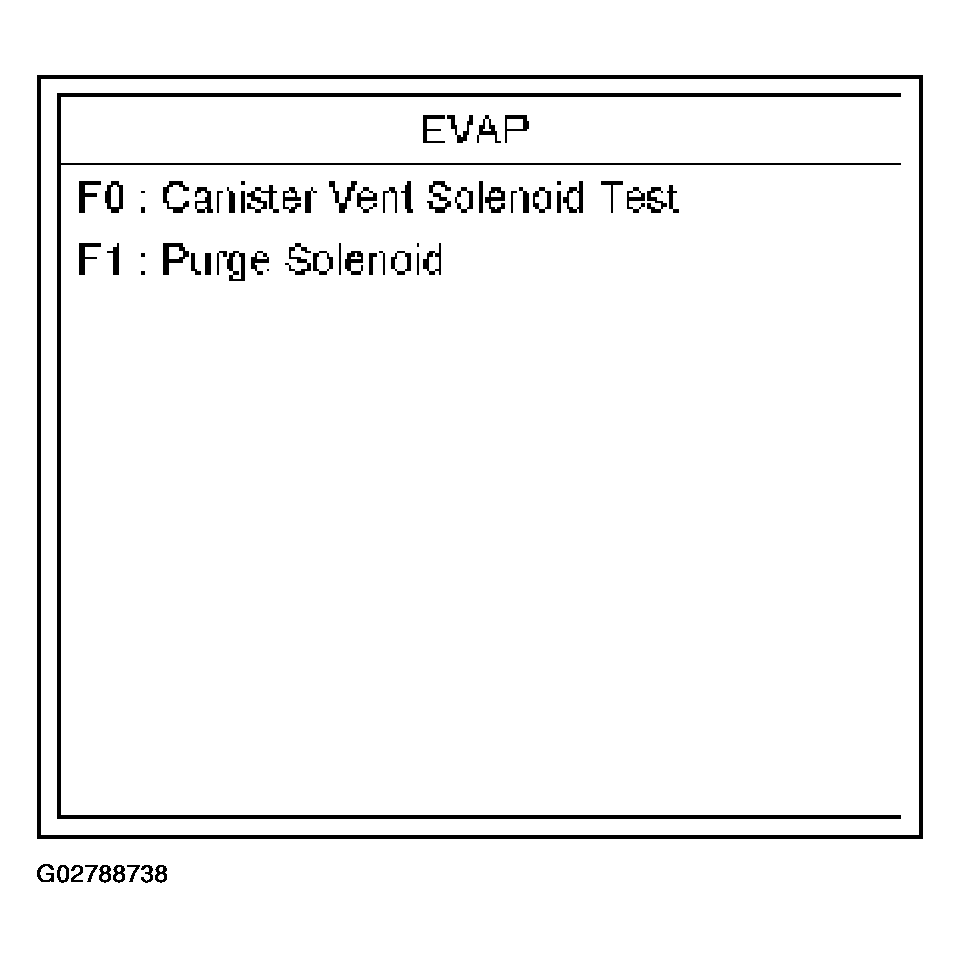

5. Select F1: Purge Solenoid.
   Fig 3: Selecting F1: Purge Solenoid

   Courtesy of ISUZU MOTOR CO.
6. Push "Decrease" or "Increase" soft key.
7. Control EVAP Purge Solenoid and check data list.
8. If the data list changes, the Purge Solenoid is normal.
9. Turn engine off, turn ignition SW "On".
10. Select F0: Canister Vent Solenoid Test.
    Fig 4: Selecting F0: Canister Vent Solenoid Test

    Courtesy of ISUZU MOTOR CO.
11. Push "On" or "Off" soft key.
12. Control EVAP Vent Solenoid and check data list.
13. If the data list changes, the EVAP Vent Solenoid is normal.
