Basic Diagnosis Procedure

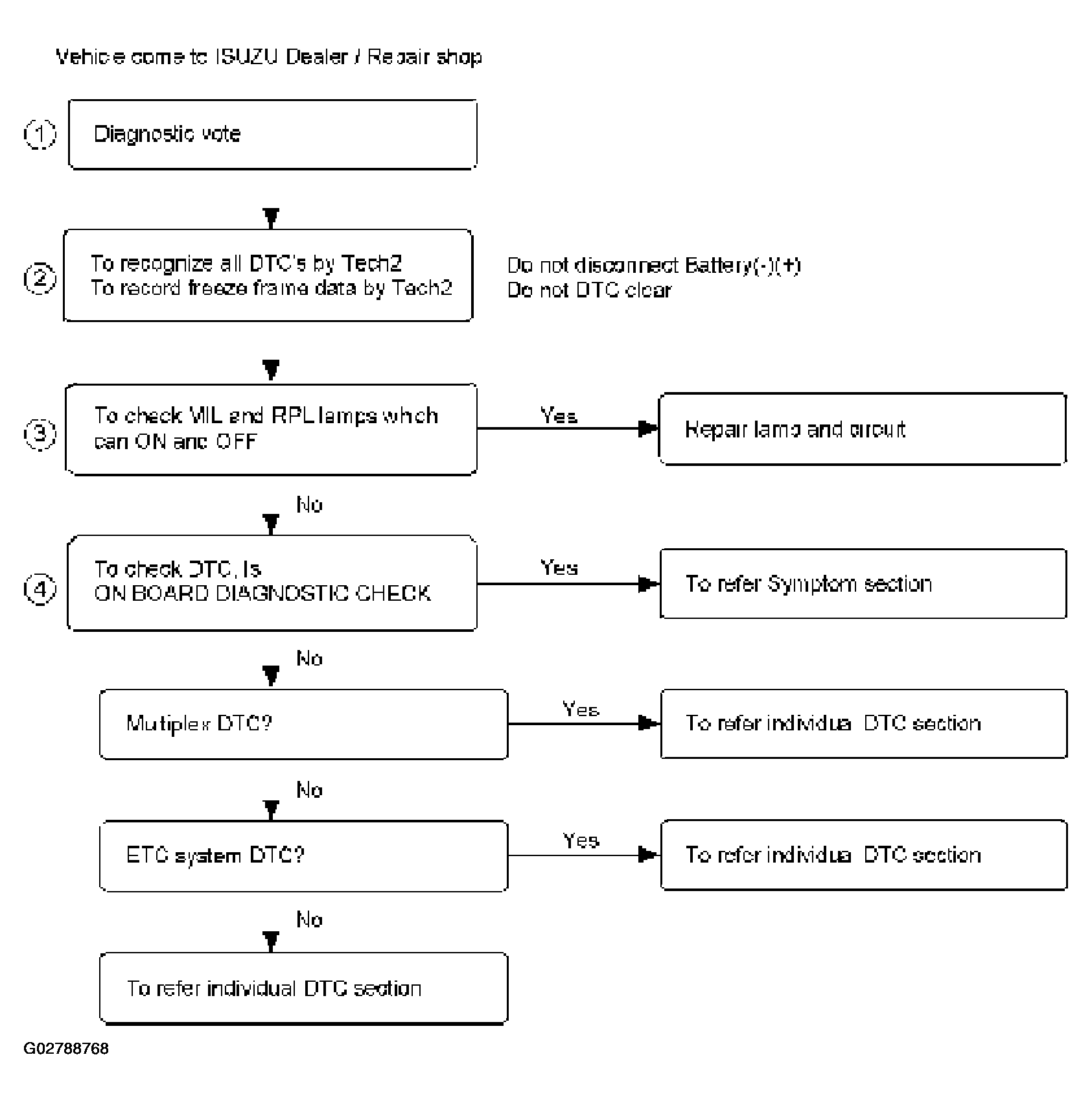

Fig 1: Identifying Basic Diagnosis Procedure
G02788768Courtesy of ISUZU MOTOR CO.
