(A) Advance (Initial Position)

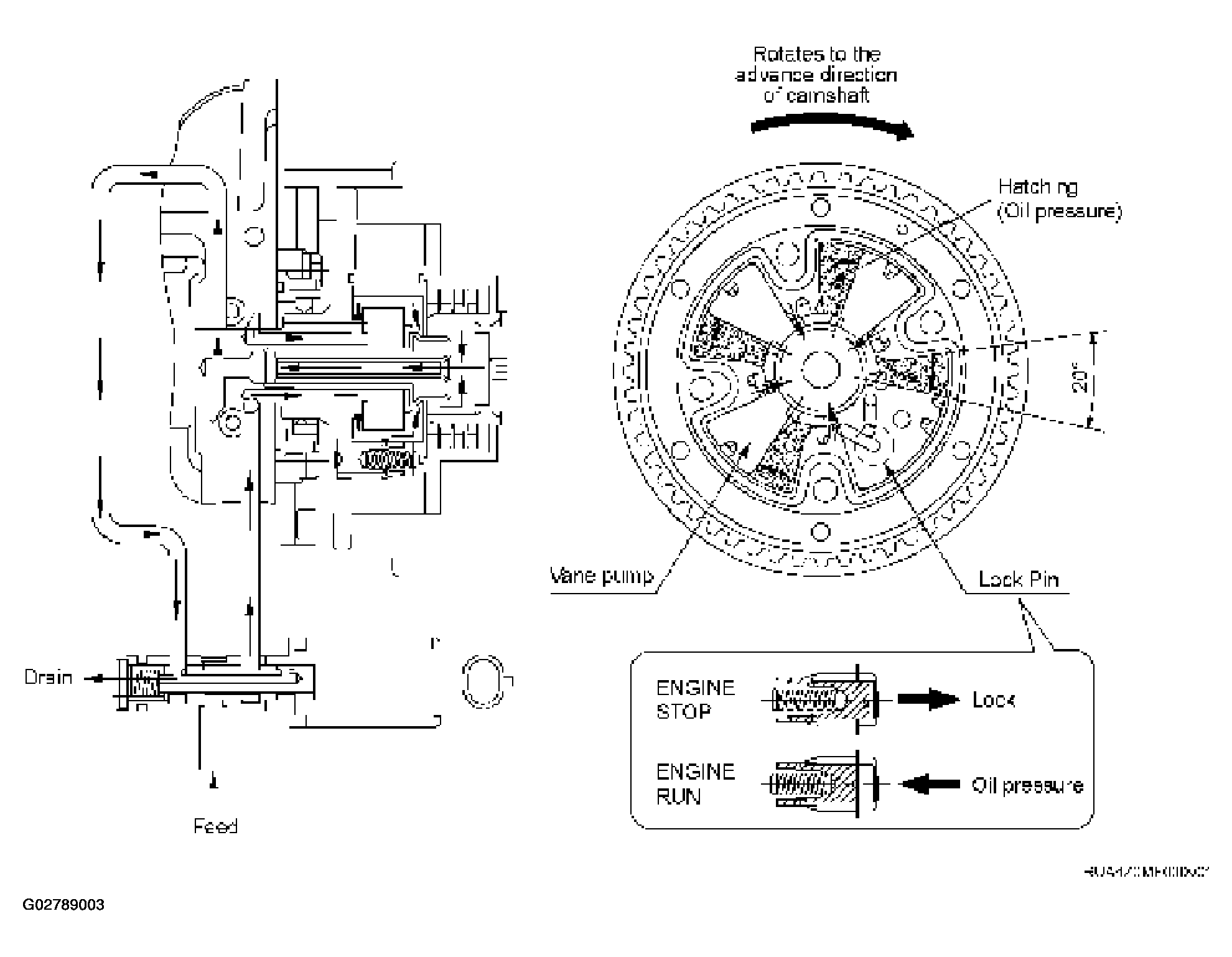

The spool valve moves to right-hand side, the vane pump rotates to advance side.

Fig 1: Identifying Spool Valve Moves To Right-Hand Side

G02789003

Courtesy of ISUZU MOTOR CO.
