Throttle Body Unit

The throttle body has a throttle plate to control the amount of air delivered to the engine. The TP sensor are also mounted on the throttle body. TPS unit can not be taken off it self.

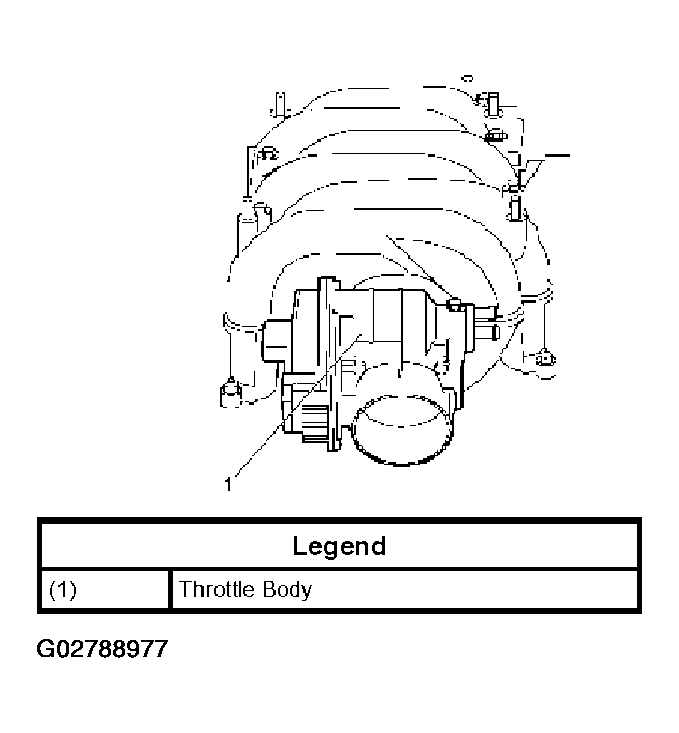

Fig 1: Identifying Throttle Body Unit
G02788977Courtesy of ISUZU MOTOR CO.
