Front Wheel Speed Sensor and Associated Parts

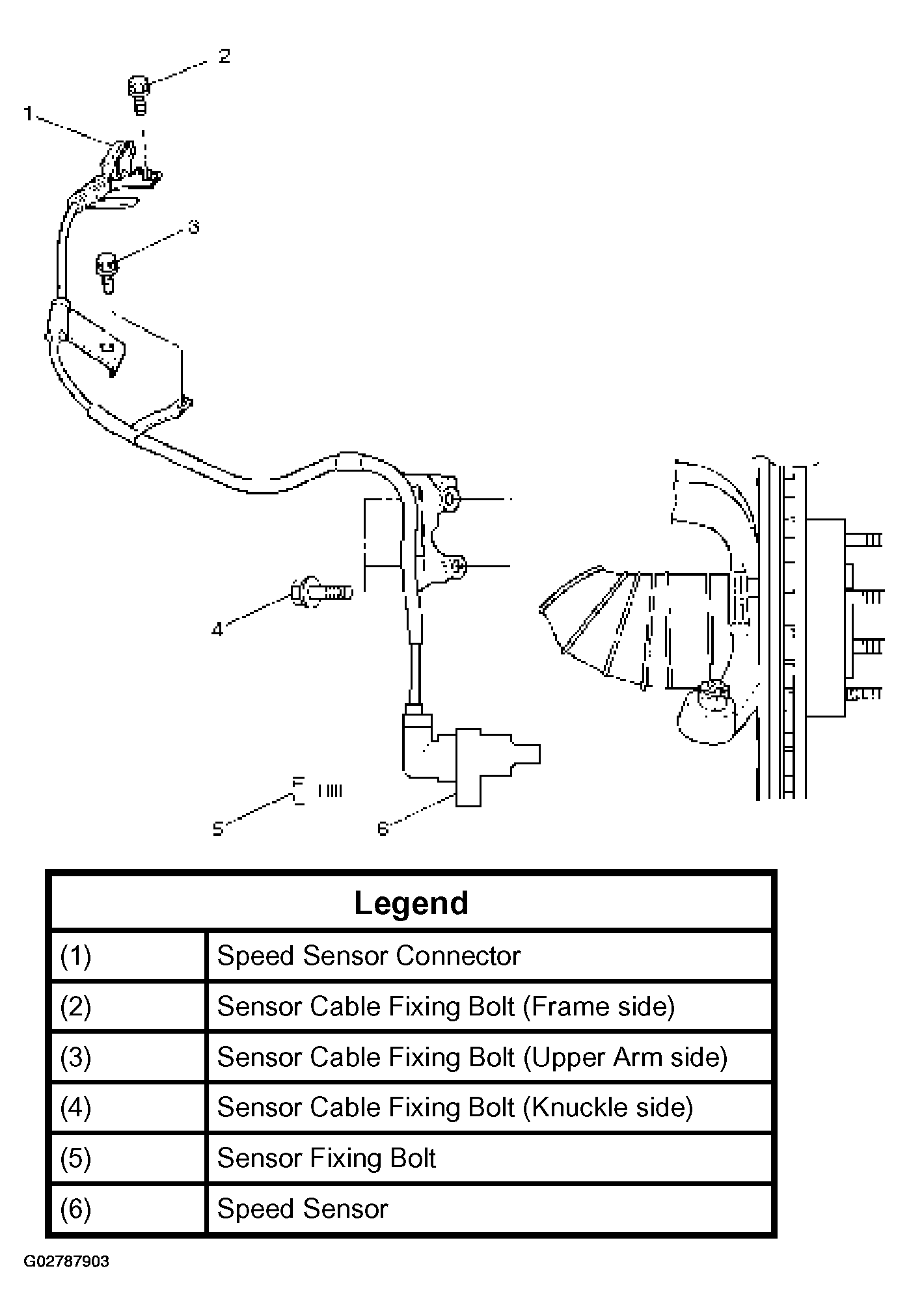

Fig 1: Identifying Front Wheel Speed Sensor & Associated Parts

G02787903

Courtesy of ISUZU MOTOR CO.
