Torque Specifications

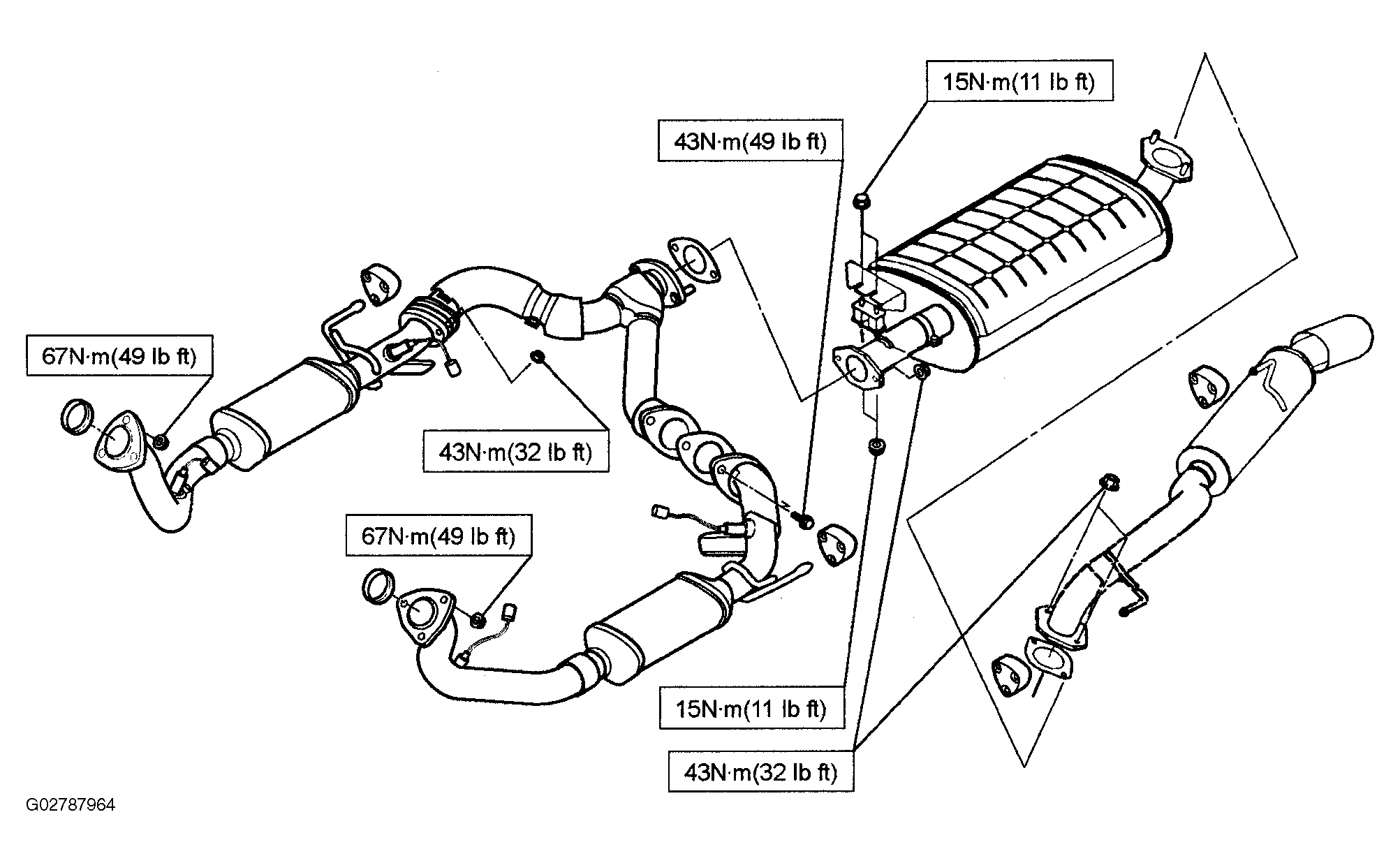

Fig 1: Rear Exhaust Pipe And Associated Parts With Torque Specifications

G02787964

Courtesy of ISUZU MOTOR CO.
