Home >> Isuzu >> 2004 >> Ascender S, 4WD >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transmission, 4L60-E/4L65-E (Introduction) >> Repair Instructions >> Torque Converter Installation >> Procedure

Torque Converter Installation: Procedure

    CAUTION: The torque converter weighs approximately 65 lbs. Personal injury may result if you lift the torque converter improperly.

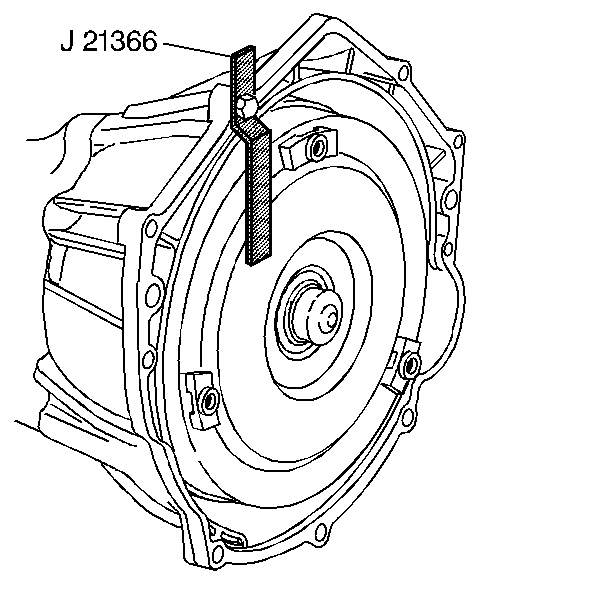

    Fig 1: Installing Torque Converter
    GM283776Courtesy of GENERAL MOTORS CORP.
  1. Install the torque converter.
  2. Install the J 21366 .
