Transfer Case Control Component Views

Fig 1: Front Axle Actuator, Lower Right Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Chassis Harness
2	Front Axle Actuator

Fig 2: Instrument Carrier Support, Lower Left Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Transfer Case Shift Control Module
2	Instrument Carrier Support, Left Side

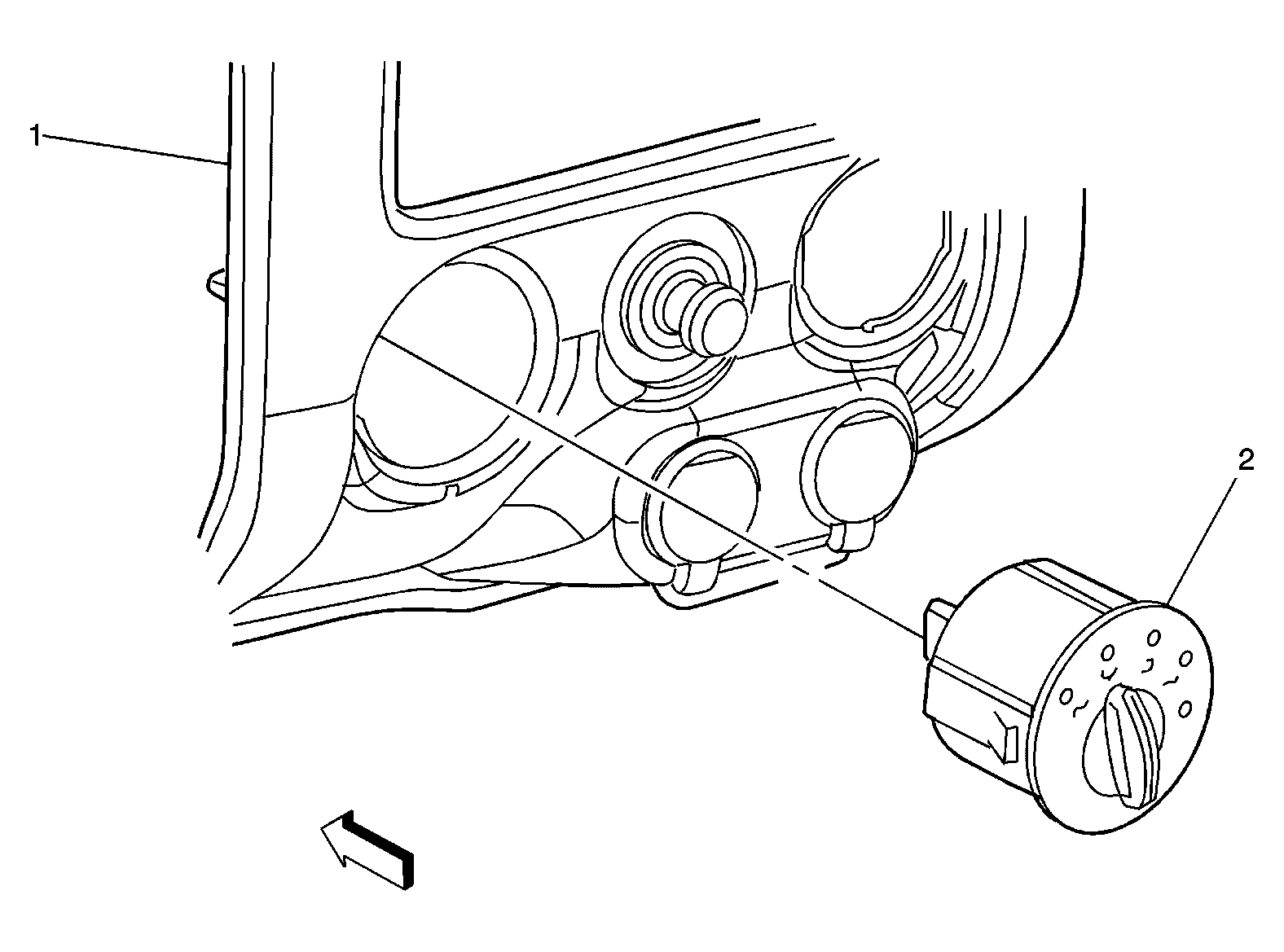

Fig 3: Transfer Case Select Switch Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	I/P Trim Panel
2	Transfer Case Select Switch

Fig 4: Transfer Case Electrical Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Motor Encoder Connector
2	Propshaft Speed Sensor (VSS)-RR
3	Vehicle Speed Sensor (VSS)
4	Propshaft Speed Sensor (VSS)-LF
5	C310
