Power Window Schematics

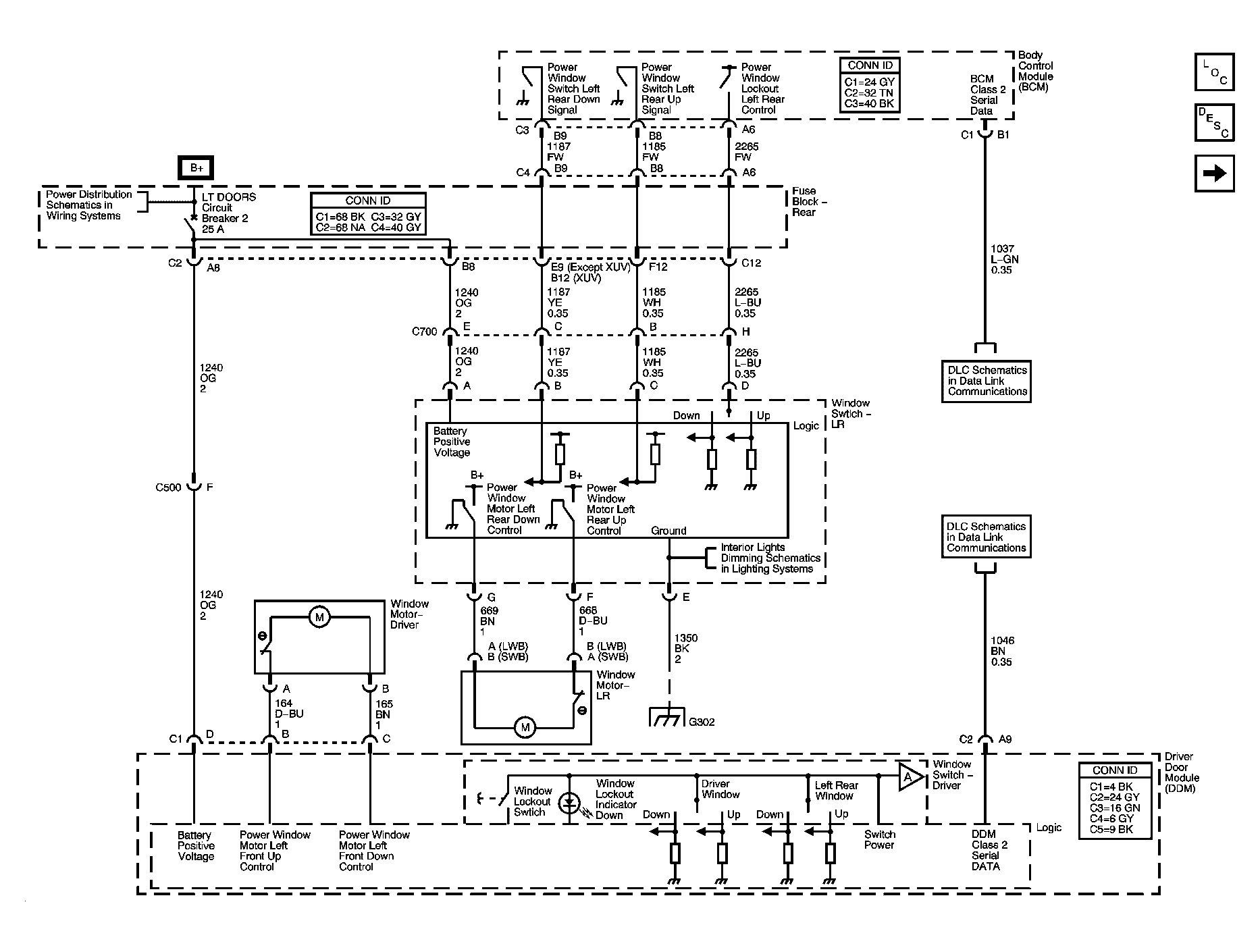

Fig 1: Power Window Schematic (Left)

GM1350235

Courtesy of GENERAL MOTORS CORP.

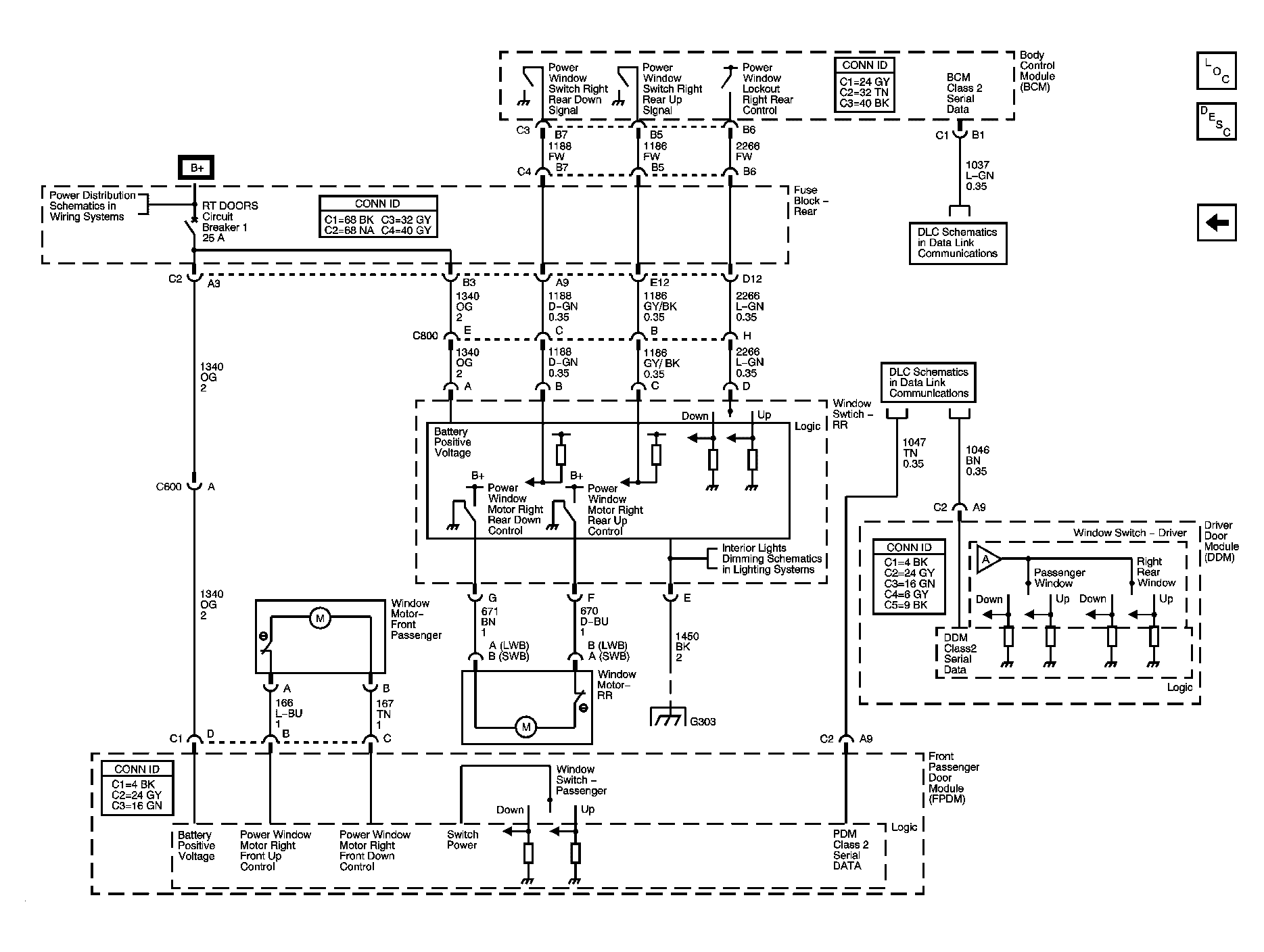

Fig 2: Power Window Schematic (Right)

GM1350236

Courtesy of GENERAL MOTORS CORP.
