Door Control Module Schematics

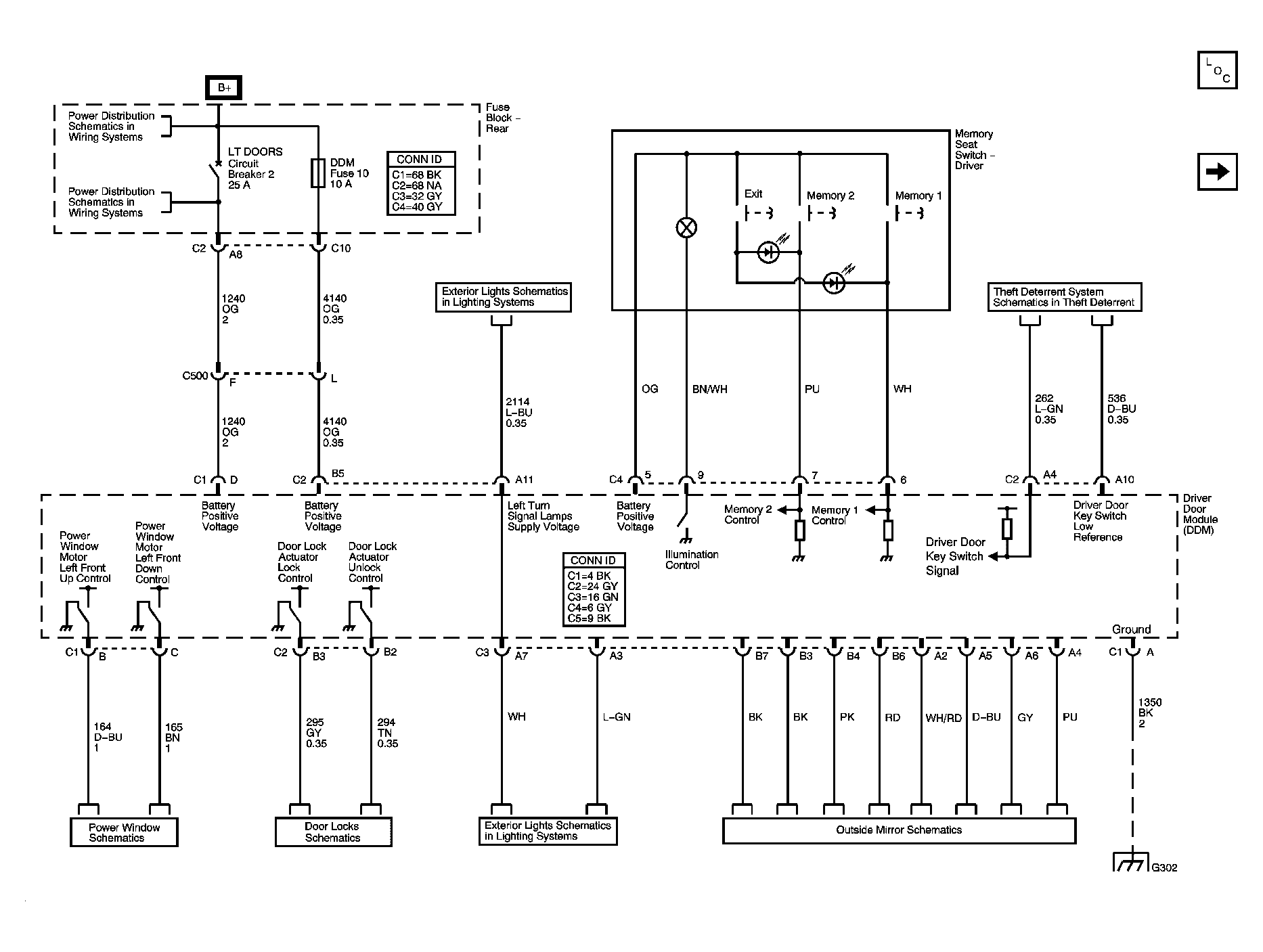

Fig 1: Driver - Power and Ground, and Subsystem References Schematic
GM1350261Courtesy of GENERAL MOTORS CORP.
Fig 2: Driver - Serial Data and Subsystem References Schematic
GM1350263Courtesy of GENERAL MOTORS CORP.

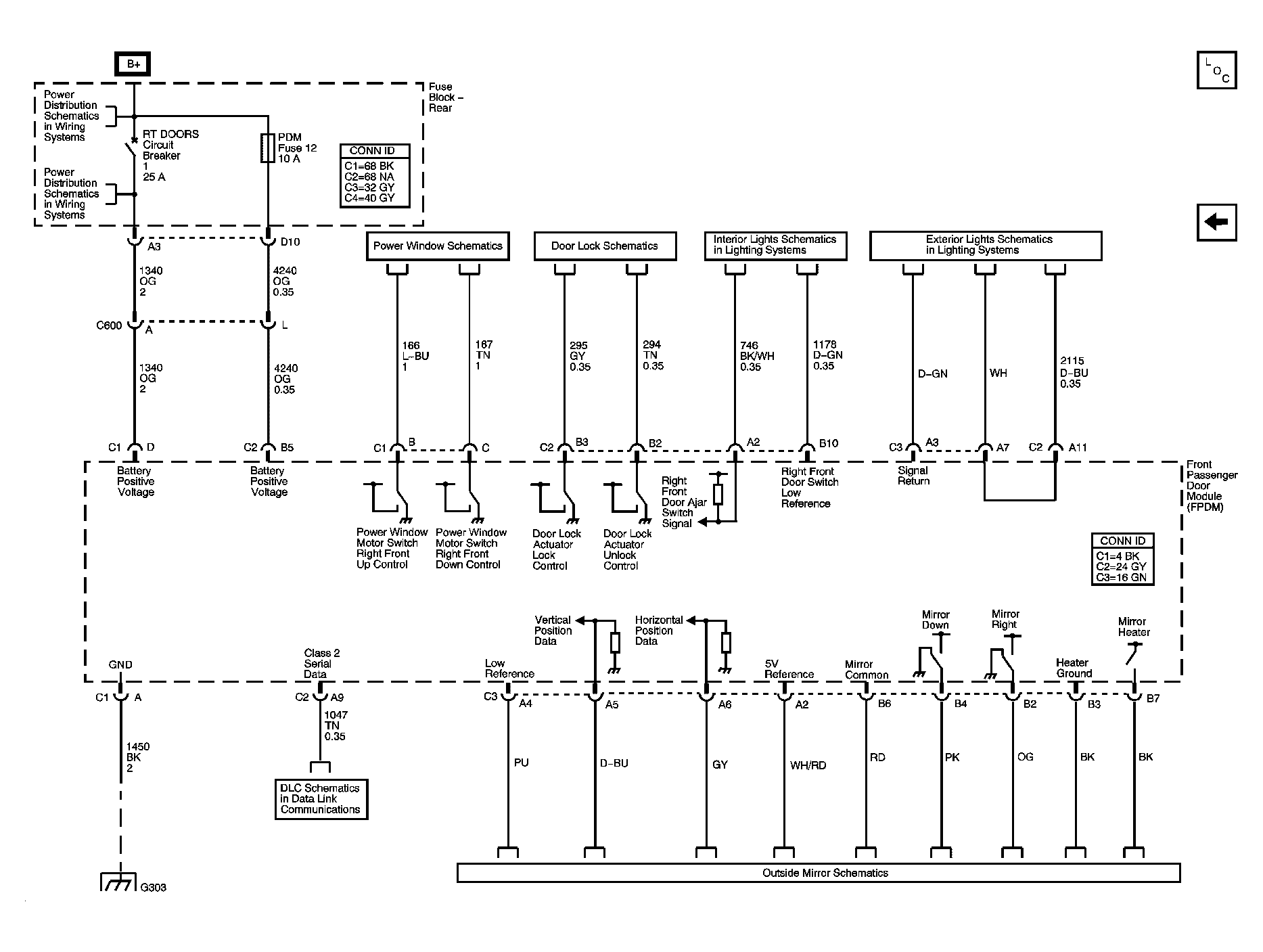

Fig 3: Front Passenger Schematic
GM1350264Courtesy of GENERAL MOTORS CORP.
