Wiper/Washer System Component Views

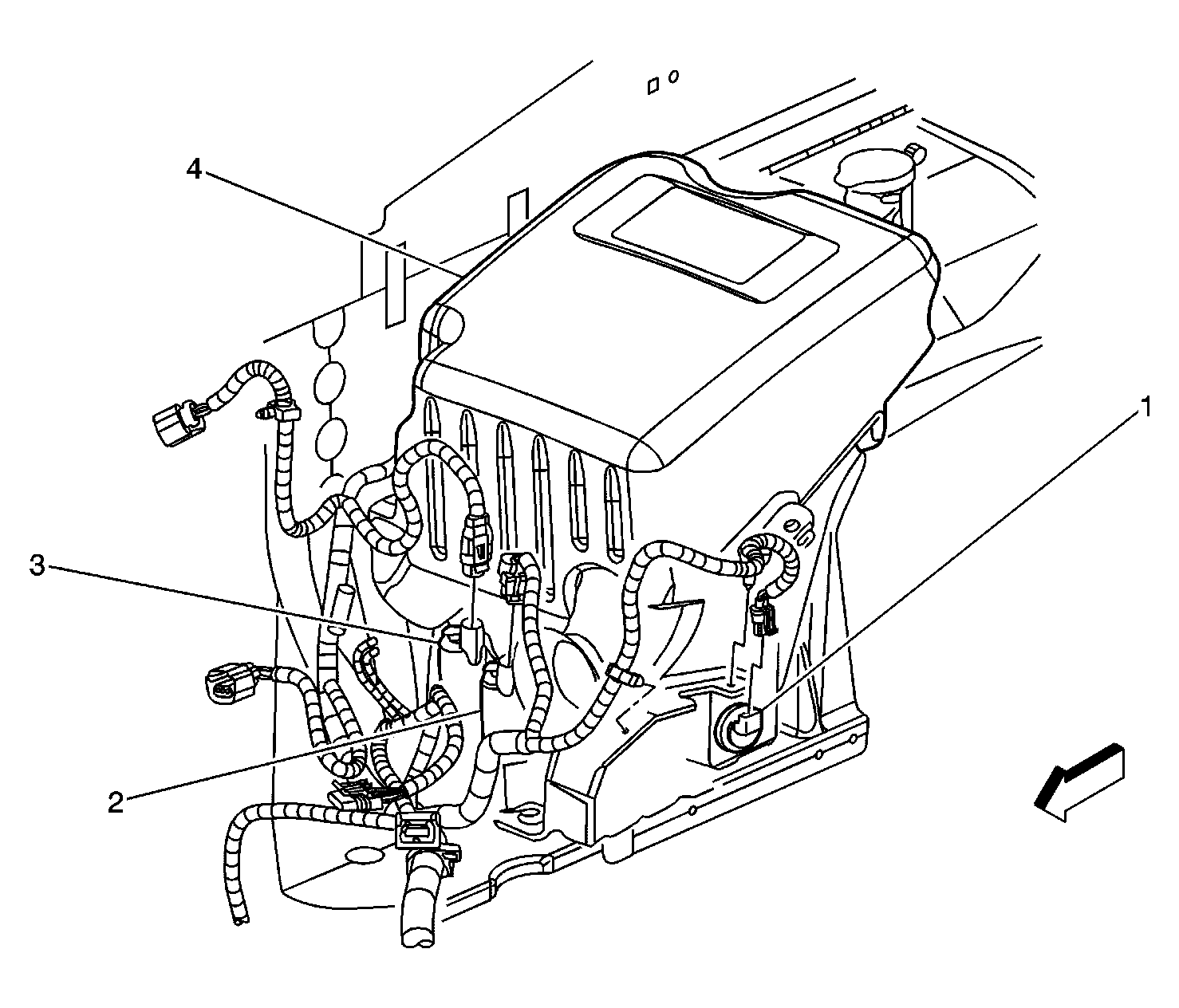

Fig 1: Windshield Washer Fluid Reservoir Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Windshield Washer Fluid Level Switch
2	Windshield Washer Fluid Pump
3	Rear Window Washer Fluid Pump
4	Air Cleaner Housing

Fig 2: Windshield Wiper Motor Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Instrument Panel Harness
2	Windshield Wiper Motor

Fig 3: Outside Moisture Sensor Component View (CE1)

Courtesy of GENERAL MOTORS CORP.

Fig 4: Windshield Wiper Switch Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Windshield Wiper Switch
2	C201

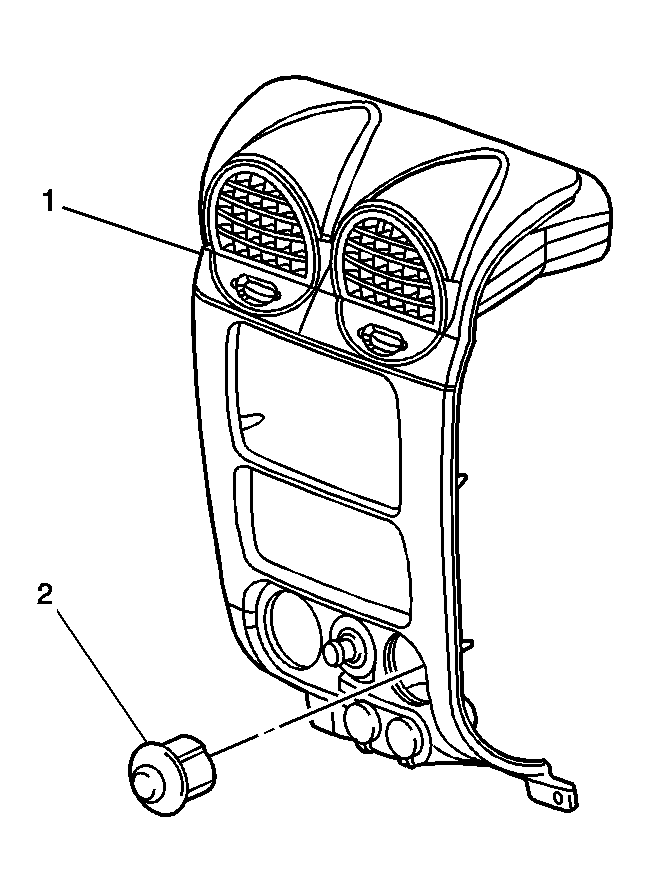

Fig 5: Rear Window Wiper/Washer Switch Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Trim Panel
2	Rear Window Wiper/Washer Switch

Fig 6: Rear Window Wiper Motor Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Liftgate
2	Rear Wiper Motor
