Valve Body Assembly (Main Case): Installation

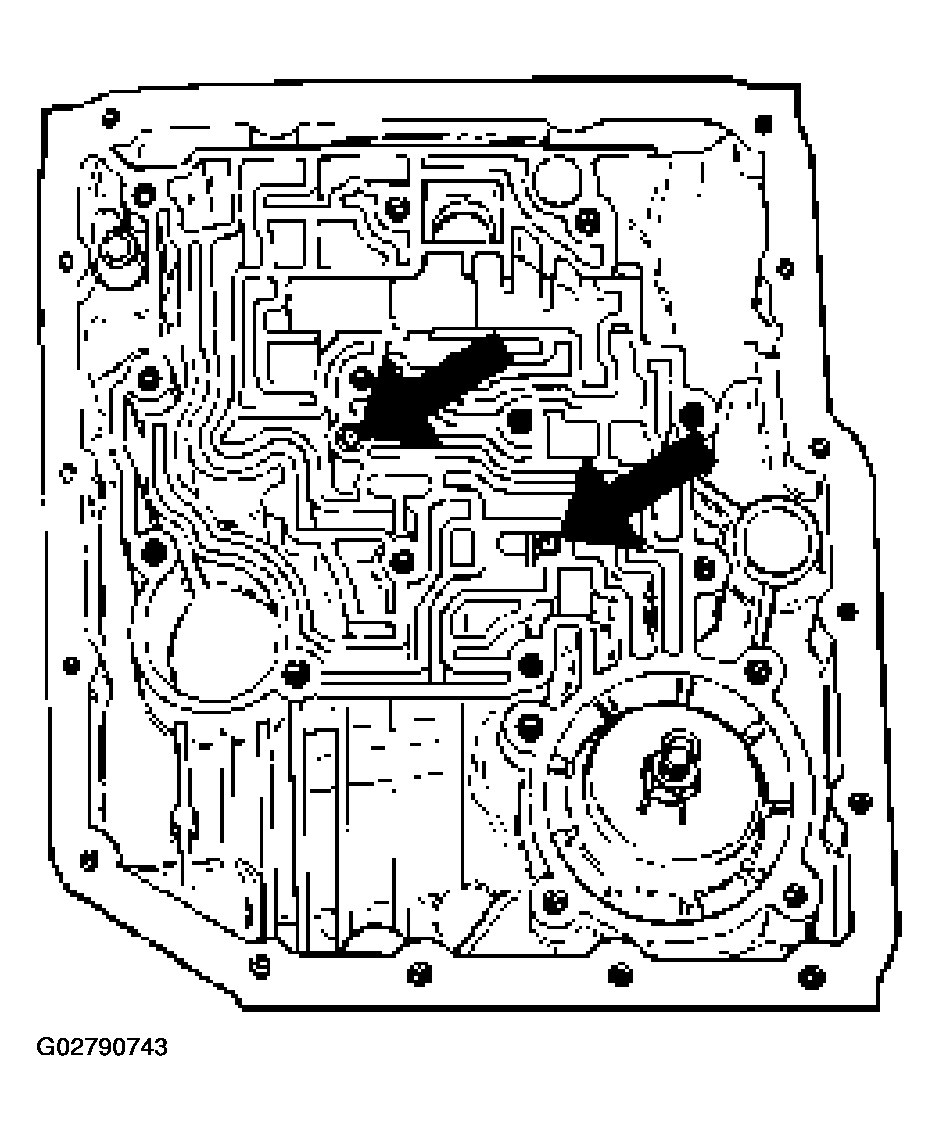

- Install two check balls to main case.
- Inspect electrical 7 way (V6) pin connector and seal of main case. Replace if necessary.
- Use two J-25025- B guide pin to install main case.
- Install valve body complete assembly and manual valve link.

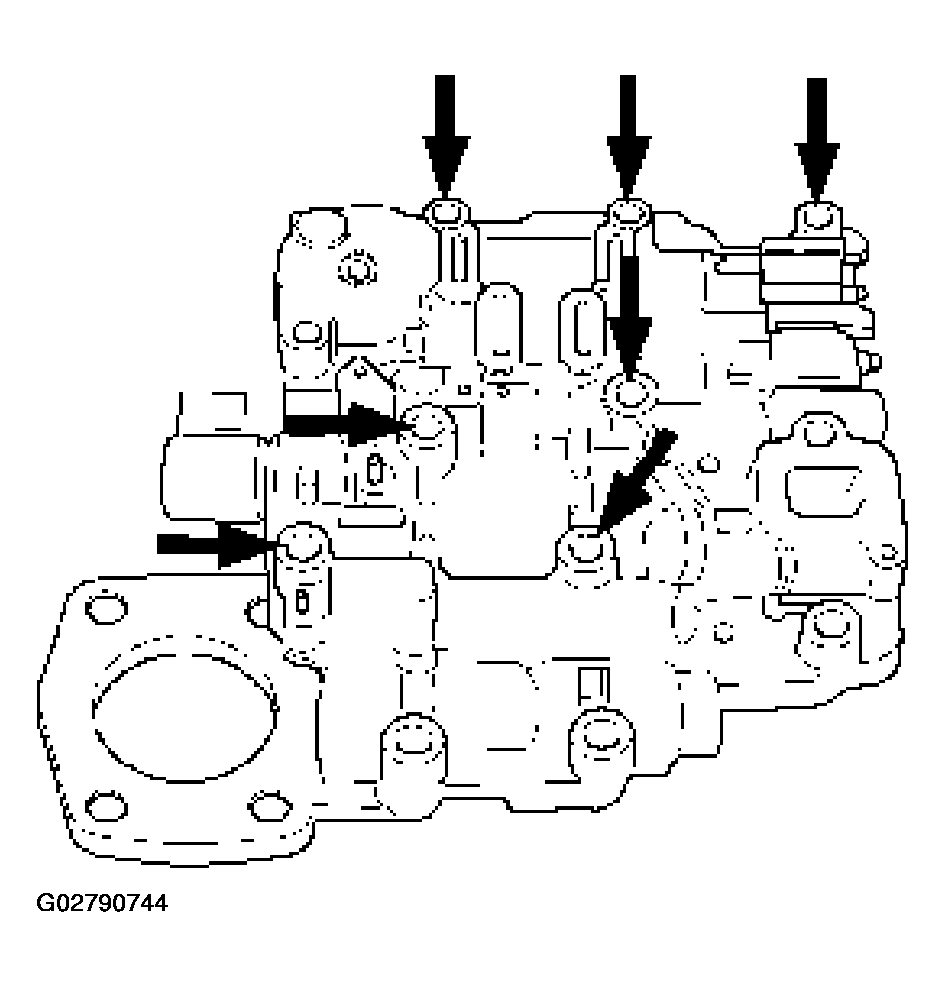

NOTE: Valve must be extended as the short end of manual valve link is connected to the range selector lever. Long end of link goes into valve. - Install seven 13 mm screws, and tighten them to the specified torque.
- Torque: 20 N.m (15 lb ft)
- Install 8.5 mm connector of ground wire under the head of this valve body bolt and reinstall it. Tighten the bolt to the specified torque (HEC).
- Torque: 20 N.m (15 lb ft)
- Remove two guide pins from main case.
- Install servo cover gasket, cover, and four 13 mm screws. Tighten the screws to the specified torque.
- Torque: 25 N.m (18 lb ft)
- Connect wiring harness to band control and shift solenoids.
- Install roller and spring assembly to manual detent.
Install two 13 mm screws, and tighten them to the specified torque.
- Torque: 20 N.m (15 lb ft)
- Install Oil filter and three 13 mm screws. Tighten to the specified torque.
- Torque: 20 N.m (15 lb ft)
- Tighten Oil pan gasket, magnet, Oil pan and sixteen 10 mm screws. Tighten the screws to the specified torque.
- Torque: 11 N.m (96 lb in)
- Fill transmission through overfill screw hole of Oil pan., using ATF DEXRON®-III. Refer to CHANGING TRANSMISSION FLUID .
- Connect battery ground cable.
