Rear-Left Side: Removal

  1. Disconnect the battery ground cable.
  2. Remove the rear window regulator assembly (2).
  3. Remove the power window motor (1).
    • Remove three screws.

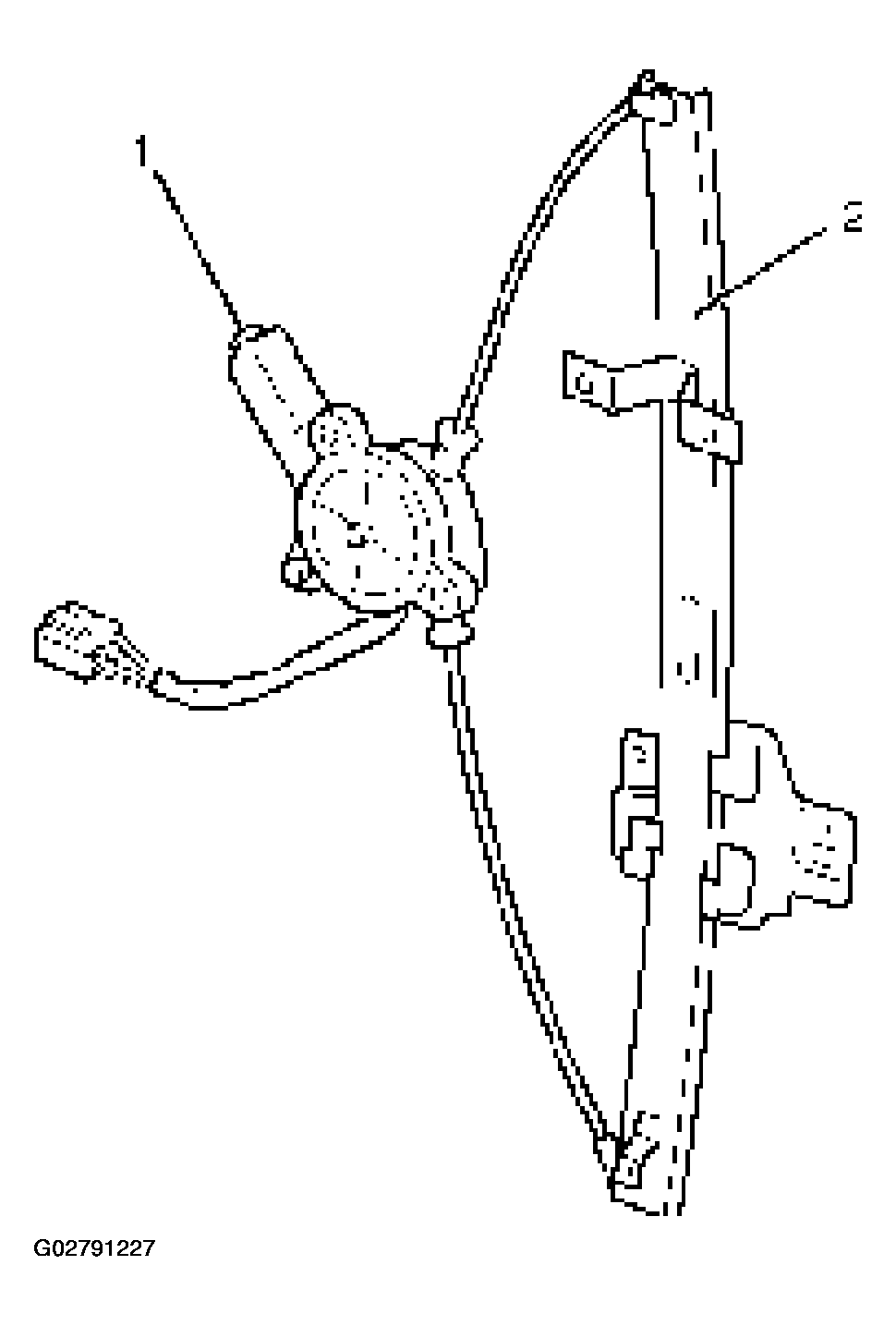

      Fig 1: Removing Power Window Motor (Rear-Left Side)
      G02791227Courtesy of ISUZU MOTOR CO.
