Clutch Control: Removal

  1. Disconnect the ground battery cable.
  2. Remove the instrument panel lower cover (7) and driver knee bolster panel assembly (8).

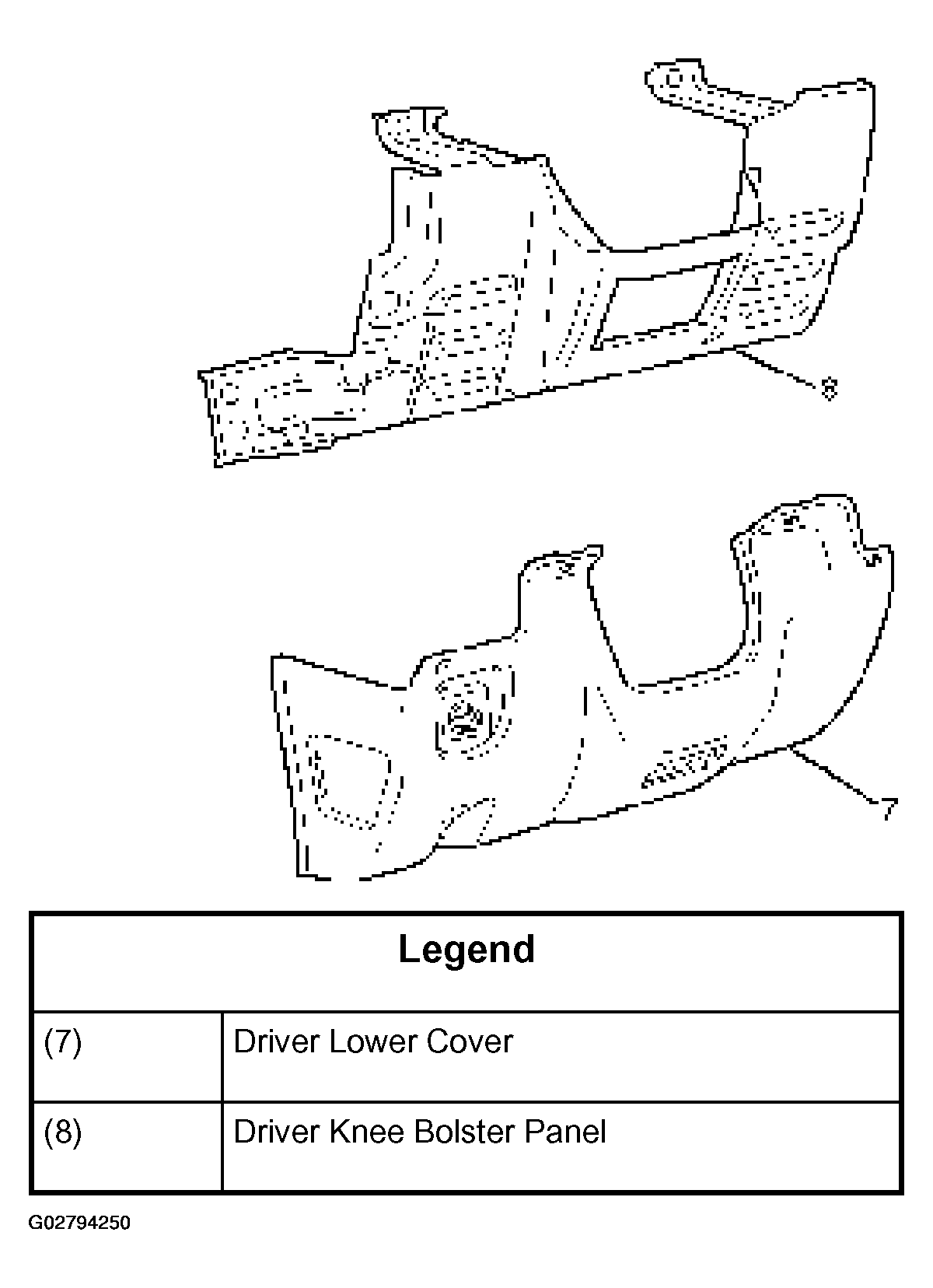

    Fig 1: Removing Instrument Panel Lower Cover
    G02794250Courtesy of ISUZU MOTOR CO.
  3. Remove pin and jaw joint pin (1).
  4. Remove pedal assembly and switch (2).
  5. Remove Oil line pipe (3).
  6. Remove slave cylinder assembly (4).

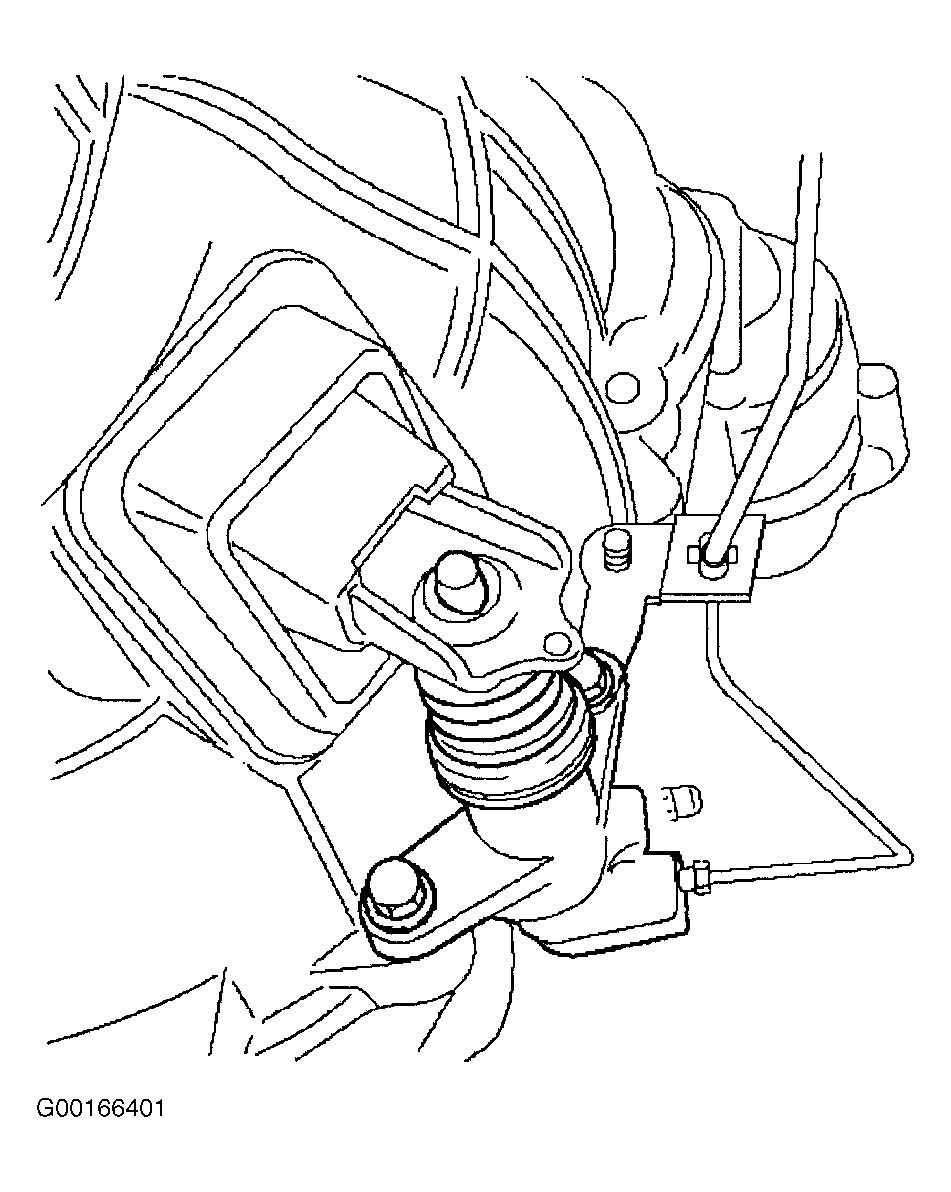

    Fig 2: Removing Slave Cylinder Assembly
    G00166401Courtesy of ISUZU MOTOR CO.
  7. Remove master cylinder assembly (5).
  8. Remove Oil line hose (6).
