Check Trans Indicator

WARNING: This page is about a different variant/trim than selected.

Find CHECK TRANS indicator and verify if it is

  1. Flashing: GOTO DIAGNOSTIC CHECK  .
  2. Staying on: GOTHROUGH CHECK TRANS CHECK  .
  3. Is never ON when the ignition key is turned on: GOTHROUGH CHECK TRANS CHECK
  4. Is ON during 2 to 3 seconds at ignition but OFF after: Normal operation. No DTC or malfunction.

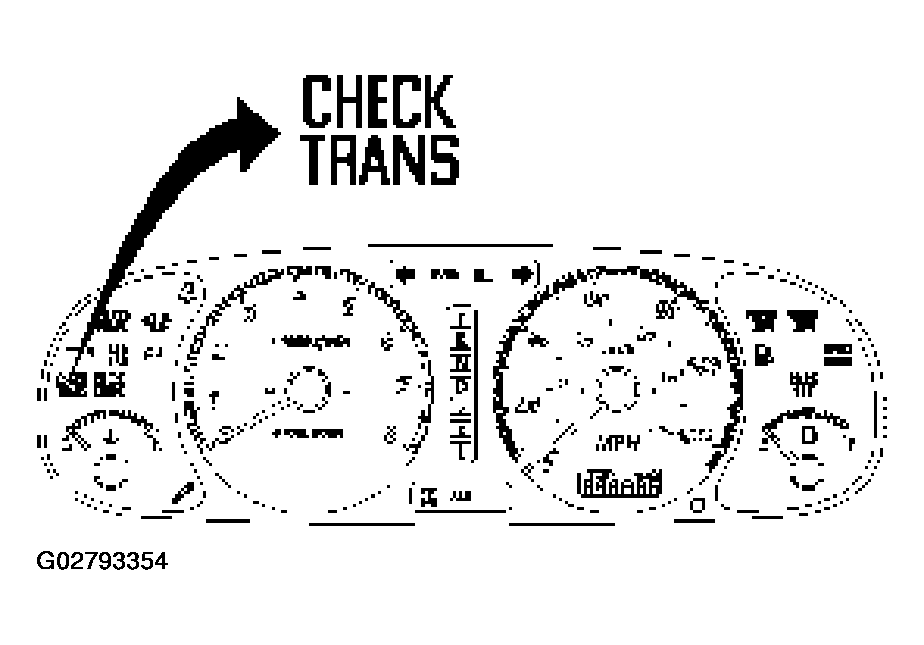

    Fig 1: Identifying Check Trans Indicator
    G02793354Courtesy of ISUZU MOTOR CO.
