DTC P1835: Kickdown Switch Always On: Notes

WARNING: This page is about a different variant/trim than selected.

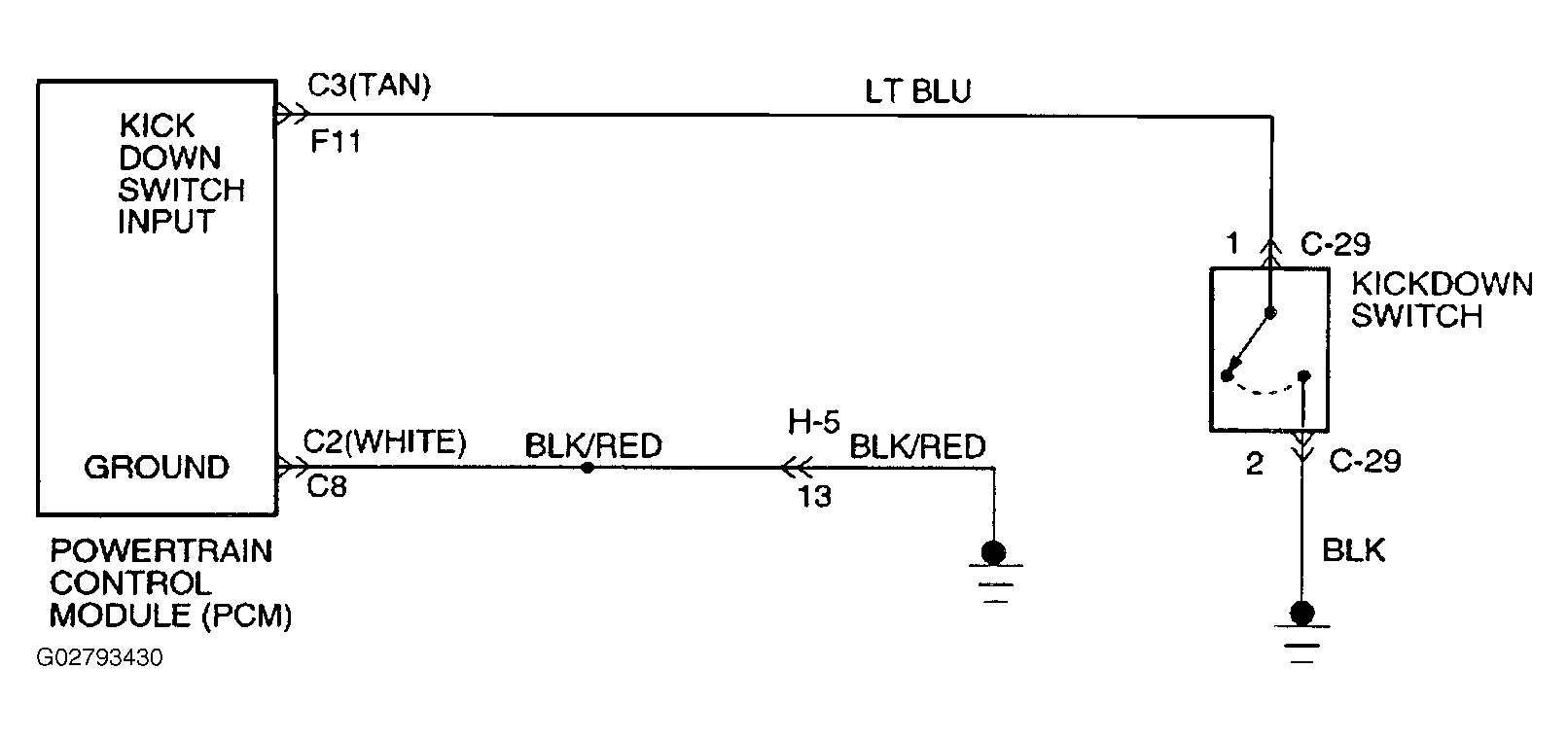

Fig 1: DTC P1835: Kickdown Switch Always On Circuit Diagram
G02793430Courtesy of ISUZU MOTOR CO.
