Section 10 (Transmission Control System (4L30-E) (HEC2.2L))
>>
DTC P0706: Transmission Range Switch (Mode Switch) Performance
>>
Test Description
>>
Range Switch Logic Table
Range Switch Logic Table
WARNING:
This page is about a different variant/trim than selected.

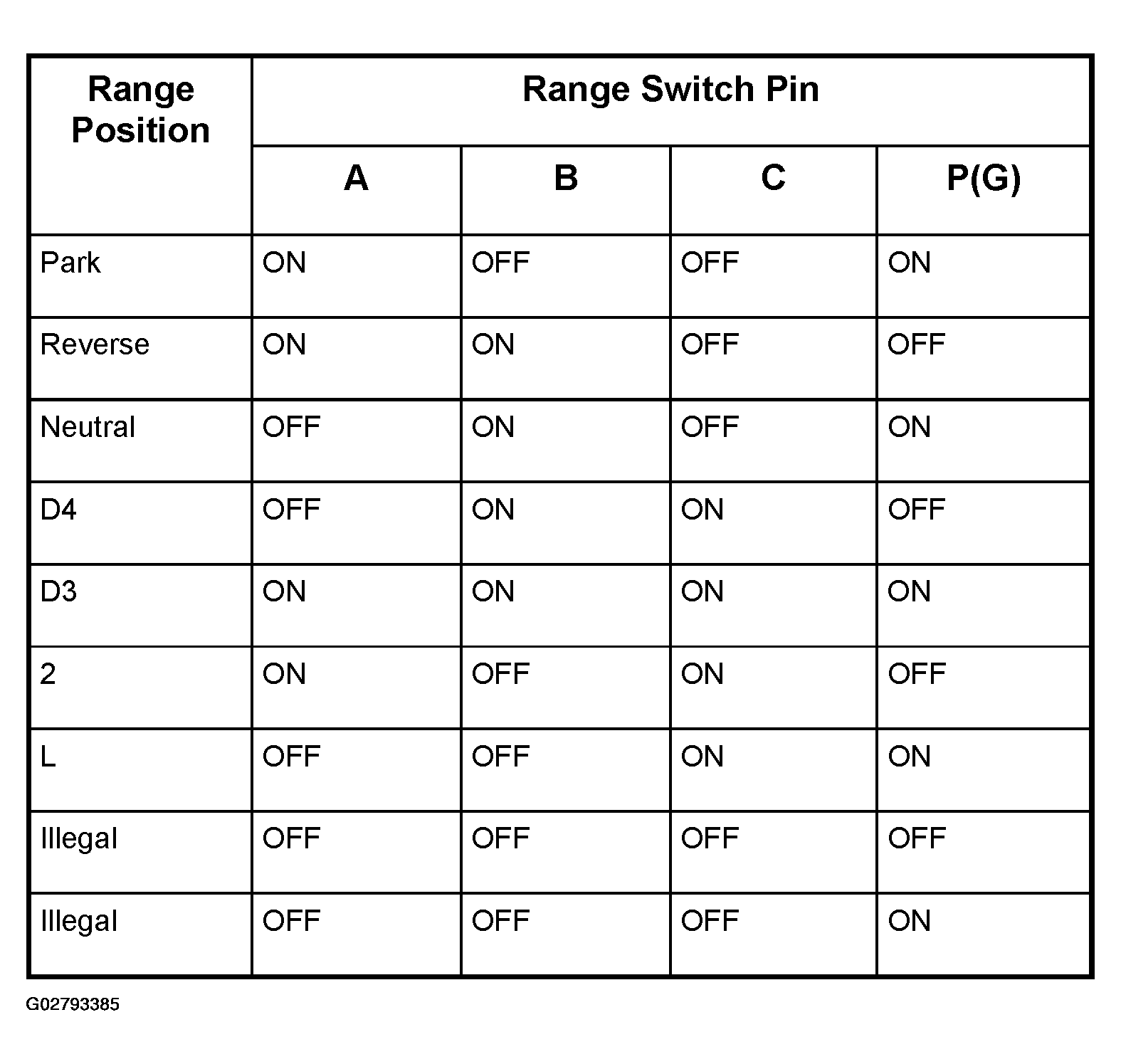

Fig 1: Range Switch Logic Table
Courtesy of ISUZU MOTOR CO.
