DTC P0706: Transmission Range Switch (Mode Switch) Performance: Notes

WARNING: This page is about a different variant/trim than selected.

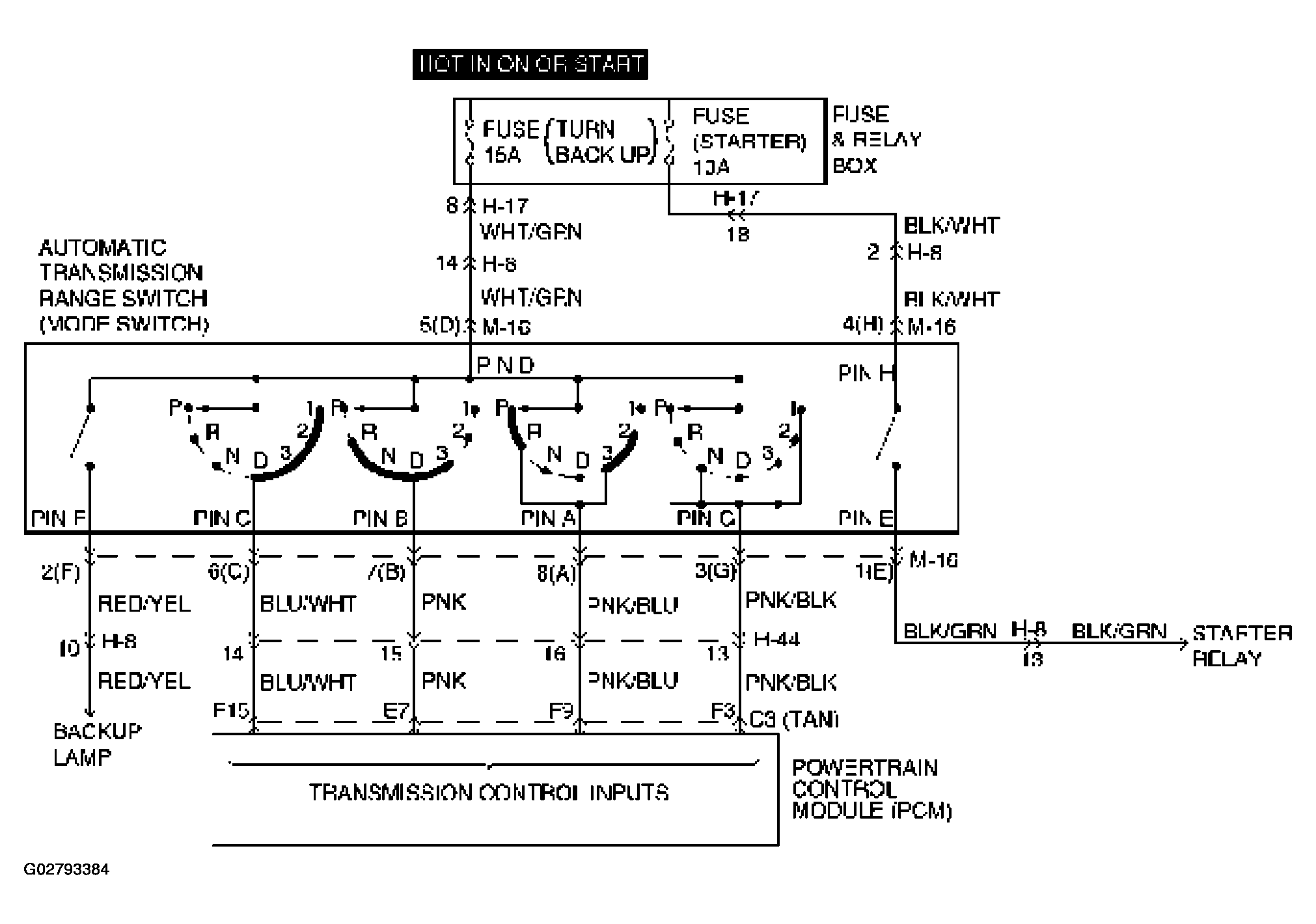

Fig 1: DTC P0706: Transmission Range Switch (Mode Switch) Performance Circuit Diagram
G02793384Courtesy of ISUZU MOTOR CO.
